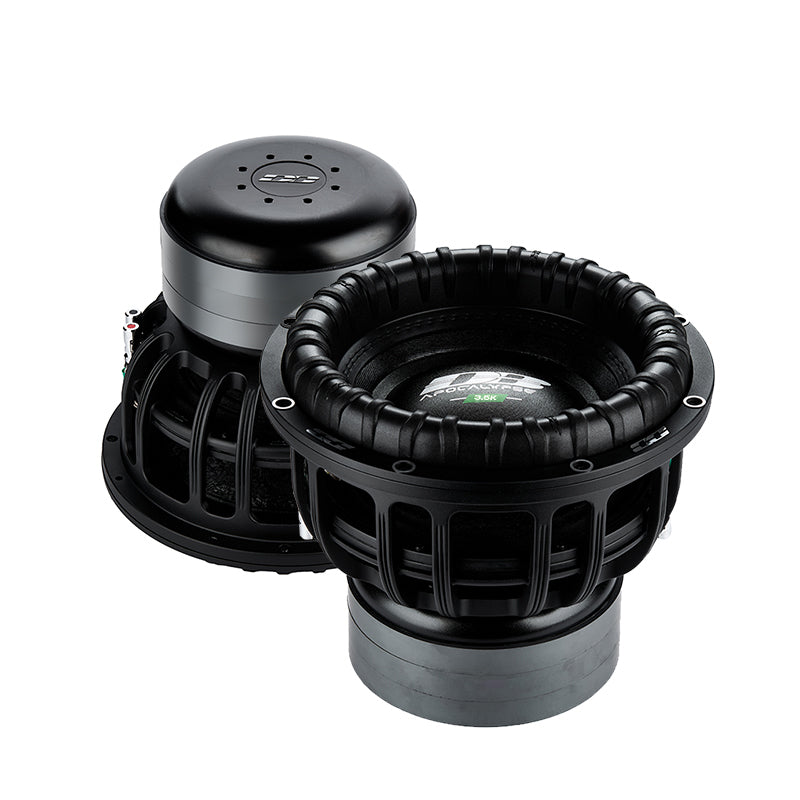

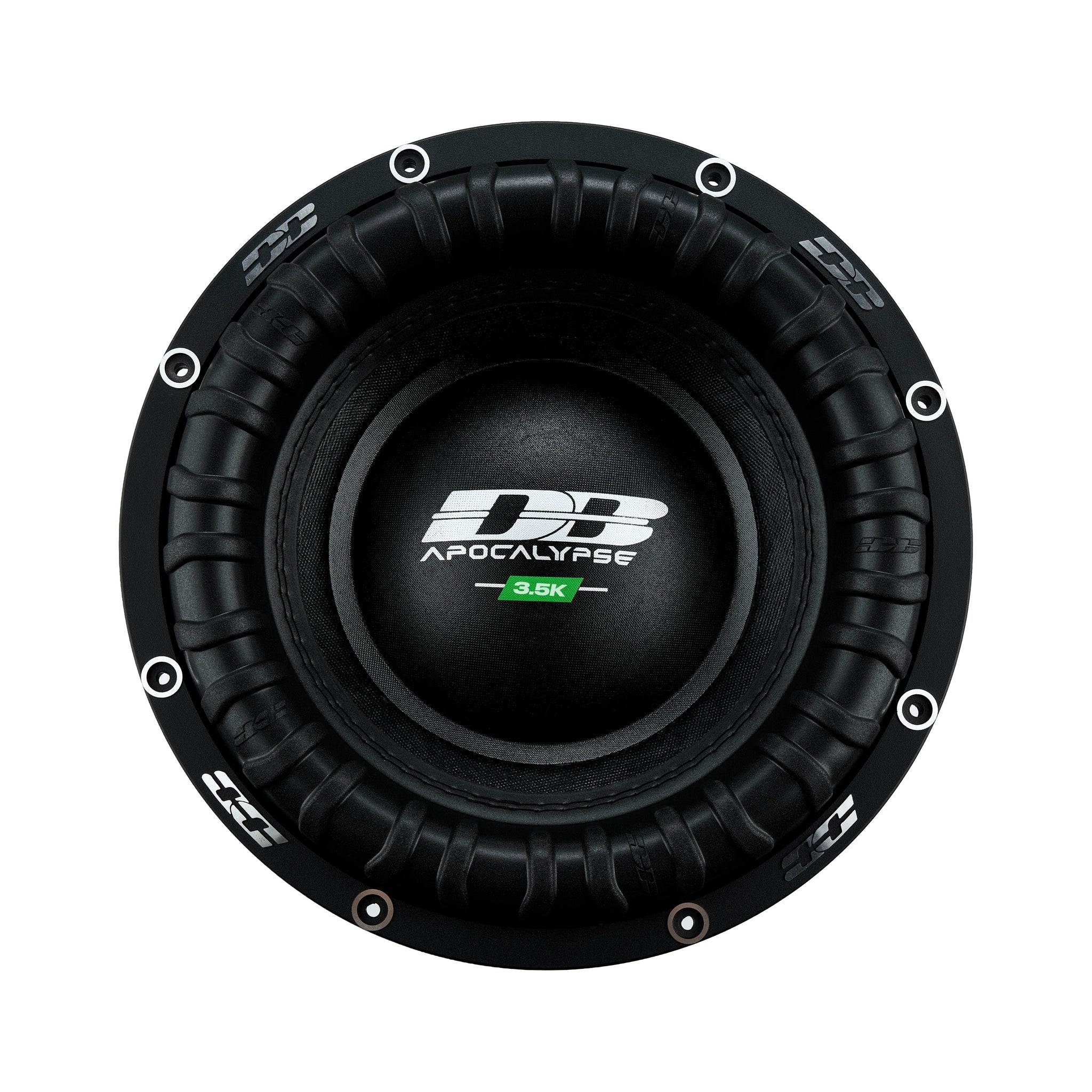

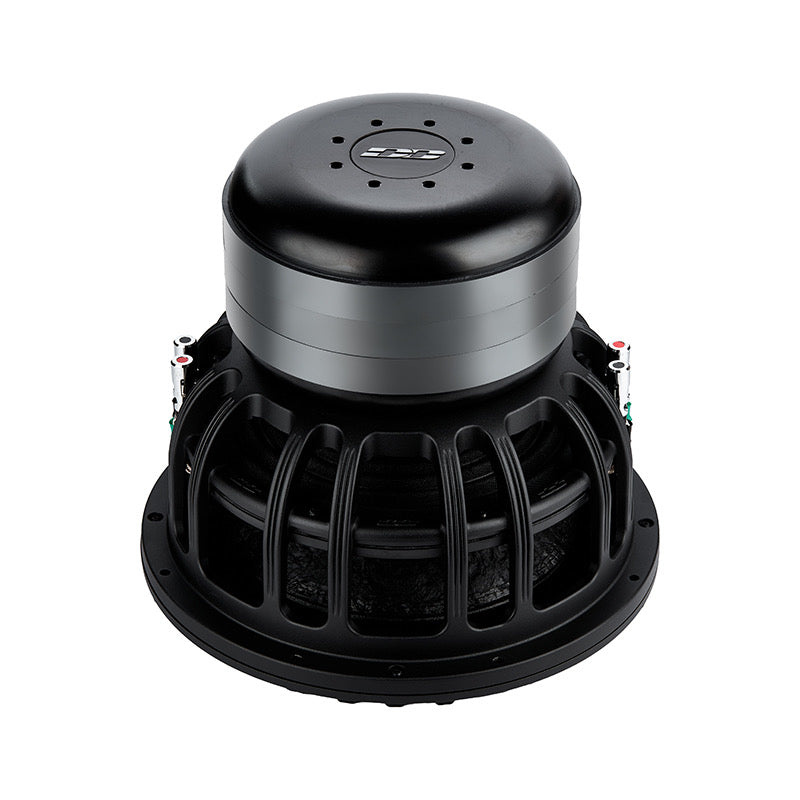

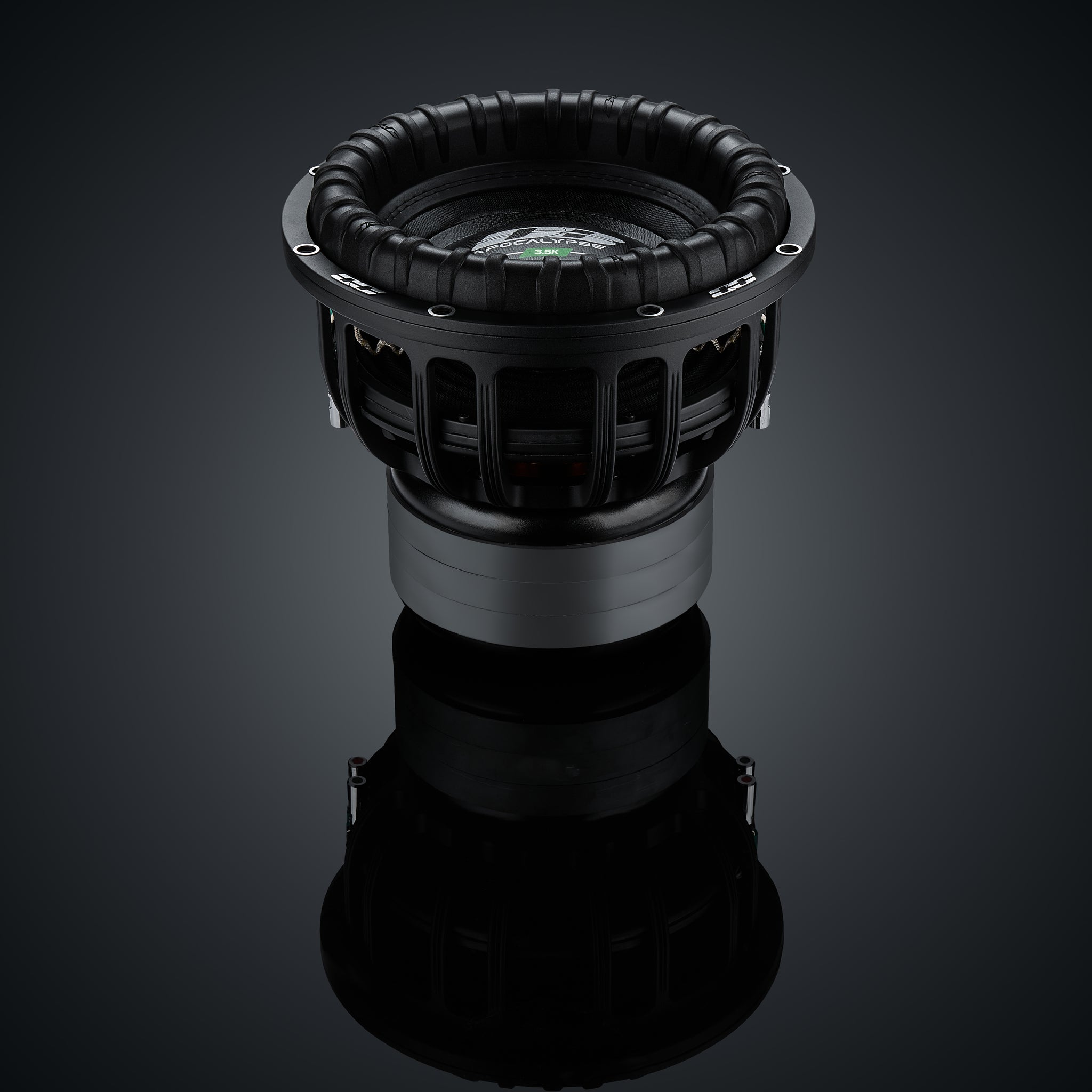

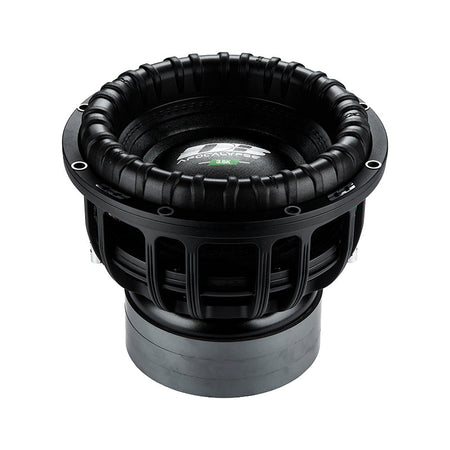

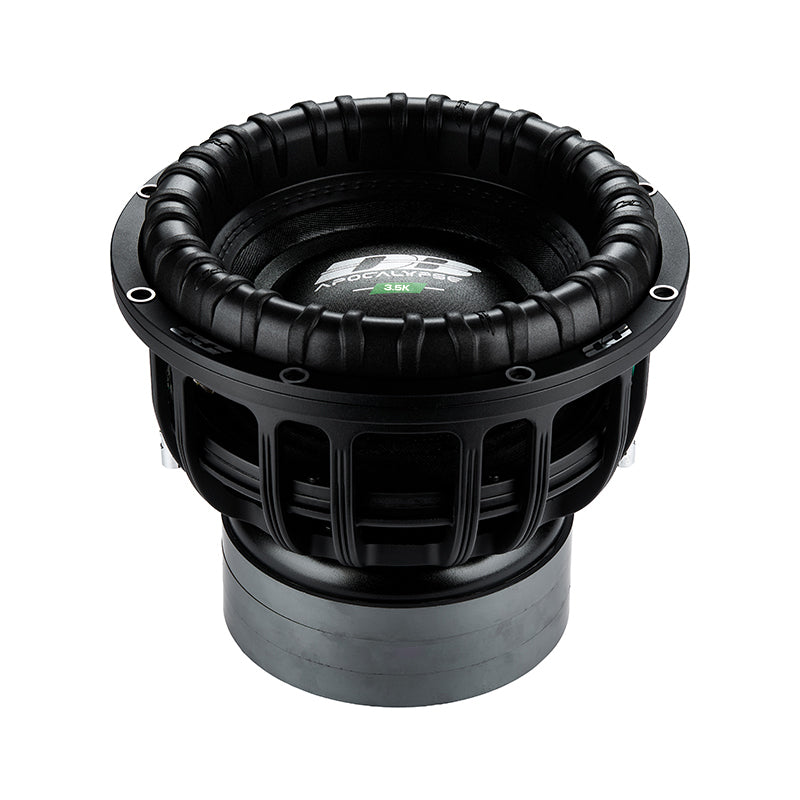

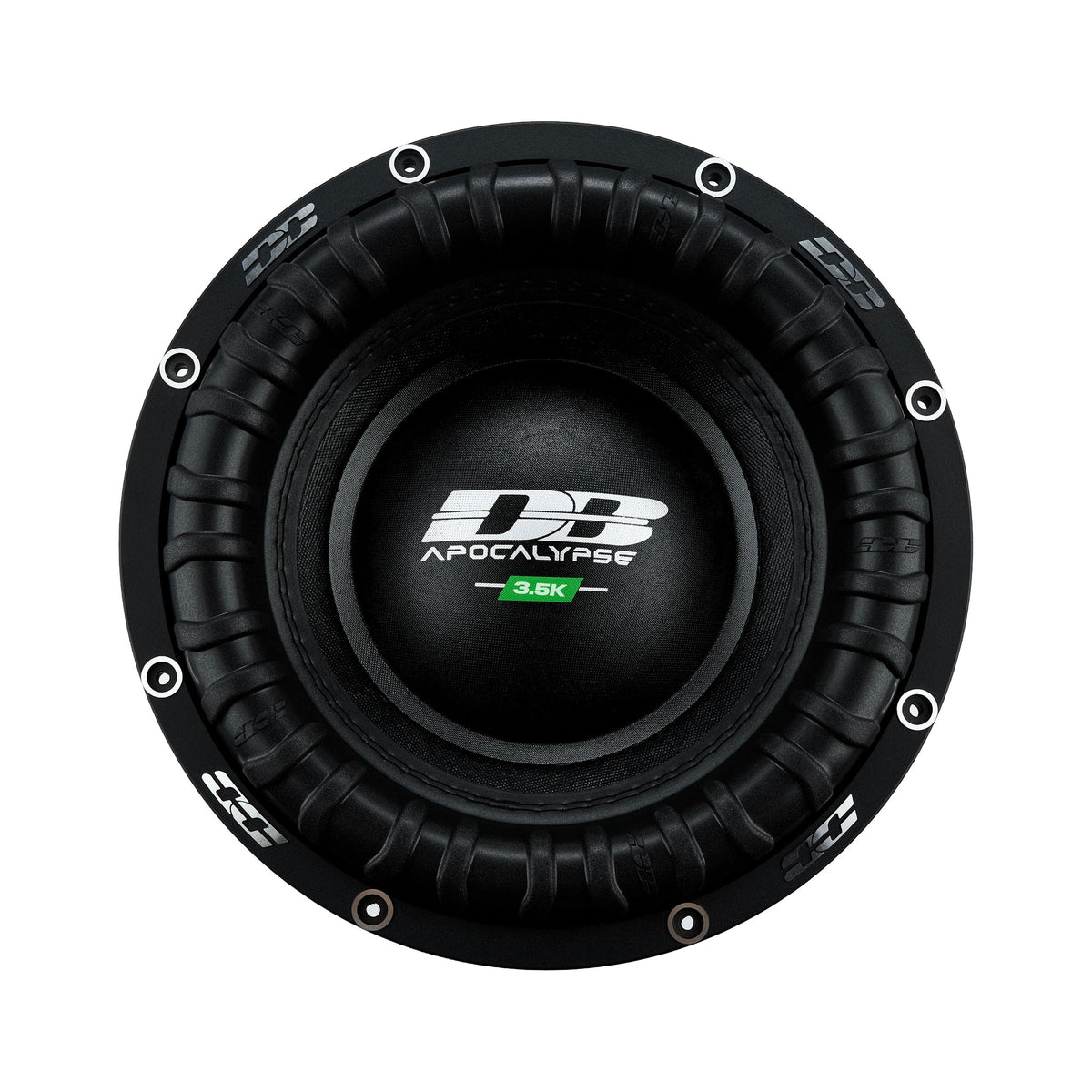

Deaf Bonce DB3.5K12D1 Apocalypse DB-3.5K 12" Subwoofer Dual 1 – 3500W RMS | 7000W Max
Unleash extreme bass performance with the Deaf Bonce DB3.5K12D1 Apocalypse 12" subwoofer, delivering a powerful 3500W RMS and up to 7000W max output. Featuring a dual 1-ohm voice coil design, this high-performance sub is built for deep, accurate low-frequency response and competition-level sound pressure. Engineered with premium materials for durability and efficiency, it’s the perfect upgrade for serious car audio systems that demand hard-hitting, clean, and consistent bass. Available in D1 / D2.
Features:
- 3500W RMS / 7000W Max Power – Delivers extreme high-output bass performance
- 12" High-Excursion Design – Produces deep, hard-hitting low-frequency response
- Dual 1-Ohm Voice Coil (D1) – Optimized for powerful, flexible system configurations
-
Competition-Grade Build – Engineered for durability, heat resistance, and long-term reliability
Specifications:
Model
DB-3.5K 12" D1 / D2
Size
12"
Materials & Construction
Surround: Foam
Cone: Pressed Paper
Frame: Aluminum
Magnet: Ferrite
Power Handling
RMS Power: 3,500 W
Max Power: 7,000 W
Performance
Frequency Response: 20 – 80 Hz
SPL: 85.5 / 85.2 dB
Xmax: 25 mm
Voice Coil & Electrical
Voice Coil Size: 3"
Voice Coil Wire: PIAL
Impedance: 1+1 / 2+2 Ohm
Re: 0.7+0.7 / 1.4+1.4 Ohm
T/S Parameters
Fs: 31 / 32 Hz
Vas: 25.3 / 24.9 L
Qts: 0.41 / 0.48
BL: 19 / 23.7
UPC: 4650185712111
