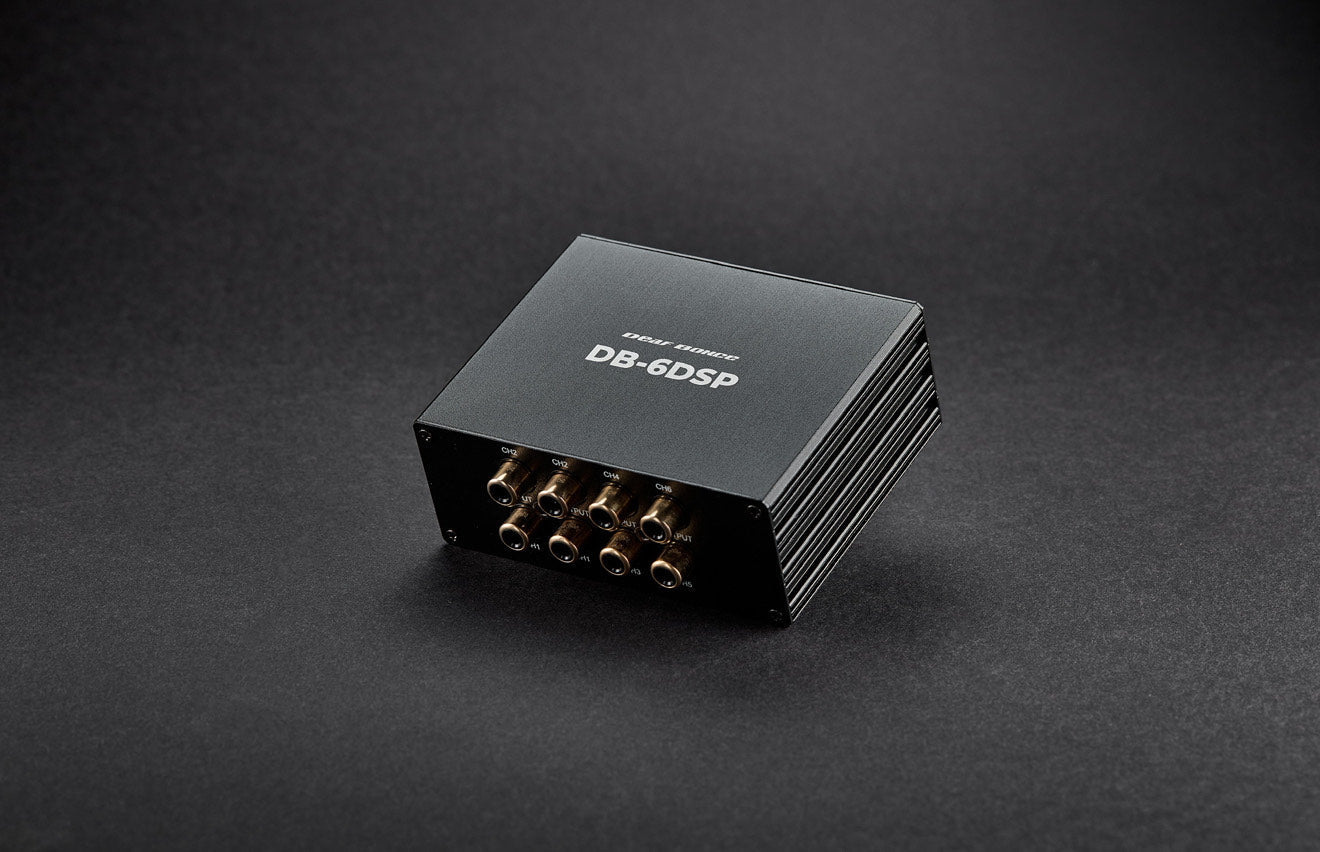

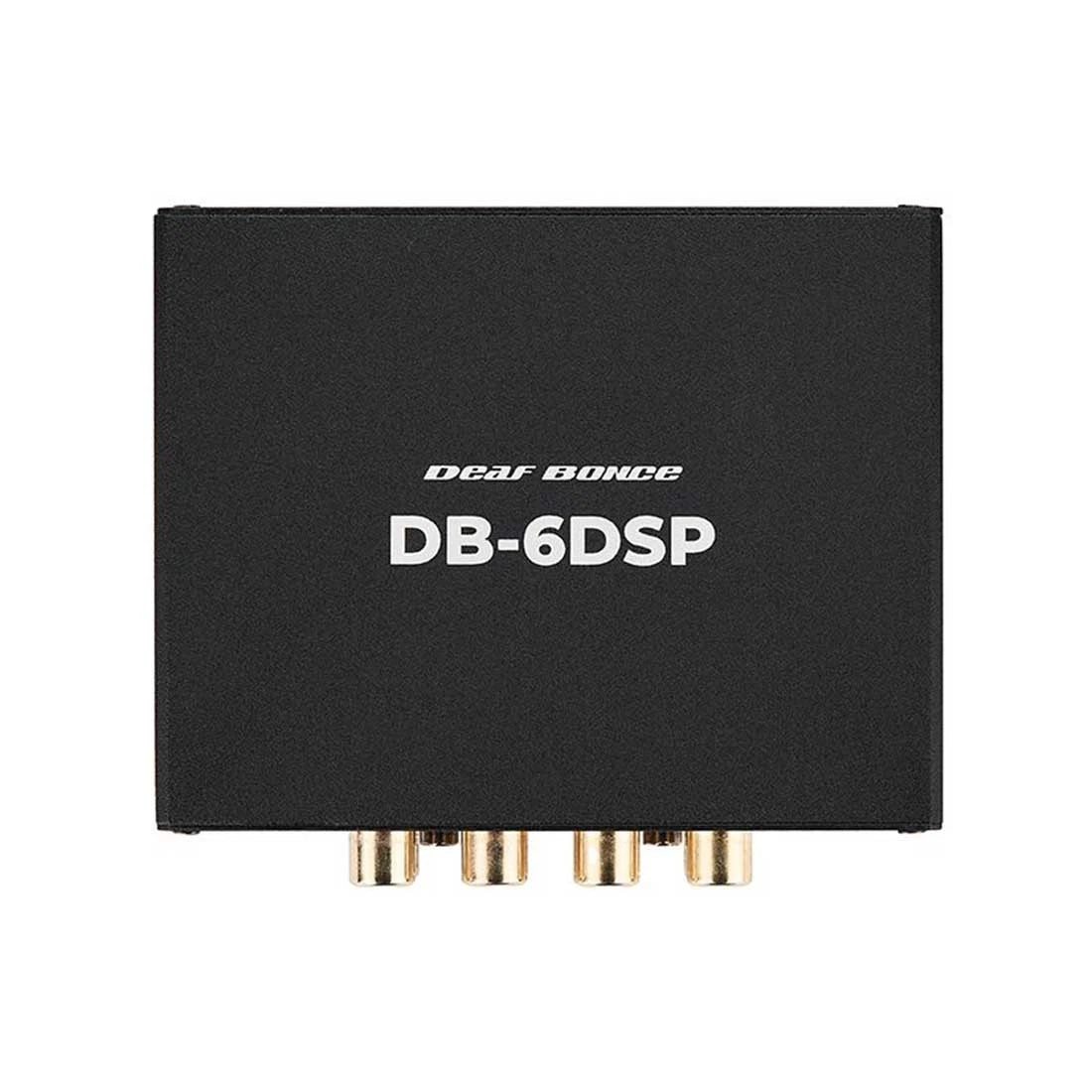

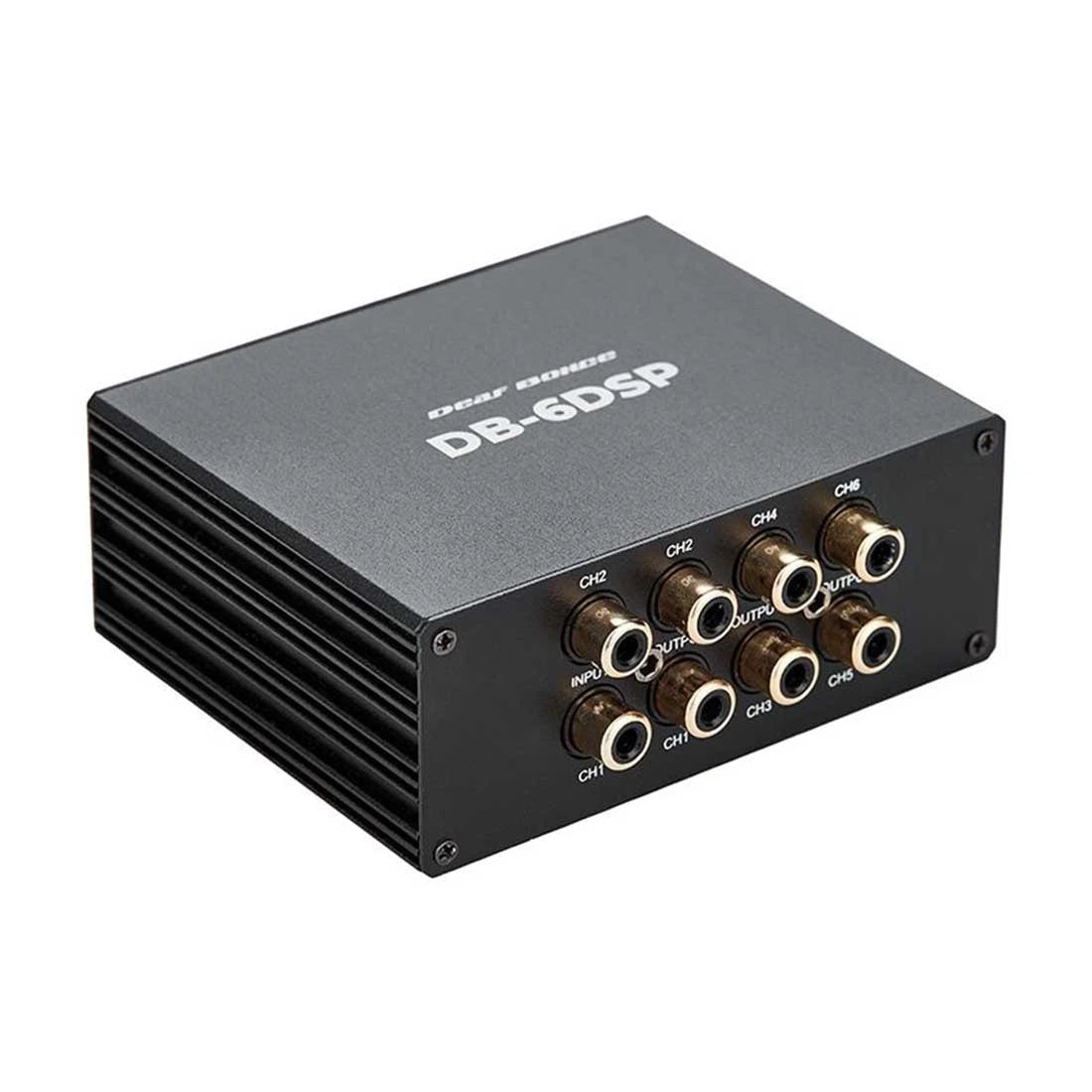

Deaf Bonce DB‑6DSP 6‑Channel Car Audio DSP Processor with Bluetooth Tuning
Boost your car audio clarity with the Deaf Bonce DB‑6DSP, a 6‑channel compact DSP processor featuring Bluetooth control, 31‑band parametric EQ, adjustable crossovers, phase shifting, optical input, and flexible high/low‑level inputs — perfect for customizing sound in any vehicle audio setup.
Features:
-
6-Channel DSP Tuning: 31-band parametric EQ with adjustable crossovers (20–20,000 Hz) for precise sound control.
-
Bluetooth Connectivity: Wireless app tuning and music streaming with SBC/AAC support.
-

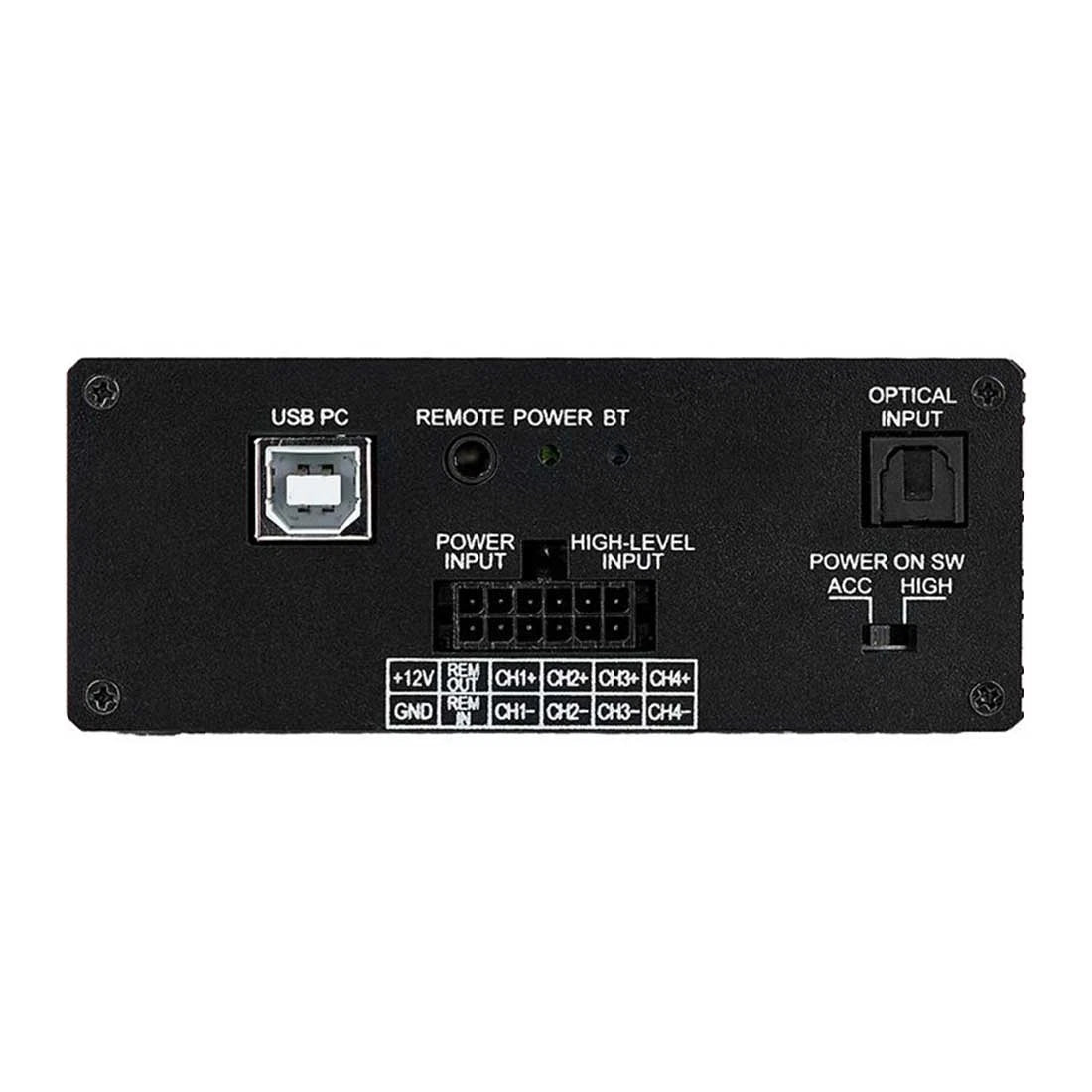

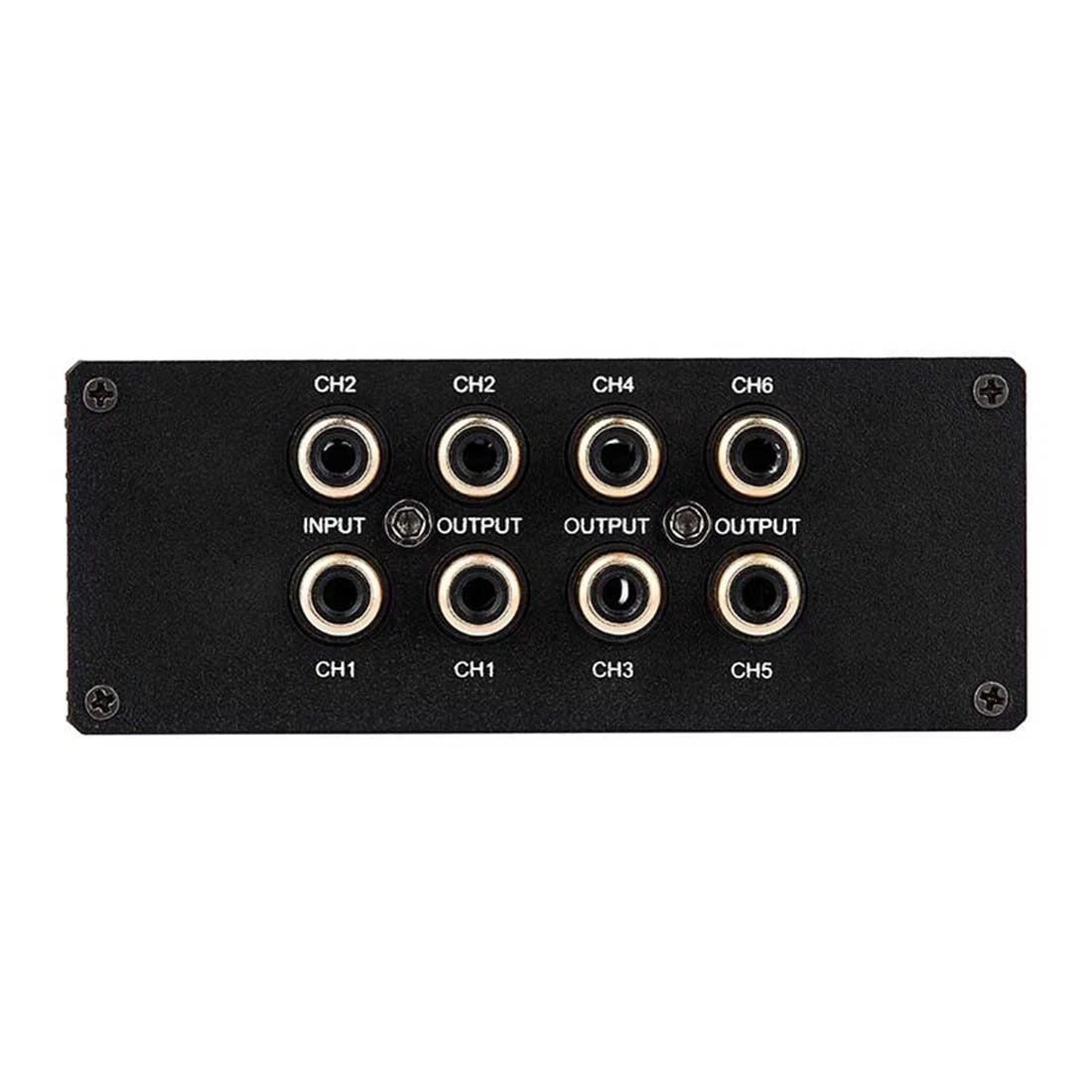

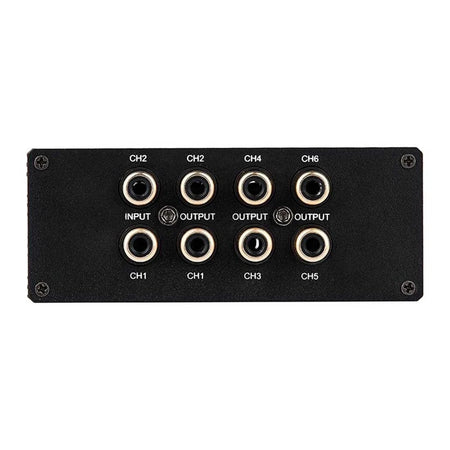

Flexible Inputs/Outputs: 4 high-level inputs, 2 RCA inputs, 6 RCA outputs, plus optical input.
-
Advanced Time Alignment: Up to 678.6 ms delay for improved soundstage and clarity.
Specifications:
Model: DB-6DSP
Input Sensitivity (Low Level): 0.48 – 1.16 V
Input Sensitivity (High Level): 6 – 36 V
High Pass Filter: 20 – 20,000 Hz
Low Pass Filter: 20 – 20,000 Hz
Crossover Slope: 6 – 48 dB/Oct
Phase Shifter: 0° / 180°
Frequency Response: 20 – 20,000 Hz
Signal-to-Noise Ratio (Master Inputs): ≥94 dB
Signal-to-Noise Ratio (Optical Input): ≥95 dB
Time Alignment Delay: 0 – 678.6 ms / 0 – 20.01 ms
Time Alignment Distance: 0 – 269.7 cm (0 – 106.2 in)
Equalizer: 31-band parametric EQ
Bluetooth: Yes (Settings + Music, SBC & AAC audio)
Automatic Turn On/Off: ACC or high-level input signal
High-Level Inputs: 4
RCA Inputs: 2
RCA Outputs: 6
Optical Input: Yes
Input Terminal Connection: 22 AWG
Working Voltage: 10 – 17 V
UPC: 4650185710179
