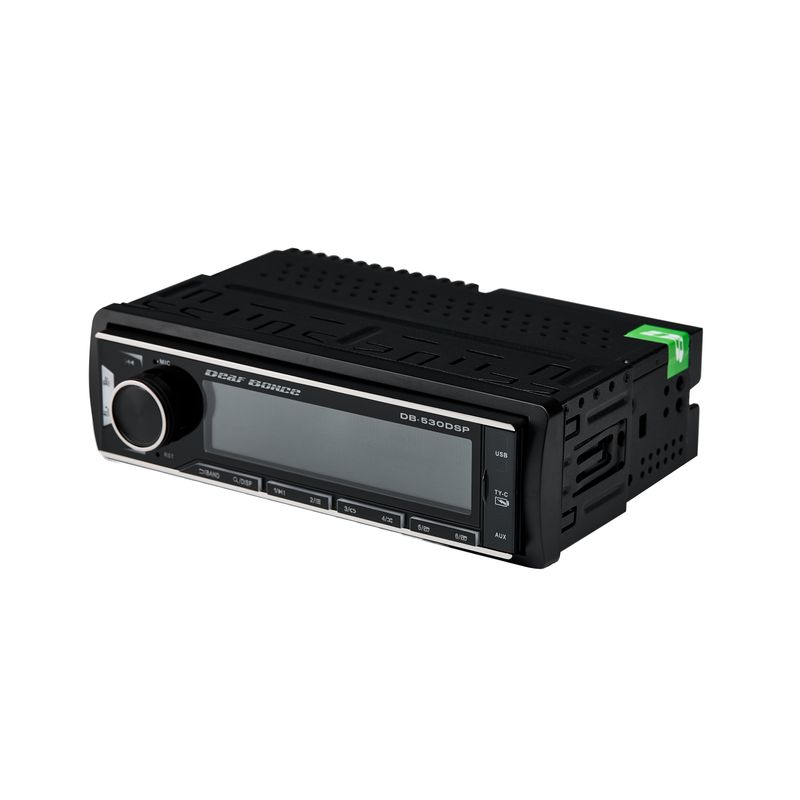

Deaf Bonce DB-530DSP Digital Signal Processor, 4x25 W RMS at 4 Ohms, 8 RCA outputs, USB Ports, Aux Input
The Deaf Bonce DB-530DSP is a high-performance digital signal processor that delivers 4x25 W RMS at 4 Ohms for clear and robust sound. Its advanced DSP technology ensures precise audio tuning, while versatile connectivity options, including 8 RCA outputs, USB ports, and an AUX input, make it easy to integrate into various audio systems. The compact, lightweight design allows for easy installation in different setups.
Features:
- High Power Output: Delivers 4x25 W RMS at 4 Ohms, ensuring robust and clear sound quality.
- Advanced DSP Technology: Provides precise audio tuning and customization for optimal sound performance.
- Versatile Connectivity: Includes 8 RCA outputs, USB ports, and an AUX input for seamless integration with various audio systems.
- Compact Design: Lightweight and easy to install, making it suitable for different setups.
Specifications:
|
Power RMS 4 Ohm |
4x25 W |
|
Radio tuner type |
AM, FM, RDS |
|
Number of RCA outputs |
8 |
|
Number of radio stations |
18 FM, 12 AM |
|
AUX input |
3.5 mm mini-jack |
|
Card reader |
ME. 20 Sonly for models DB 510DSP and |
|
USB ports |
USB Type-A + USB charging port (5V, 1A) |
|
Supported audio playback formats |
MP3, WMA, AAC, FLAC, WAV |
|
Head Unit steering wheel control buttons learning (SWC) |
Yes |
|
Hands-Free support |
Yes |
|
CONNECTION |
|
|
Working voltage |
10-17 V |
|
Input terminal connection |
16 AWG |
|
Output terminal connection |
20 AWG |
|
Automatic turn on/off |
ACC |
|
Front panel backlight type |
ARGB, 7 colors |
|
Quantity of backlight zones |
2 |
|
Information screen type |
VA LCD |
|
Integrated fuse |
15A |
|
AUDIO |
 |
|
Built in amplifier class                        AB |
|
|
Number of RCA outputs |
8 |
|
Number of full range RCA outputs |
6 |
|
Number of subwoofer RCA outputs |
2 |
|
RCA output voltage |
up to 4.5 V |
|
Bluetooth profile |
A2DP |
|
Frequency response for full range channels |
20 Hz- 20 kHz |
|
Frequency response for subwoofer channels |
20 Hz- 800 Hz |
|
Signal to noise ratio |
≥80 dB |
|
Minimum permissible load impedance on the single channel |
4 Ohm |
Â
|
CROSSOVER |
|
|
Filter types for full range channels |
LPF, HPF |
|
Filter types for subwoofer channels |
LPF, HPF |
|
Crossover frequency for full range channels |
30 H2 - 12.5 KHZ |
|
Crossover frequency for subwoofer channels |
20 Hz- 800 Hz |
|
Filter slope for full range channels |
6-24 dB/Oct |
|
Filter slope for subwoofer channels |
6-24 dB/Oct |
|
TIME ALIGNMENT |
|
|
Time alignment, distance |
0 - 642 cm / 0 - 240 inch |
|
Time alignment, delay |
0 - 18 ms |
|
Time alignment, step |
0.1 ms, 3 cm, 1 inch |
|
SIZE |
 |
|
Size (LxWxH) |
188x58x138 mm |
|
Size (LxWxH)| |
7.4x2.28x5.43 inch |
