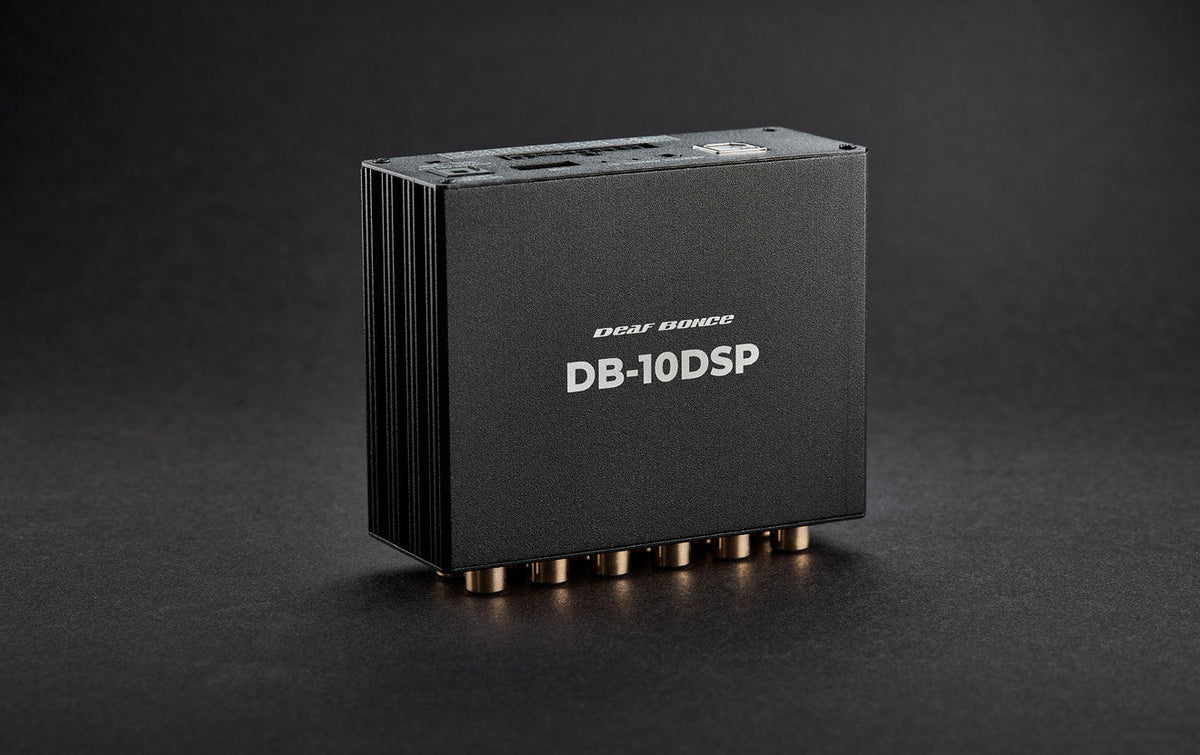

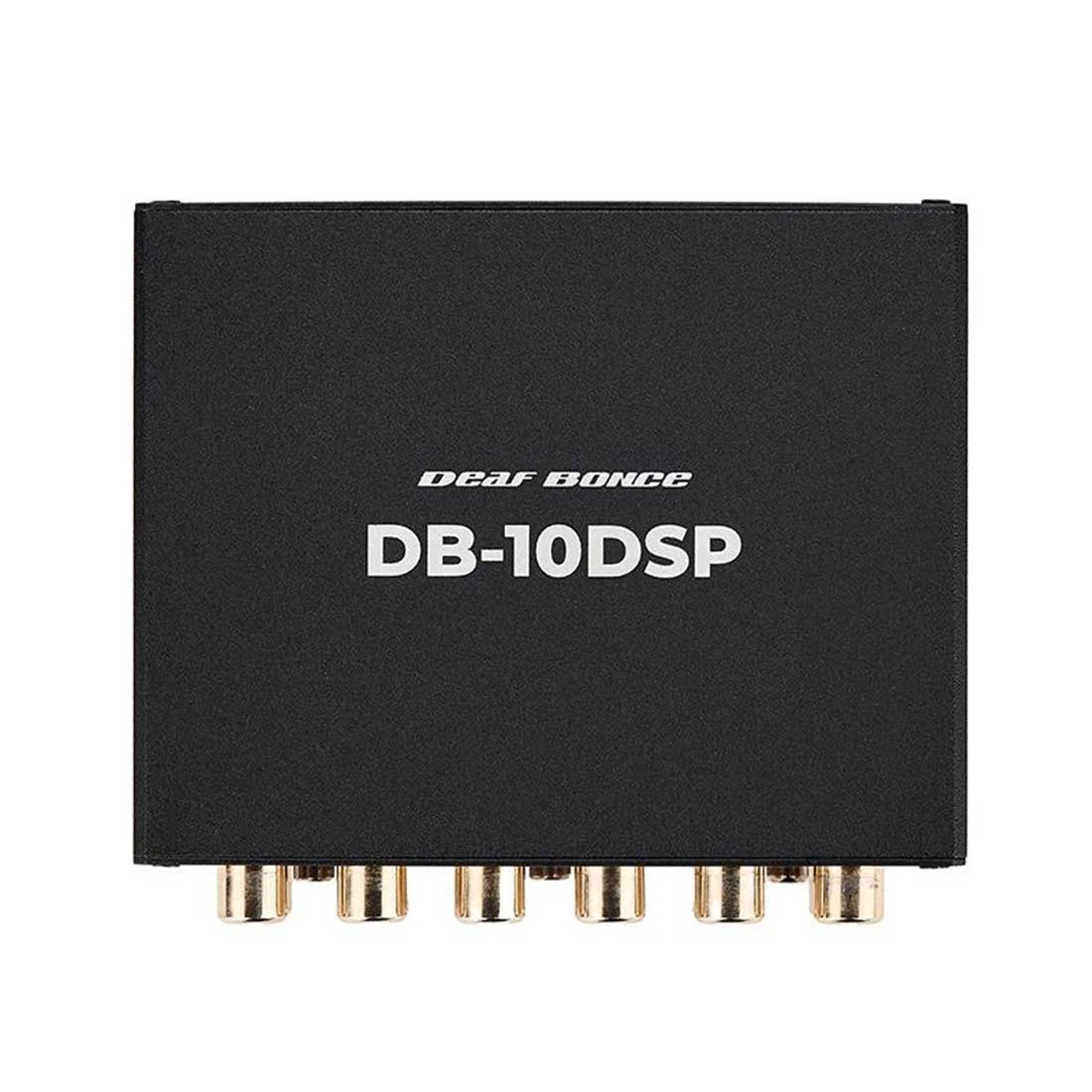

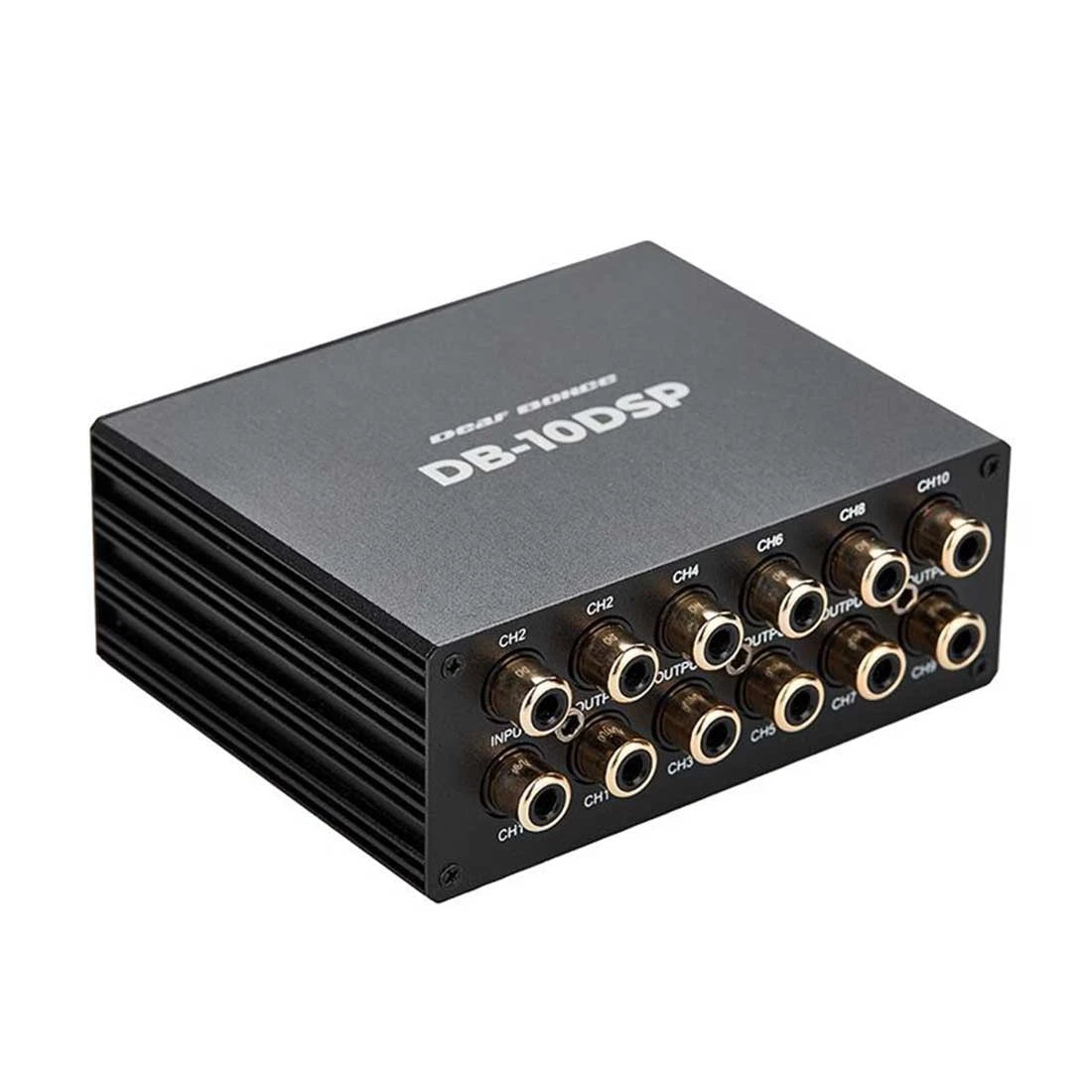

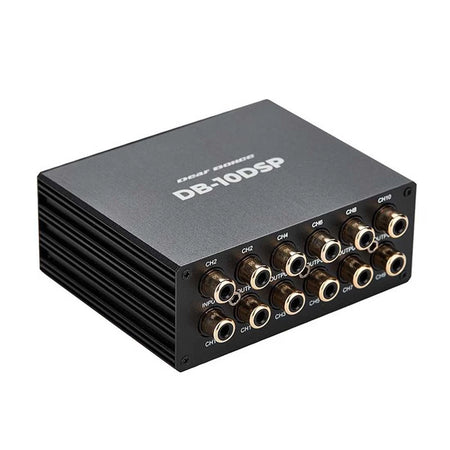

Deaf Bonce DB‑10DSP 10‑Channel Car Audio DSP | Bluetooth Digital Signal Processor
Enhance your car audio system with the Deaf Bonce DB‑10DSP, a 10‑channel compact DSP digital signal processor with Bluetooth tuning, 31‑band EQ, adjustable crossovers, time alignment, and optical input. Perfect for tuning and optimizing speakers & amps in any vehicle.
Features:
- 10‑Channel DSP Processing: Advanced digital signal processor with 10 channels for tuning full car audio systems.
- Comprehensive Tuning Tools: 31‑band parametric EQ, adjustable crossovers, and up to ~678 ms time alignment for precise sound control.
- Bluetooth Connectivity: Built‑in Bluetooth for wireless music playback and app‑based tuning (supports SBC, AAC, aptX HD).

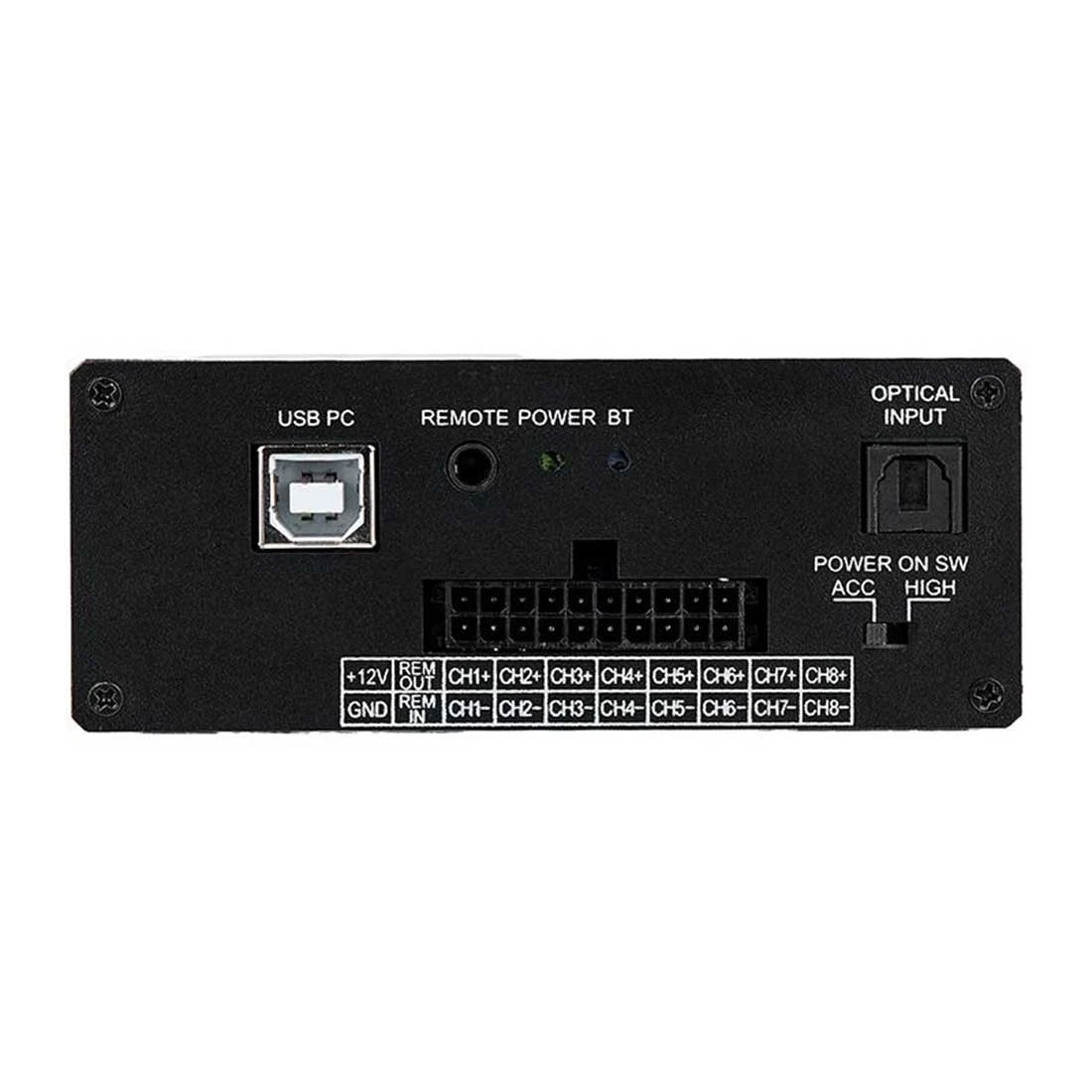

- Versatile Inputs & Outputs: Supports high‑level, RCA, and optical inputs with 10 RCA outputs for flexible system integration.
Specifications:
Model: DB‑10DSP
Input Sensitivity (Low-Level Inputs): 0.38 – 0.72 V
Input Sensitivity (High-Level Inputs): 6 – 36 V
High Pass Filter: 20 – 20,000 Hz
Low Pass Filter: 20 – 20,000 Hz
Crossover Slope: 6 – 48 dB/Oct
Phase Shifter: 0 ° / 180 °
Frequency Response: 20 – 20,000 Hz
Signal-to-Noise Ratio (Master Inputs): ≥ 98 dB
Signal-to-Noise Ratio (Optical Input): ≥ 100 dB
Time Alignment Delay: 0 – 678.6 ms / 0 – 20.01 ms
Time Alignment Distance: 0 – 269.7 cm
Equalizer: 31-band parametric equalizer
Bluetooth: Yes (Settings, Music – SBC, AAC Audio, AptX HD Audio)
Automatic Turn On/Off: ACC, high-level input
Number of High-Level Inputs: 8
Number of RCA Inputs: 2

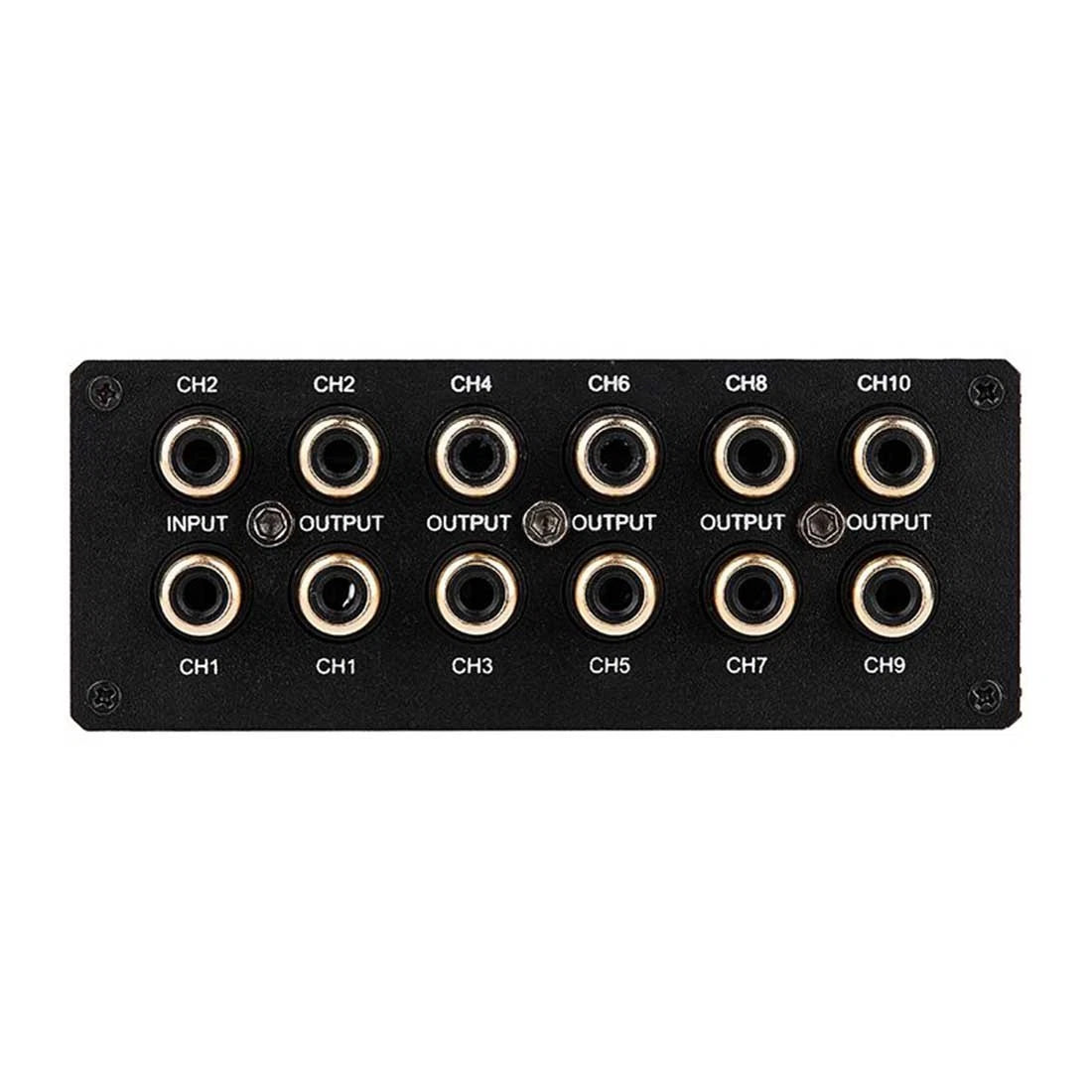

Number of RCA Outputs: 10
Optical Input: Yes
Input Terminal Connection (AWG): 22
Working Voltage: 10 – 17 V
Size (L × W × H): 97 × 84 × 38 mm / 3.82 × 3.31 × 1.5 inch
UPC: 4650185711589
