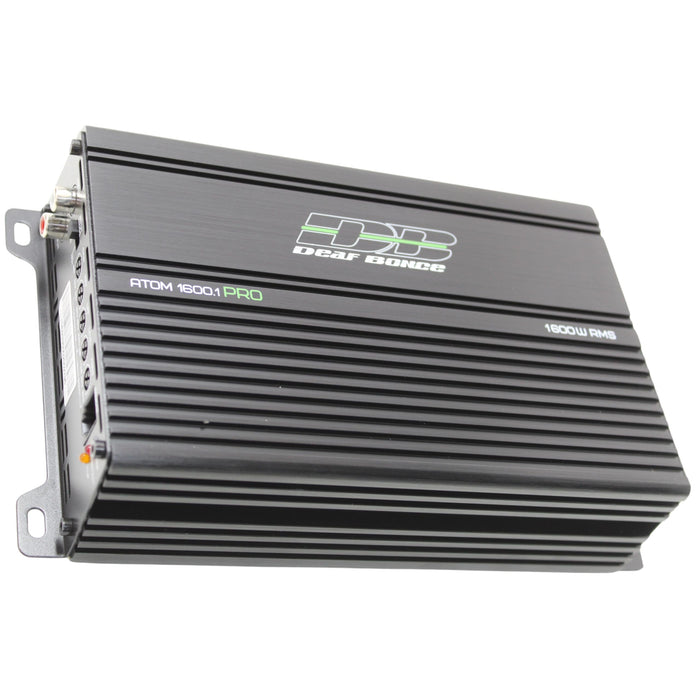

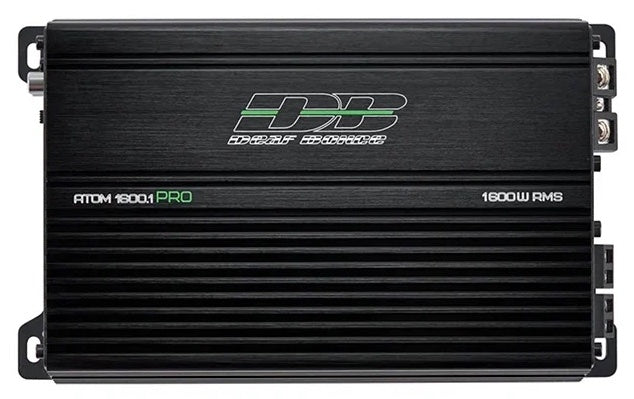

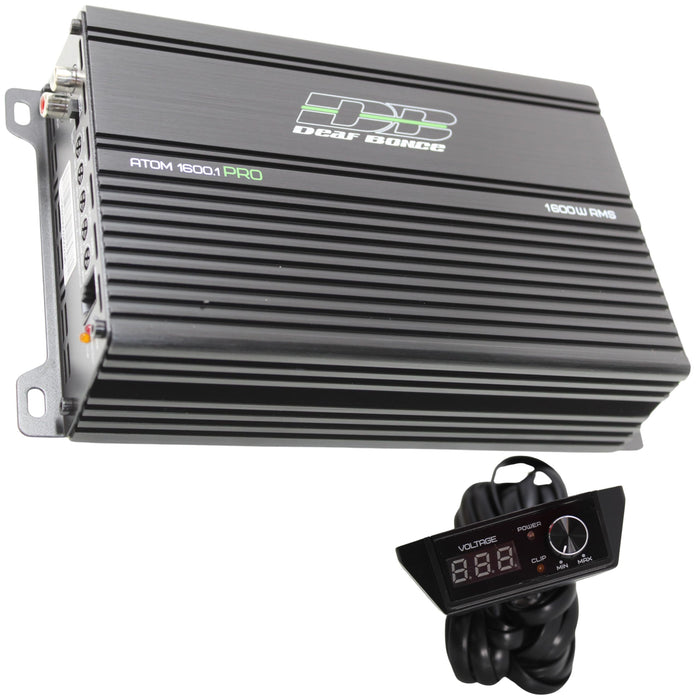

Deaf Bonce Apocalypse ATOM 1.6K Pro Ultra-Compact Amplifier AP-ATOM-1600.1-PRO
The Deaf Bonce Apocalypse ATOM 1600.1 PRO is a powerful and compact Class D monoblock amplifier designed to deliver exceptional performance for car audio systems. It provides a wide range of RMS power outputs: 550 watts at 4 ohms, 1010 watts at 2 ohms, and 1620 watts at 1 ohm, ensuring versatile and robust sound. The amplifier features a frequency response range from 10 Hz to 250 Hz, allowing for deep bass reproduction. It includes adjustable high-pass (10-50 Hz) and low-pass (40-250 Hz) filters, as well as bass level and frequency adjustments for precise sound customization. With a signal-to-noise ratio of 93 dB, the ATOM 1600.1 PRO ensures clear and distortion-free audio. Its compact dimensions (9 x 5.5 x 2.5 inches) make it easy to install in various locations within your vehicle.
Power RMS 4 Ohm: 550
Power RMS 2 Ohm: 1010
Power RMS 1 Ohm: 1620
Power RMS 1 Ohm: 1430
Crossover (dB/Oct): 12

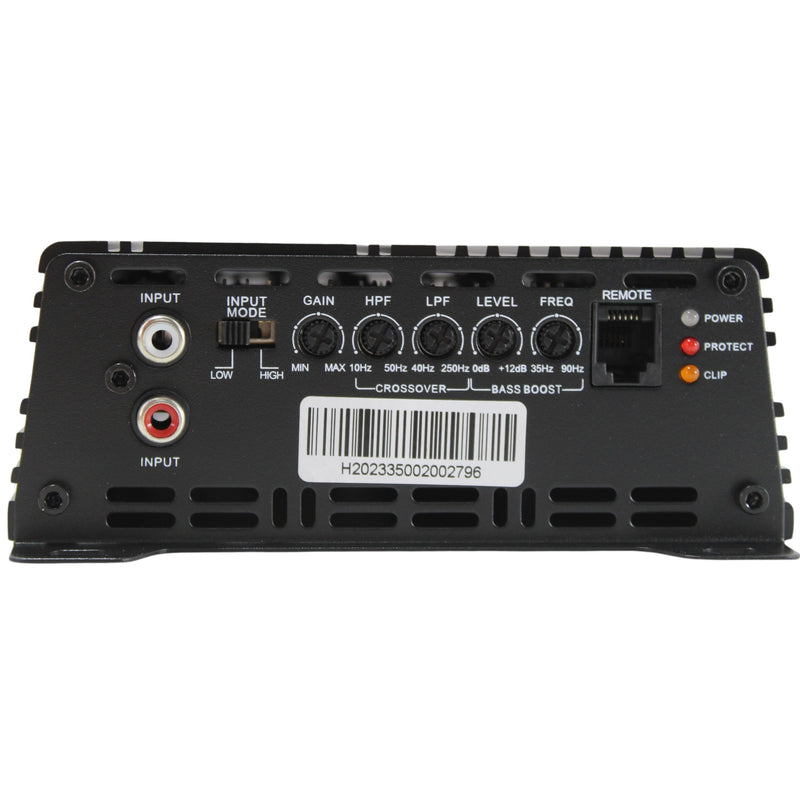

High Pass Filter: 10-50Hz
Low Pass Filter: 40-250Hz
Bass Level Adjustment: 0-12Hz
Bass Frequency Adjustment: 35-90Hz
Frequency Response: 10-250Hz
Input Sensitivity: 0.2-6V
Signal to Noise Ratio (dB): 93
Damping Factor: 140

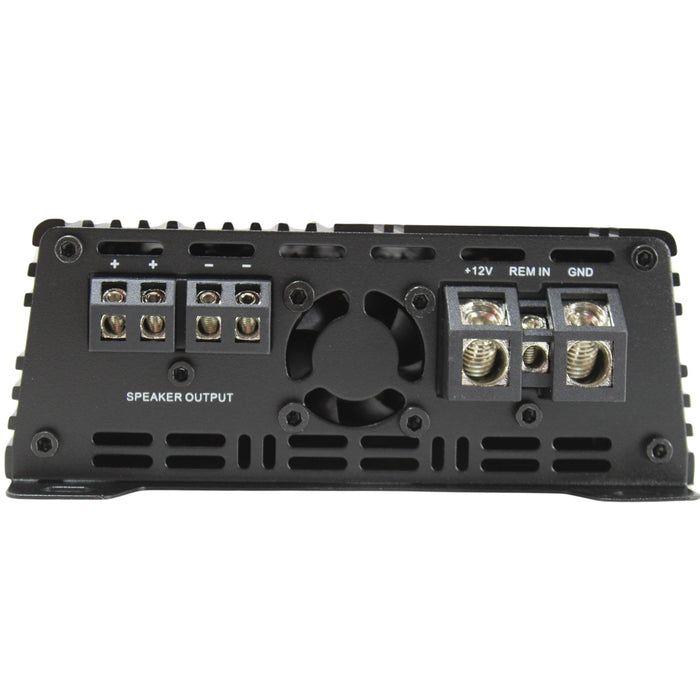

Input Terminal Connection(AWG): 4
Output Terminal Connection(AWG): 10
Working Voltage: 9-15
Minimum Permissible Load Impedance (Ohm): 1
| Specification | Details |
|---|---|
| Model | ATOM 1600.1 PRO |
| Amplifier Class | Digital Class D |
| Channels | 1 (Mono) |
| RMS Power @ 1 Ω (14.4 V) | 1600 W |
| RMS Power @ 1 Ω (12 V) | 1430 W |
| RMS Power @ 2 Ω | 1010 W |
| RMS Power @ 4 Ω | 550 W |
| Bridged? | N/A (mono amp) |
| Freq. Response | 10–250 Hz |
| Low-Pass Filter Range | 40–250 Hz |
| High-Pass Filter Range | 10–50 Hz |
| Crossover Slope | 12 dB/oct |
| Bass Frequency Adj. | 35–90 Hz |
| Bass Boost | 0–12 dB |
| Subsonic Filter | 10–50 Hz |
| Input Sensitivity | 0.2–6 V |
| Signal-to-Noise Ratio | ≥ 93 dB |
| Damping Factor | ≥ 140 |
| Minimum Load Impedance | 1 Ω |
| Input Terminal | 4 AWG |
| Output Terminal | 10 AWG |
| Operating Voltage | 9–15 V DC |
| Dimensions (L×W×H) | ~9 × 5.5 × 2.1 in (230 × 140 × 54 mm) |
| Weight | ~4–5 lb (≈2 kg) |
| UPC | 4650185709586 |
