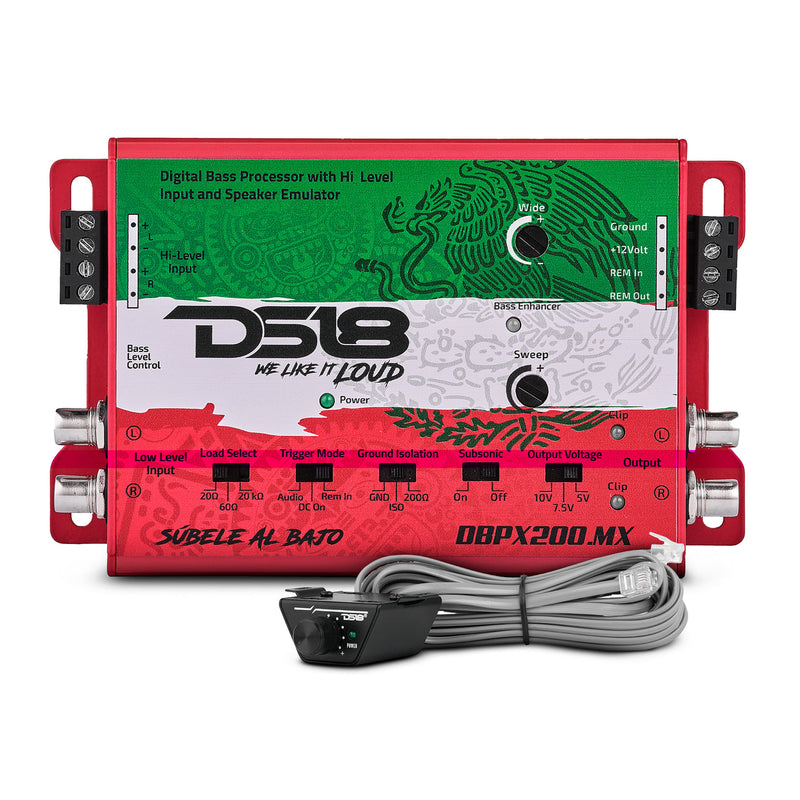

DS18 DBPX200.MX Digital Bass Processor With Hi to Low Signal Converter & Speaker Emulator - Mexico Design

In stock
SKU: DS-DBPX200.MX
(0)
Brand New with Manufacturer Warranty
Authorized Dealer
Free Shipping
Secure Payments
Regular price $199.95 USD
  • Digital Bass Restoration Processor
  • Hi to Low Converter / Speaker Emulator
  • 2 Channel Preamp Input / Output
  • Output Volts / Subsonic / Ground ISO / Trigger / Load Selectors
  • Remote Level Control w/ Bass and Level
  • Compact Design

DS18 DBPX200.MX


Digital Bass Processor With Hi to Low Signal Converter & Speaker Emulator

DS18’s DBPX200.MX is a powerful bass processor designed to deliver deep low frequencies that will revitalize your audio system.
The included balanced line level input and fully adjustable bass processor enhances low frequencies and volume from the original source. This means you can fine-tune your bass and volume with authority, ensuring you get the audio experience you’ve been dreaming of.

With hi-level speaker inputs for OEM integration, the DBPX200 seamlessly integrates with any existing car audio system. The dual knob dash mount remote control allows for convenient and easy bass and volume adjustments on the go, giving you full control over your system.
The DBPX200 operates at a voltage range of 9-16V and consumes only 0.18A of power. It is recommended to use a 1A fuse rating for optimal performance. The LED indicators on the knob and processor lights up to indicate power, bass enhancement, and clipping.
This DBPX200 also features an input load selector, subsonic filter, and selectable auto turn-on feature. The PCB with anti-corrosion coating ensures durability and longevity, while the compact design allows for easy installation in any application.
With its high-quality components and meticulous construction, the DBPX200 delivers exceptional audio performance. Making it a must-have upgrade for any car audio enthusiast. Order yours today and experience the DS18 difference.



GENERAL FEATURES

SKU
DBPX200
Operating Voltage
9-16V
Power Consumption
0.18A
Recommended Fuse Rating
1A
Power Input Terminal Size
16ga
LED Indicator
Power / Bass Enhancer
Ground Isolation Switch
Yes (GND/ISO/200?)
Hi-Level Speaker Input
Yes (2 Channels)
Auto Turn-on Function
Yes (Audio/DC)
Remote Turn-on (Input / Output)
Yes
Remote Level Control
Yes (Bass Enhancer/Level)
RCA Connector Type
Tiffany (Silver)
Housing Material
Aluminum
Body Color / Finish
Black


AUDIO SPECIFICATIONS

Frequency Response
10Hz-20kHz
S/N Ratio
95dB
THD
0.05%
Input Sensitivity (Low-Level)
<8.8V
Input Sensitivity (Hi-Level)
>15V
Input Impedance
20Kohms
Output Voltage
Selectable (5V/7.5V/10V)
Output Impedance
110ohms
Balanced Input Noise Rejection
>45dB
Stereo Separation
>50dB


CROSSOVER SECTION

Subwoofer LPF Frequency Cut-off
No (Full Range Signal)
Subwoofer Infrasonic Frequency Cut-off
Selectable (Off/50Hz)


BASS PROCESSOR SECTION

Gain
0~8.8V
Center Frequency (Sweep)
75Hz~120Hz
Q Factor (Wide)
1~4


EXTRA FEATURES

Compact Size to easy Installation for Any Applications
Yes
Surface Mount Component Technology
Yes
Quality Control Verification using Audio Precision Instruments
Yes
Remote Level Control with Clip Indicator
Yes


MEASUREMENTS

Overall Length
6" / 153mm
Overall Width
3.7" / 95mm
Overall Height
1.1" / 28mm
