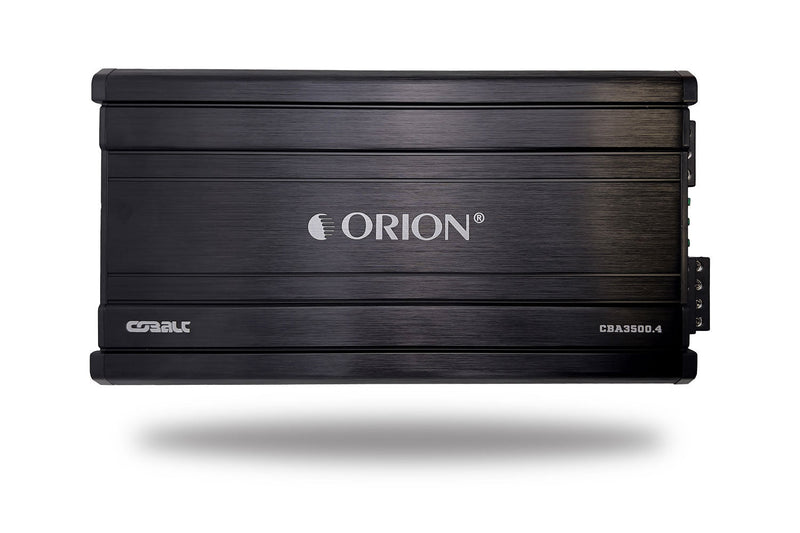

ORION CBA3500.4 COBALT Series 3500 Watts MAX 4-Channel Class A/B Amplifier
ORION CBA3500.4 COBALT Series 3500 Watts MAX 4-Channel Class A/B Amplifier
Experience the precision of Class A/B amplification, achieving a harmonious balance between efficiency and uncompromised sound quality. Immerse yourself in a symphony of sound with a maximum power output of 3500 Watts, delivering unparalleled auditory magnificence. The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance. Elevate your bass response with the adjustable bass boost feature, delivering impactful and resonant low frequencies. Equipped with protection circuitry, the amplifier ensures longevity by safeguarding against overheating and short circuits. Crafted with top-quality components, the amplifier guarantees reliable performance and long-lasting quality. The amplifier's design meticulously balances audio precision, power efficiency, and steadfast operation.
Features:
- All MOSFET Power Supply & Output Stage
- Heavy Gauge / High Current Custom Power and Speaker Terminals
- RCA Out Throughput
- 12dB Octave Low-Pass Filter
- Electronic Crossover Network
- Bass Boost Circuit
- Intelligent Power and Protection LED Indicator
- Soft Turn-on/Turn-off Turn-On Delay
- Fault and Protection Monitoring
- 4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage
Power Ratings:
Max Music Power 2500W
Power Terminal Management:
Positive Terminals: 1 x 4 AWG.
Negative Terminals: 1 x 4 AWG.
Remote Turn-ON Signal: 10 AWG.
Speaker Output Terminals: 10 AWG.
Specifications:
Frequency Response: 10Hz - 30kHz
- High Pass Crossover Continuously variable (50-1.2kHz)
- Low Pass Crossover Continuously variable (40-250Hz)
- Supply Voltage: 10 - 16V
- Input Impedance: 22kOhm - Signal to Noise Ratio: >90dB
- Bass Boost: 0/3/6dB Switch
- Variable Input Level Control: 0.2V - 6.0V
- Fuses: 90A recommended (3 x 30A ATC)
- Dimensions (L x W x H): 14.12" x 7.09" x 2.13" (359x180x54mm)
