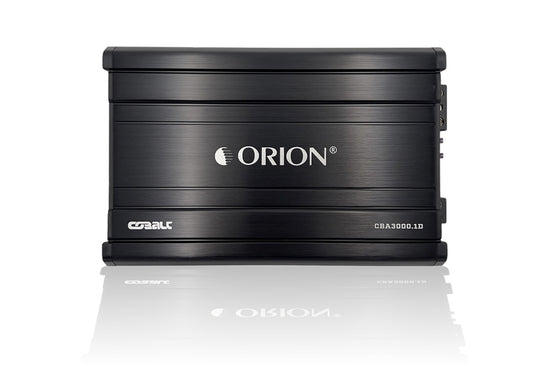

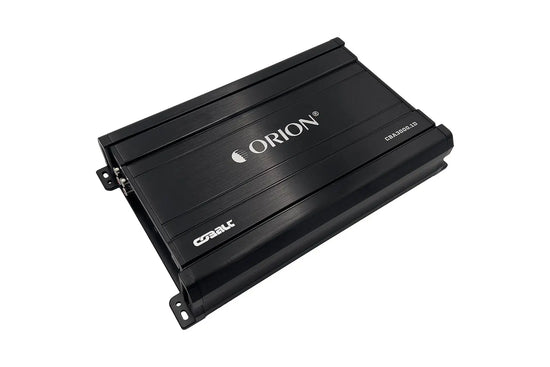

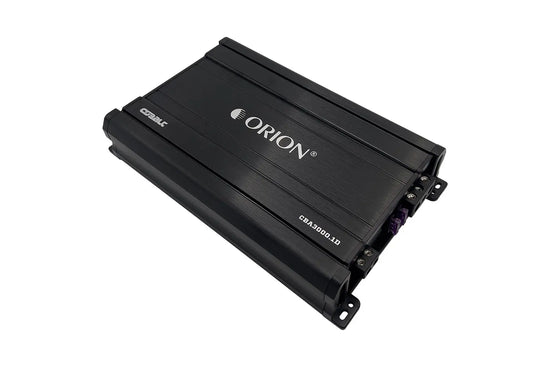

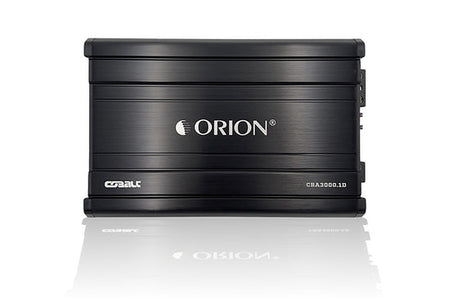

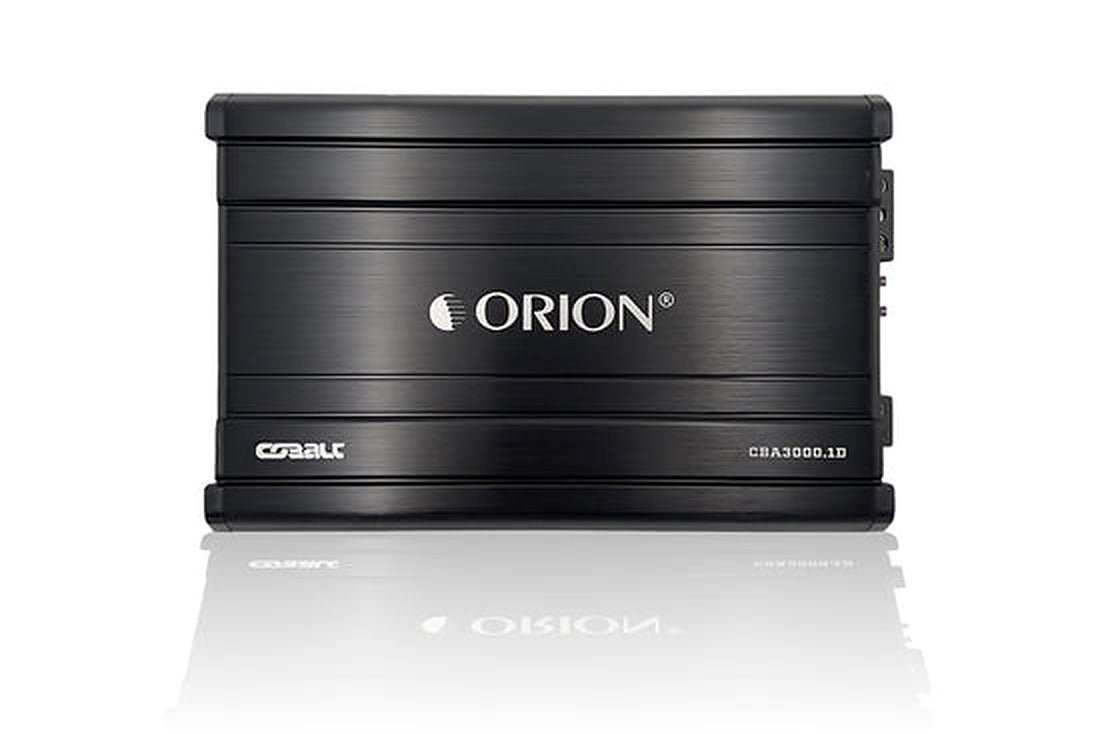

ORION CBA3000.1D COBALT Series 3000 Watts MAX 1-Channel Class D Amplifier
ORION CBA3000.1D COBALT Series 3000 Watts MAX 1-Channel Class D Amplifier
Embrace the efficiency and precision of Class D amplification for commanding and accurate sound reproduction. Immerse yourself in a realm of sonic splendor with a maximum power output of 3000 Watts, delivering a captivating auditory experience. The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance. Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes. Equipped with protection circuitry, the amplifier ensures longevity by guarding against overheating and short circuits. The amplifier's streamlined design ensures versatile installation options without compromising performance. Meticulously engineered for optimal audio precision, power efficiency, and steadfast operation.
Features:
- All MOSFET Power Supply & Output Stage
- Heavy Gauge / High Current Custom Power and Speaker Terminals
- 1-Ohm Stable

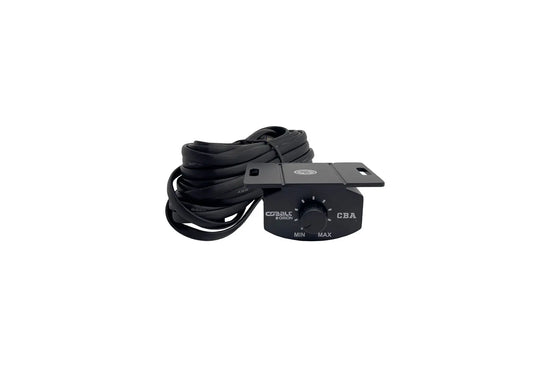

- Remote Gain Controller Included
- RCA Out Throughput
- 12dB Octave Low-Pass Filter
- Electronic Crossover Network
- Bass Boost Circuit
- Intelligent Power and Protection LED Indicator
- Soft Turn-on/Turn-off Turn-On Delay
- Fault and Protection Monitoring
- 4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage
Power Ratings:
Max Music Power 3000W

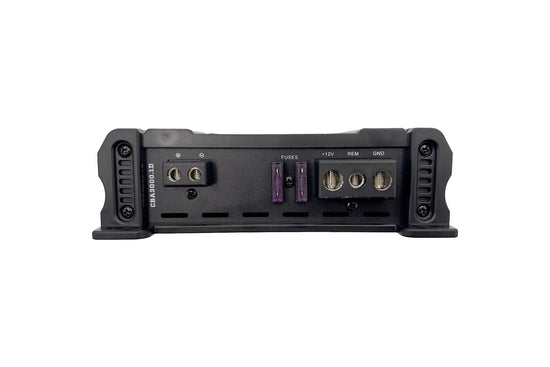

Power Terminal Management:
Positive Terminals: 1 x 4 AWG.
Negative Terminals: 1 x 4 AWG.
Remote Turn-ON Signal: 10 AWG.
Speaker Output Terminals: 10 AWG.

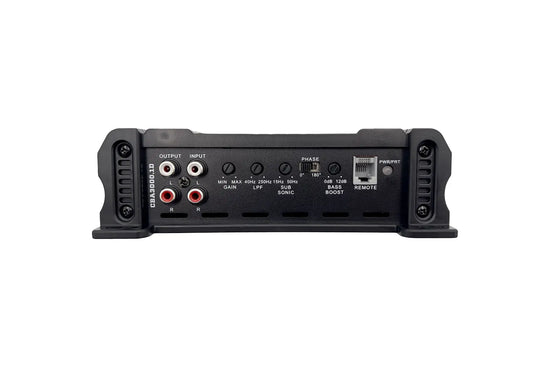

Specifications:
- Frequency Response: 10Hz - 250Hz
- Subsonic (15 - 50Hz)
- Low Pass Crossover Continuously variable (40-250Hz)
- Supply Voltage: 10 - 16V
- Input Impedance: 22kOhm - Signal to Noise Ratio: >90dB
- Phase Shift: 0/180 Degrees
- Bass Boost: 0 - 12dB Variable
- Variable Input Level Control: 0.2V - 6.0V
- Fuses: 60A recommended (2 x 30A ATC)
- Dimensions (L x W x H): 9.92" x 7.09" x 2.13" (252x180x54mm)
