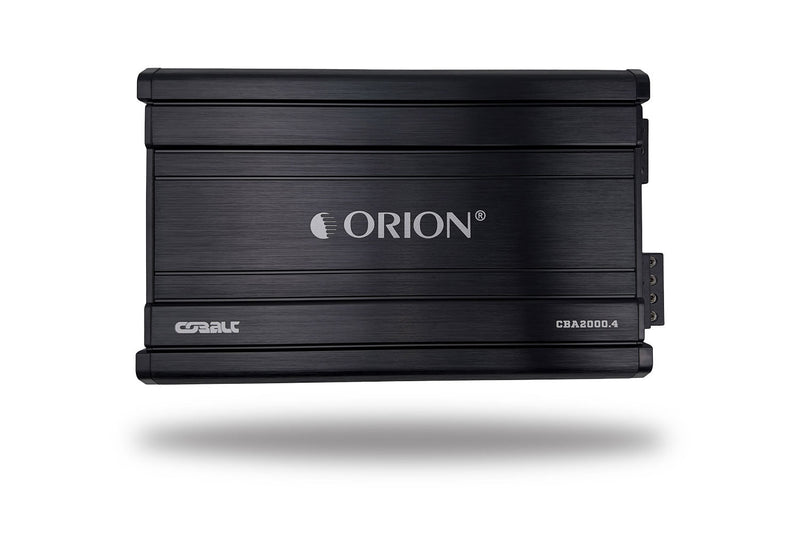

ORION CBA2000.4 COBALT Series 2000 Watts MAX 4-Channel Class A/B Amplifier
ORION CBA2000.4 COBALT Series 2000 Watts MAX 4-Channel Class A/B Amplifier
Harness the excellence of Class A/B amplification for a harmonious blend of efficiency and pristine sound quality. Immerse yourself in the grandeur of sound with a maximum power output of 2000 Watts, providing an unparalleled auditory experience. Tailor your audio with the built-in adjustable crossover, optimizing speaker performance by fine-tuning frequencies. Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes. Equipped with protection circuitry, the amplifier guarantees longevity by safeguarding against overheating and short circuits. The amplifier is meticulously crafted using high-quality components, ensuring reliable performance and enduring quality. The amplifier's design meticulously balances audio precision, power efficiency, and steadfast operation.
Features:
All MOSFET Power Supply & Output Stage
Heavy Gauge / High Current Custom Power and Speaker Terminals
2-Ohm Stable
RCA Out Throughput
12dB Octave Low-Pass Filter
Electronic Crossover Network
Bass Boost Circuit
Intelligent Power and Protection LED Indicator
Soft Turn-on/Turn-off Turn-On Delay
Fault and Protection Monitoring
4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage
Power Ratings:
Max Music Power 2000W
Power Terminal Management:Positive Terminals: 1 x 4 AWG.
Negative Terminals: 1 x 4 AWG.
Remote Turn-ON Signal: 10 AWG.
Speaker Output Terminals: 10 AWG.
Frequency Response: 10Hz - 30kHz
High Pass Crossover Continuously variable (50-1.2kHz)
Low Pass Crossover Continuously variable (40-250Hz)
Supply Voltage: 9 - 16V
Input Impedance: 22kOhm - Signal to Noise Ratio: >90dB
Bass Boost: 0/3/6dB Switch
Variable Input Level Control: 0.2V - 6.0V
Fuses: 60A recommended (2 x 30A ATC)
Dimensions (L x W x H): 12.17" x 7.09" x 2.13" (309x180x54mm)
