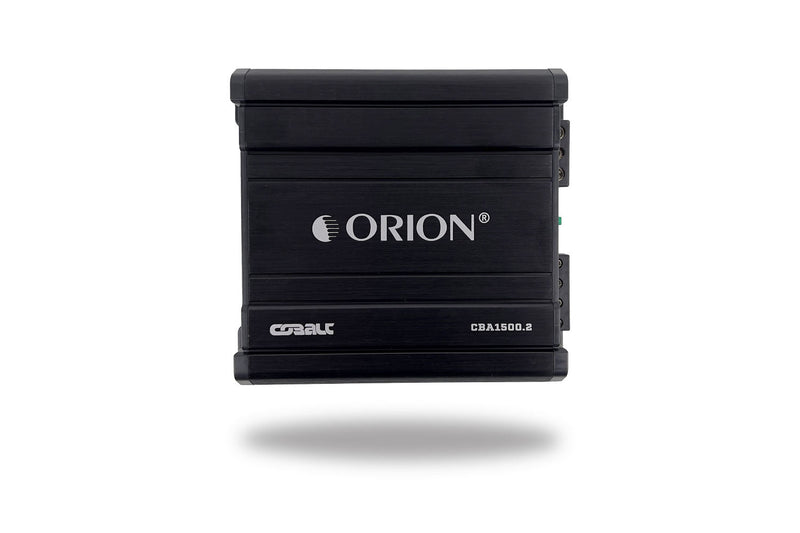

ORION CBA1500.2 COBALT Series 1500 Watts MAX 2-Channel Class A/B Amplifier
The ORION CBA1500.2 COBALT Series 1500 Watts MAX 2-Channel Class A/B Amplifier redefines audio excellence. With its advanced features and meticulous engineering, this amplifier delivers unparalleled power, precision, and control to your car audio system. Step into a world of sonic excellence with the ORION CBA1500.2 COBALT Series 1500 Watts MAX 2-Channel Class A/B Amplifier. Elevate your sound quality, amplify your bass, and redefine your driving experience. It's time to discover the art of audio precision.
Features:
Class A/B Amplification - The Class A/B amplifier design combines efficiency and sound quality, ensuring a pristine audio experience.
1500 Watts Max Power - Delivering a maximum power output of 1500 Watts, this amplifier unleashes exceptional audio dynamics.
Precise Sound Control - The built-in adjustable crossover allows precise tuning of audio frequencies, enhancing speaker performance.
Custom Bass Enhancement - The adjustable bass boost feature lets you fine-tune low-frequency response to your liking.
Enhanced Safety - Built-in protection circuitry guards against overheating, short circuits, and other potential issues.
High-Quality Materials - Crafted with quality components, the amplifier ensures longevity and consistent performance.
Expert Engineering - Carefully designed to optimize audio precision, power efficiency, and reliable operation.
Specifications:Â
All MOSFET Power Supply & Output Stage
Heavy Gauge / High Current Custom Power and Speaker Terminals
2-Ohm Stable
RCA Out Throughput
12dB Octave Low-Pass Filter
Electronic Crossover Network
Bass Boost Circuit
Intelligent Power and Protection LED Indicator
Soft Turn-on/Turn-off Turn-On Delay
Fault and Protection Monitoring
4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage
Positive Terminals: 1 x 4 AWG.
Negative Terminals: 1 x 4 AWG.
Remote Turn-ON Signal: 10 AWG.
Speaker Output Terminals: 10 AWG.
High Pass Crossover Continuously variable (50-1.2kHz)
Low Pass Crossover Continuously variable (40-250Hz)
Supply Voltage: 9 - 16V
Input Impedance: 22kOhm - Signal to Noise Ratio: >90dBÂ Bass Boost: 0 - 12dB Variable
Variable Input Level Control: 0.2V - 6.0V
Fuses: 30A recommended (1 x 30A ATC)
Dimensions (L x W x H): 8.22" x 7.09" x 2.13" (209x180x54mm)
