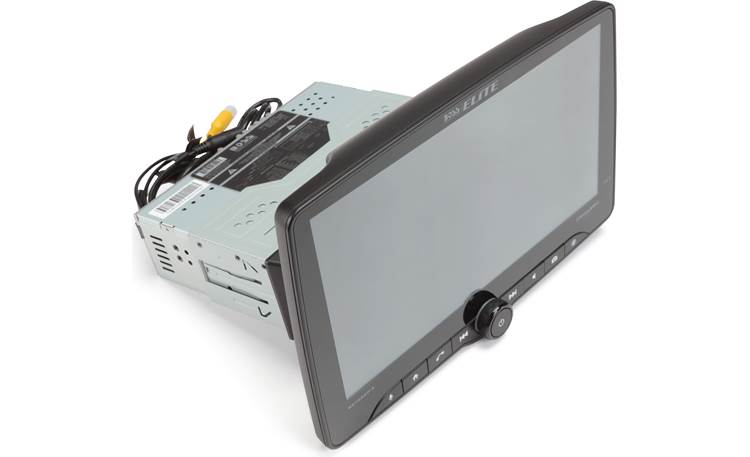

BOSS Audio Elite BE10ACP.X Digital multimedia receiver (does not play discs) 10.1" radio in your dash

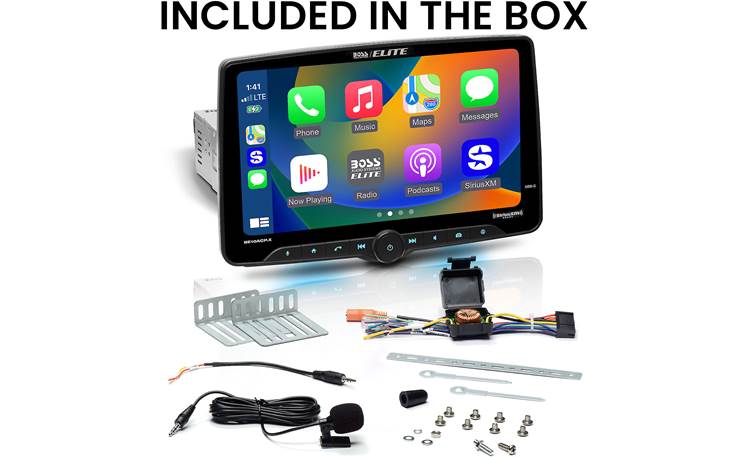

What's in the box:
BOSS Audio Elite BE10ACP.X owner's manual

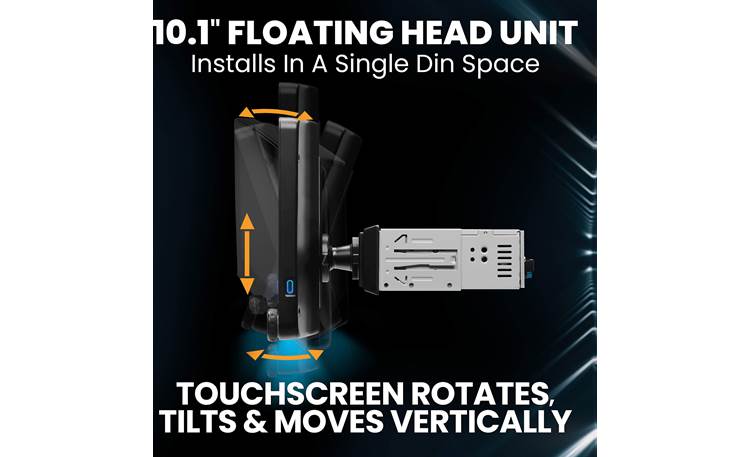

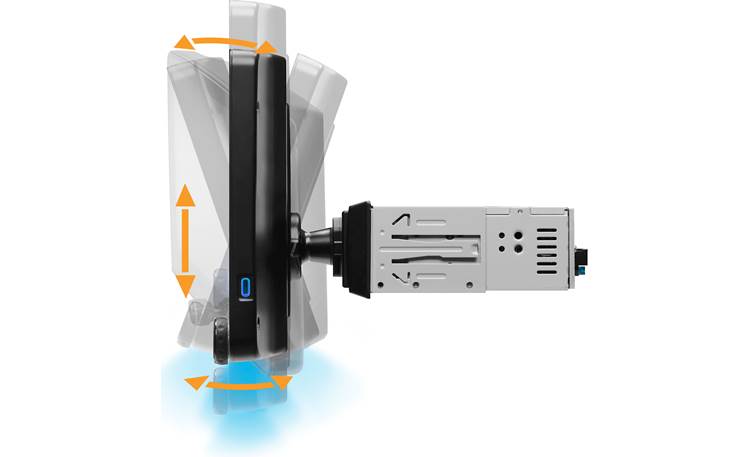

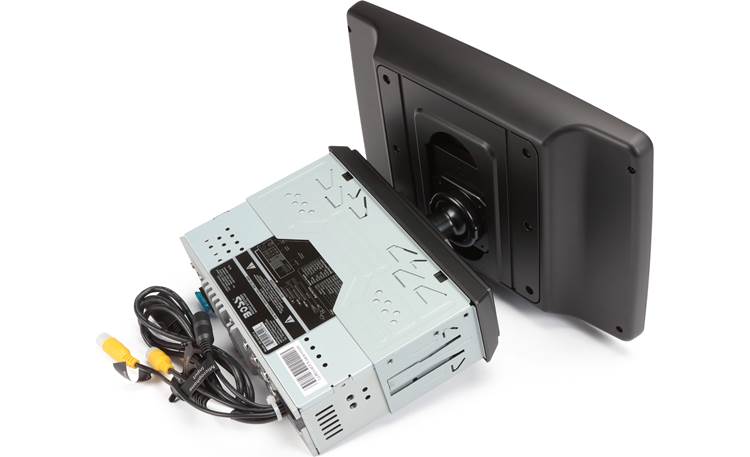

- Floating touchscreen monitor
- Single-DIN source unit (15A fuse)

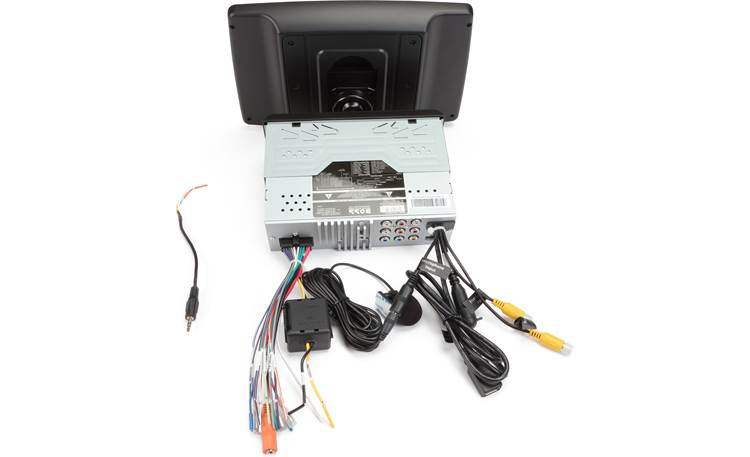

- Wiring harness
- SWC adapter cable
- Microphone w/ integrated bracket (attached 9.5' cable terminated by a stereo 3.5mm connector)
- Trim-ring (pre-installed)
- Mounting sleeve (pre-installed)
- 2 Side brackets
- 8 ISO-screws
- Self-tapping screw
- Rear-support stud
- Hex-nut
- Flat washer
- Lock washer
- Rubber-boot
- Backstrap
- 2 Removal tools
- User's Manual
- Warranty/Registration Card
Features & specs
| Expandability | ||
|---|---|---|
| AUX Input | RCA (rear) | |
| Audio/video Input | RCA (rear) | |
| USB Input | Front, Rear | |
| USB Port Power | 1.5A | |
| Backup Camera Input | Yes | |
| Second Camera Input | Yes | |
| CarPlay | Yes | |
| Android Auto | Yes | |
| Siri Control | Yes | |
| Alexa Voice Control | N | |
| Android Control | Yes | |
| Memory Card Slot | USB | |
| Bluetooth Compatible | Built-in | |
| Satellite Radio Ready | SiriusXM | |
| HD Radio | No | |
| Navigation | Optional | |
| iPod Compatibility | ||
| Full size | No | |
| Nano | No | |
| Touch | No | |
| iPhone | 5 and newer | |
| General | ||
| RMS Power (CTA-2006) | N/A | |
| RMS Power (Manufacturer) | 20 watts | |
| Peak Output | 85 watts | |
| RMS Power Bandwidth | 1kHz | |
| Preamp Outputs | 6-channel | |
| Sub Preamp Outputs | Yes | |
| Switchable Rear Preamp Outputs | No | |
| Video Screen | Yes | |
| Navigation App Compatible (iOS) | Apple, Google, Waze | |
| Navigation App Compatible (Android) | Google, Waze | |
| Preamp Voltage | 4 volts | |
| Screen Size | 10 | |
| Screen Type | Swipeable (Capacitive) | |
| Display Color | ||
| Key Button Color | Variable | |
| EQ Bands | 13 | |
| Wireless Remote | No | |
| Steering Wheel Control Compatible | Adapter required | |
| Parts Warranty | 5 Yr (US), 3 Yr (CA) | |
| Labor Warranty | 5 Yr (US), 3 Yr (CA) | |
| Tuner | ||
| FM Sensitivity | --- | |
| European Tuning | Yes | |
| Seek/Scan | Seek | |
| Radio Data System | Yes | |
| File Playback | ||
| Music File Playback | MP3, WMA, FLAC, WAV | |
| High-res Playback | FLAC (192kHz) | |
| Dimensions | ||
| Chassis Depth | 5.565 | |
| Chassis Width | 7.185 | |
| Chassis Height | 2.065 | |
Product highlights:
- digital media receiver with AM/FM tuner (does not play discs)

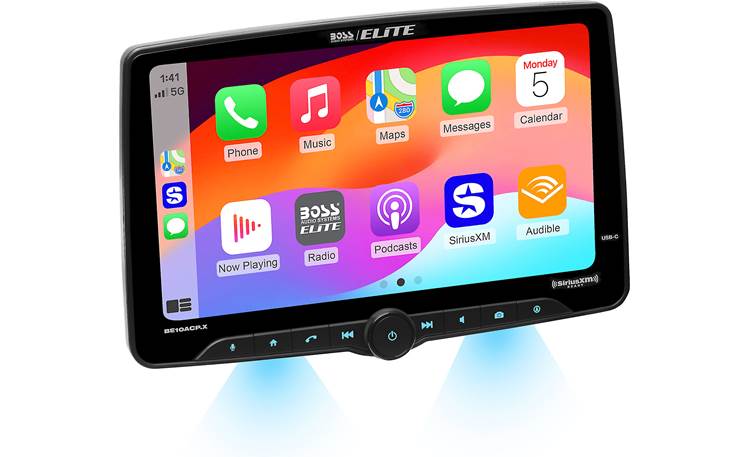

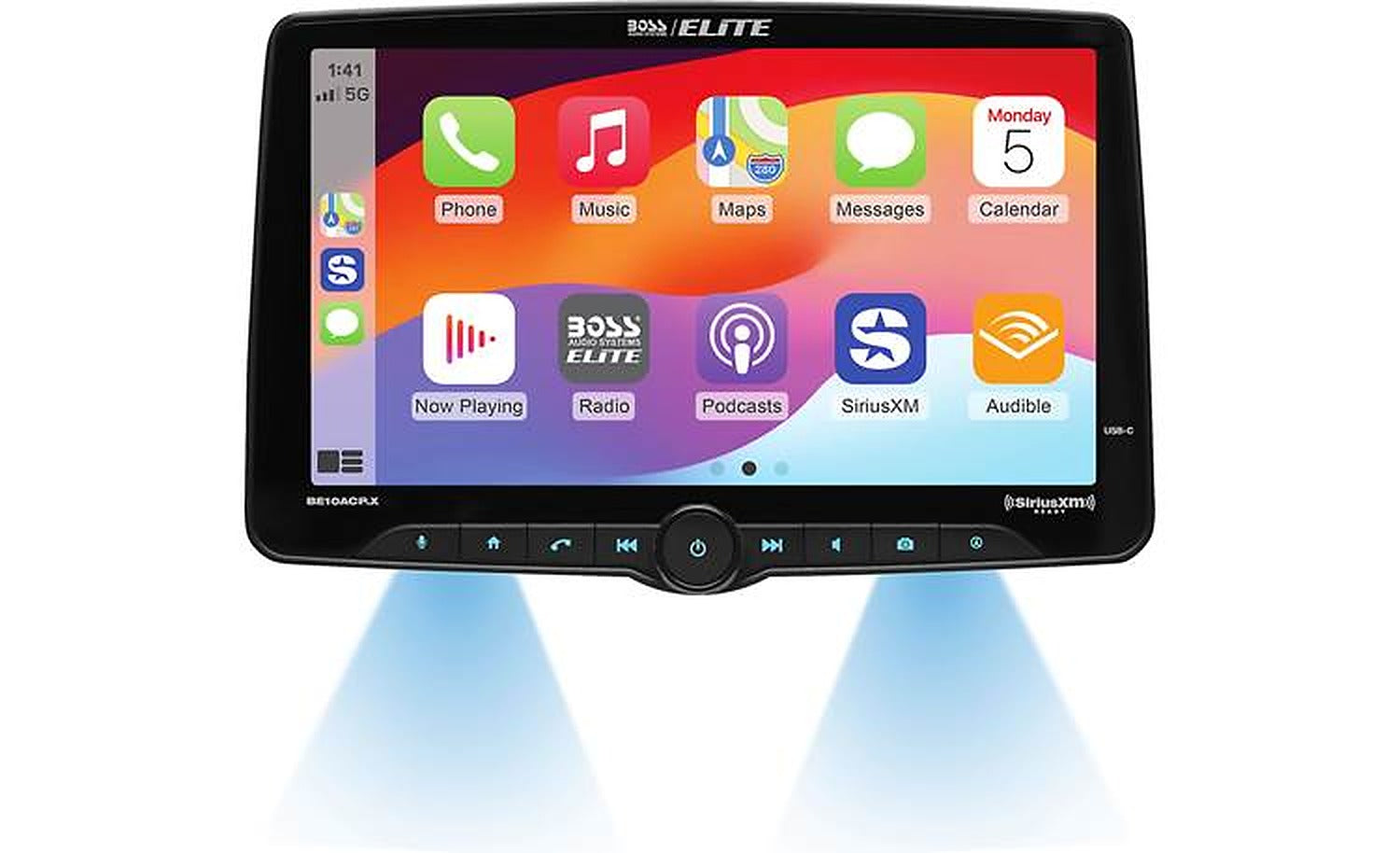

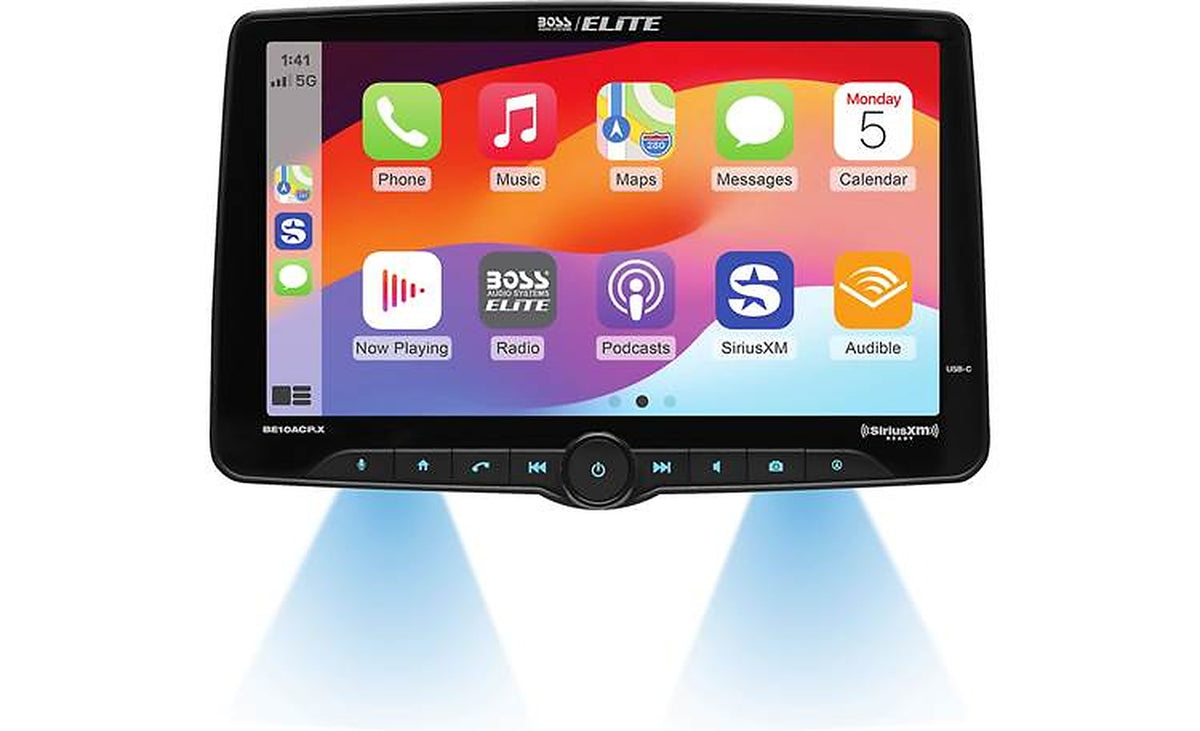

- 10.1" capacitive touchscreen display
- single-DIN (2" tall) chassis
- Bluetooth for hands-free calling and audio streaming
Smartphone features:
- Apple CarPlay compatible (wired only)
- Android Auto compatible (wired only)
- front panel button to activate Siri or Google Assistant
Audio/video features:
- plays WAV, MP3, WMA, and hi-res (192k/24-bit) FLAC files
- plays AVI, MKV, and WMV video files
- built-in DSP with time alignment
- 13-band EQ
Expandability:
- works with SiriusXM SXV300 tuner (not included)
- inputs: front USB-C input, rear USB input, rear A/V input (RCA), two camera inputs
- outputs: 6-channel preamp outputs (4-volt front, rear, sub)
Other information:

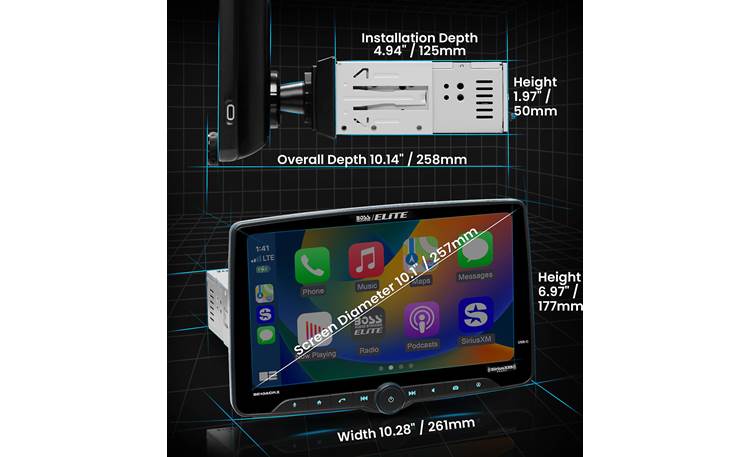

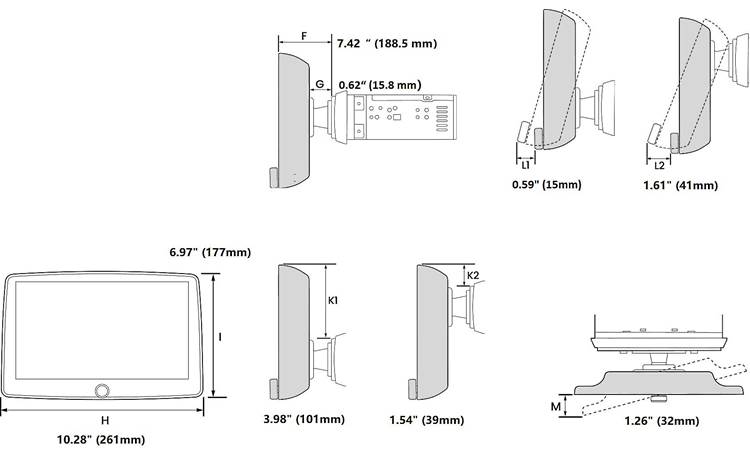

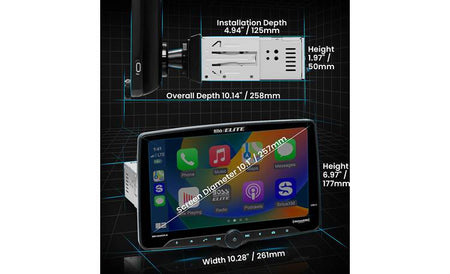

- Important Note — Monitor dimensions are 10.25" x 6.5625". Before ordering, check for possible interference with your dash and controls.
- built-in internal amp (20 watts RMS/85 peak x 4 channels)
- compatible with most factory steering wheel audio controls (adapter required)
- MFR # BE10ACP.X
- Item # 104BE10X
