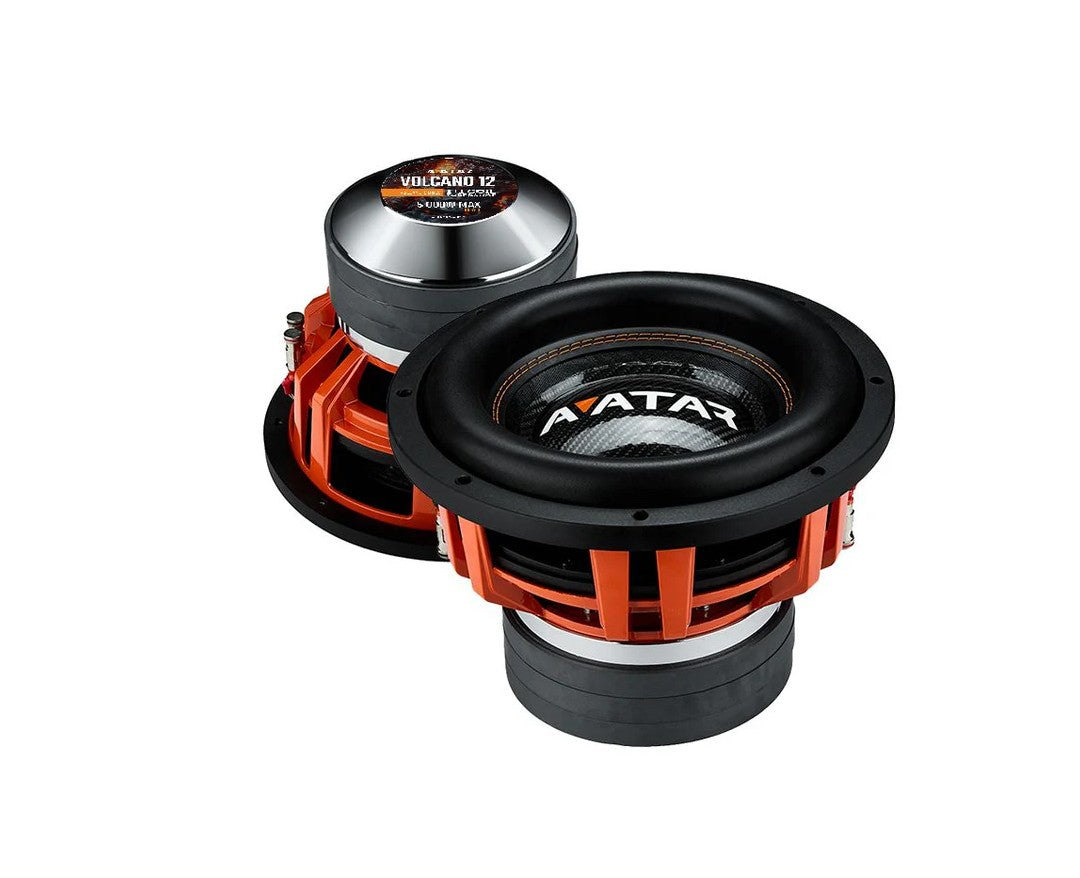

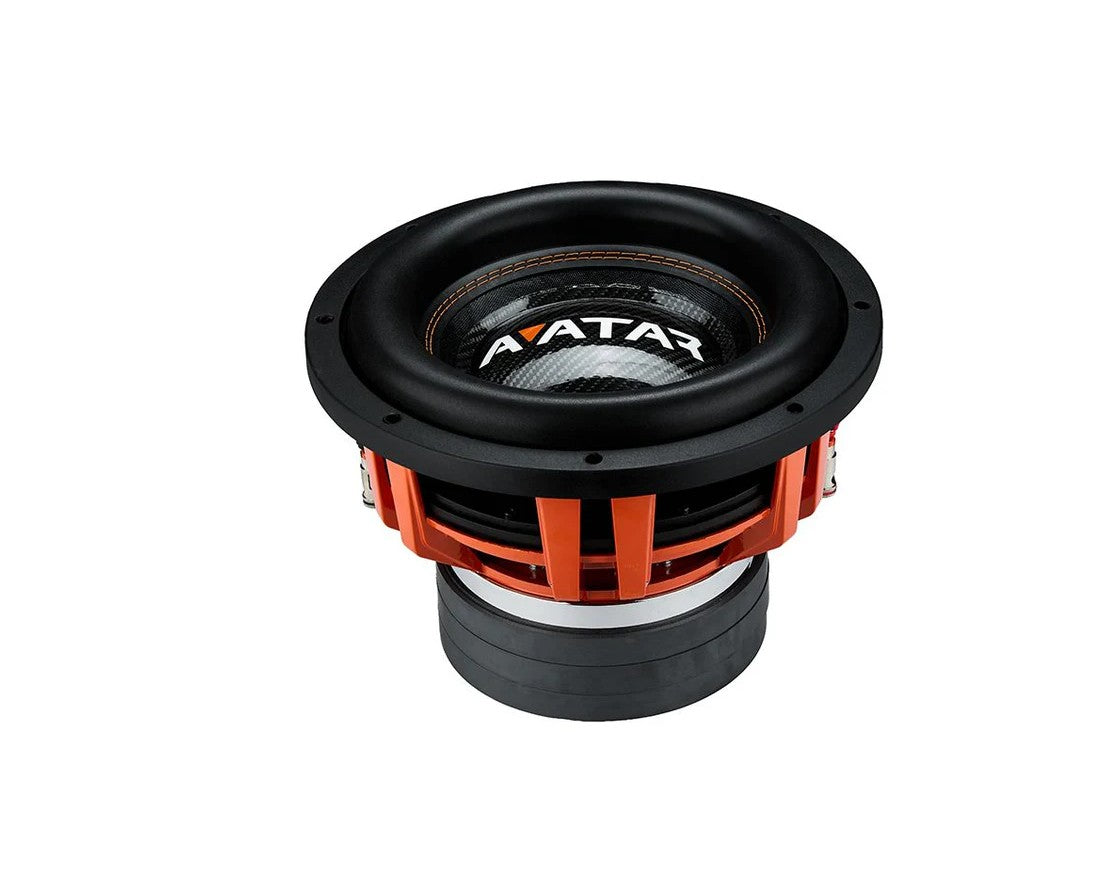

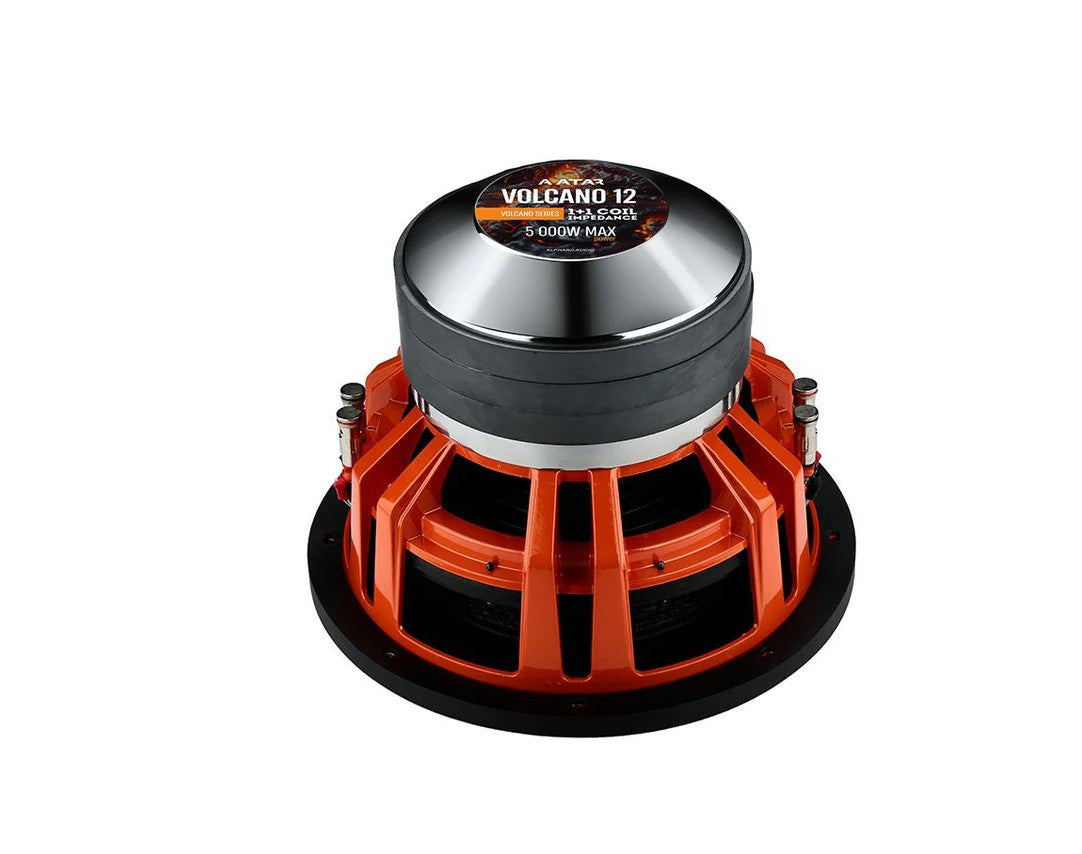

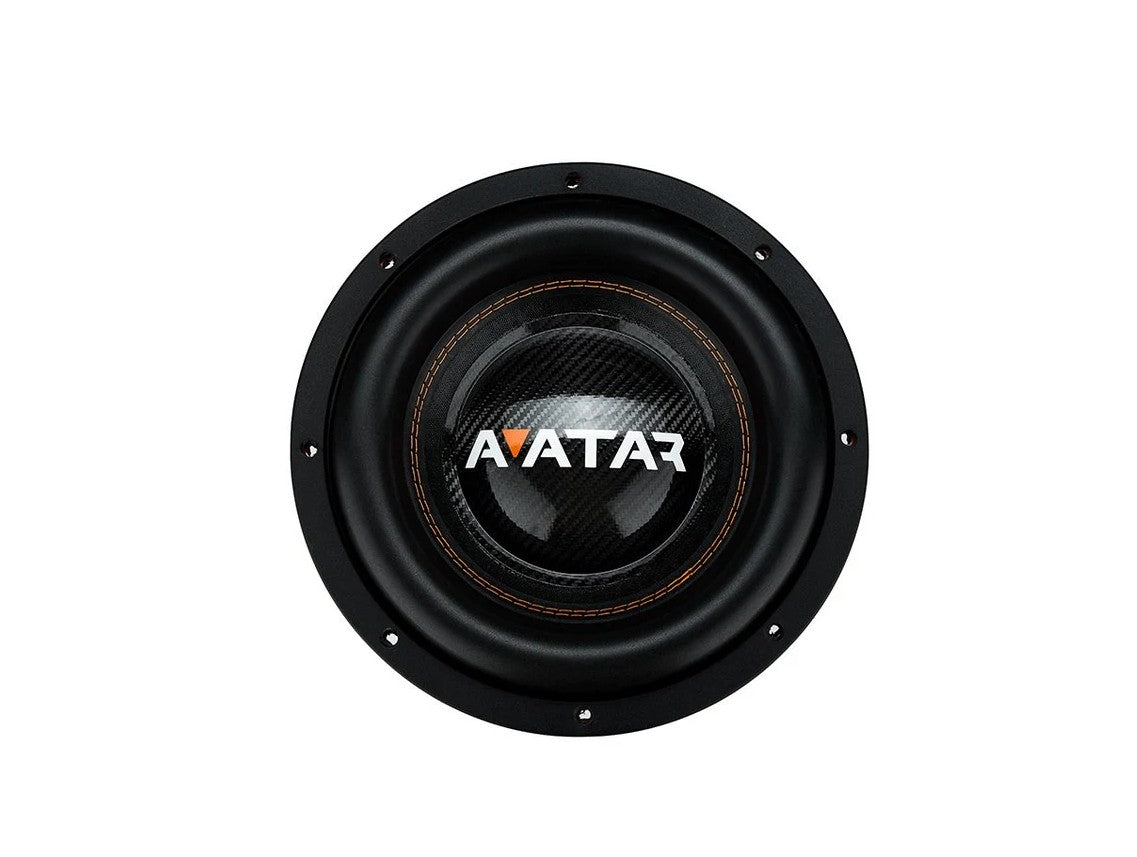

Avatar Volcano 12 D2 | 2500W RMS | 12" subwoofer
Extreme Bass Power in a 12-Inch Package
The Avatar Volcano 12 D2 12" car subwoofer is built for serious SPL and high-output daily systems. It handles 2,500W RMS and 5,000W maximum power, and its 3-inch dual voice coil, massive ferrite motor and 25mm Xmax deliver deep, hard-hitting bass with the durability to keep up under demanding conditions.
Sold individually (1 subwoofer). Also available in a Dual 1-Ohm (D1) version for different amplifier setups.
Technical Specifications
| Spec | Details |
|---|---|
| Model | Avatar Volcano 12 D2 |
| Size | 12" |
| Voice coil configuration | Dual 2 ohm (D2) |
| Voice coil diameter | 3" |
| Voice coil wire | Copper-clad aluminum (CCA) |
| RMS power | 2,500W |
| Max power | 5,000W |
| Frequency response | 20 – 80 Hz |
| Sensitivity | 81.9 dB (D2) |
| Cone | Semi-pressed paper |
| Surround | Foam |
| Magnet | Ferrite |
| Basket | Die-cast aluminum |
| Xmax | 25 mm (0.98") |
| Mounting depth | 8.98" (228 mm) |
| Cutout diameter | 11.14" (283 mm) |
| Gross weight | 51.8 lbs (23.5 kg) |
| Sold as | Single subwoofer |
| SKU | DEF-Volcano12D2 |
| UPC | 4650185712289 |
Why Choose the Avatar Volcano 12 D2?
- 2,500W RMS / 5,000W max handling: power for high-output builds and competition-style systems
- Dual 2-ohm (D2) voice coil: flexible wiring options for a wide range of high-power amplifiers, including multi-sub setups
- 3" high-temperature voice coil: built to handle sustained high power
- 25mm (0.98") Xmax: long, controlled excursion for deep low-end output
- Semi-pressed paper cone: stiff and light for accurate, powerful bass
- High-roll foam surround: supports the cone's excursion
- Massive ferrite motor: strong magnetic drive for high output
- Die-cast aluminum basket: strength and heat dissipation for hard use
- Frequency response 20–80 Hz: tuned for deep bass
Perfect For
- SPL and competition builds
- High-output daily systems for bass lovers
- Single or multi-sub setups with high-power monoblock amplifiers
- Sealed or ported enclosures built to the manufacturer's recommendations
Before You Buy
This is a dual 2-ohm subwoofer. Depending on how the coils are wired (in parallel or series), the final impedance will be 1 ohm or 4 ohms for a single sub. Make sure your amplifier is stable at the impedance you choose and delivers enough clean power. Use proper gauge wiring, a solid ground and a well-built enclosure for best results.
D1 or D2? Choose based on your amplifier's stable load and how many subs you plan to run. Compare with the Avatar Volcano 12 D1 (link to your D1 page).
FAQ
How much power can the Avatar Volcano 12 D2 handle?
2,500W RMS and 5,000W maximum.
What does D2 mean?
Dual 2-ohm: the subwoofer has two 2-ohm voice coils. Wired in parallel it presents 1 ohm, and wired in series it presents 4 ohms.
What is the difference between D1 and D2?
The D1 version has dual 1-ohm coils, giving final impedance options of 0.5 ohm (parallel) or 2 ohms (series). The D2 gives 1 ohm or 4 ohms. Pick the version that best matches your amplifier's stable load and your number of subs.
What size cutout do I need?
11.14" (283 mm) diameter, with a mounting depth of 8.98" (228 mm).
Is this sold as a pair?
No. It is sold individually, as a single subwoofer.
What amplifier should I use?
A high-power monoblock amplifier that is stable at your chosen final impedance and delivers close to the 2,500W RMS rating.
Free shipping is available within the 48 U.S. states. Orders placed before 11 PM ET are typically processed the next business day and arrive within 5–8 business days. Tracking information will be provided as soon as your order ships.
Need to make a change to your order? Contact us within 24 hours of purchase, and we'll be happy to help. Please note that orders already processed for shipment cannot be canceled.
1-Year Limited Warranty: As an authorized dealer, we provide a 1-year limited warranty covering manufacturer defects in materials and workmanship under normal use. The warranty does not cover physical damage, misuse, improper installation, or normal wear and tear.
Customer Support : 9:00 am to 5:00 pm
Email: info@eliteautogear.com
For technical support questions, contact us at cs@eliteautogear.com
Phone: (877)-215-8187
From Our Community
Real Installs. Real Sound.
See what enthusiasts are saying — straight from their builds
Low End You Can Feel
Bass Built for Daily Driving and Competition
Controlled Low End
Designed for tight, repeatable bass rather than one-note boom, so basslines and kick drums stay separate.
Built to Take Power
Voice coil, spider and cone materials are matched to the rated RMS so the sub handles sustained output.
Match the Enclosure
Performance depends on the box. Sealed for accuracy, ported for output. See the specs for recommended volume and tuning.
Wire It Right
Coil configuration decides your final impedance. Match it to a load your amplifier is stable at before wiring.
