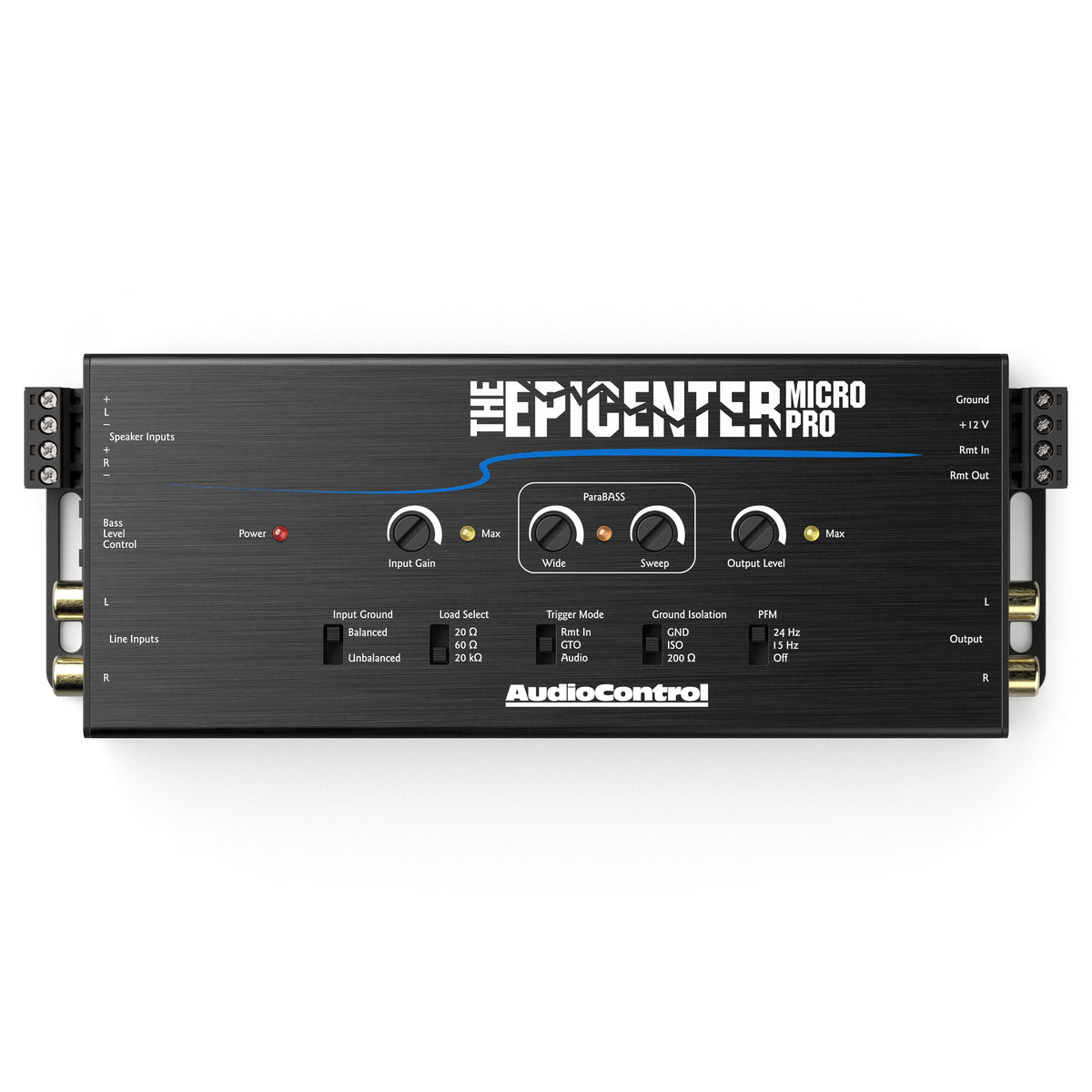

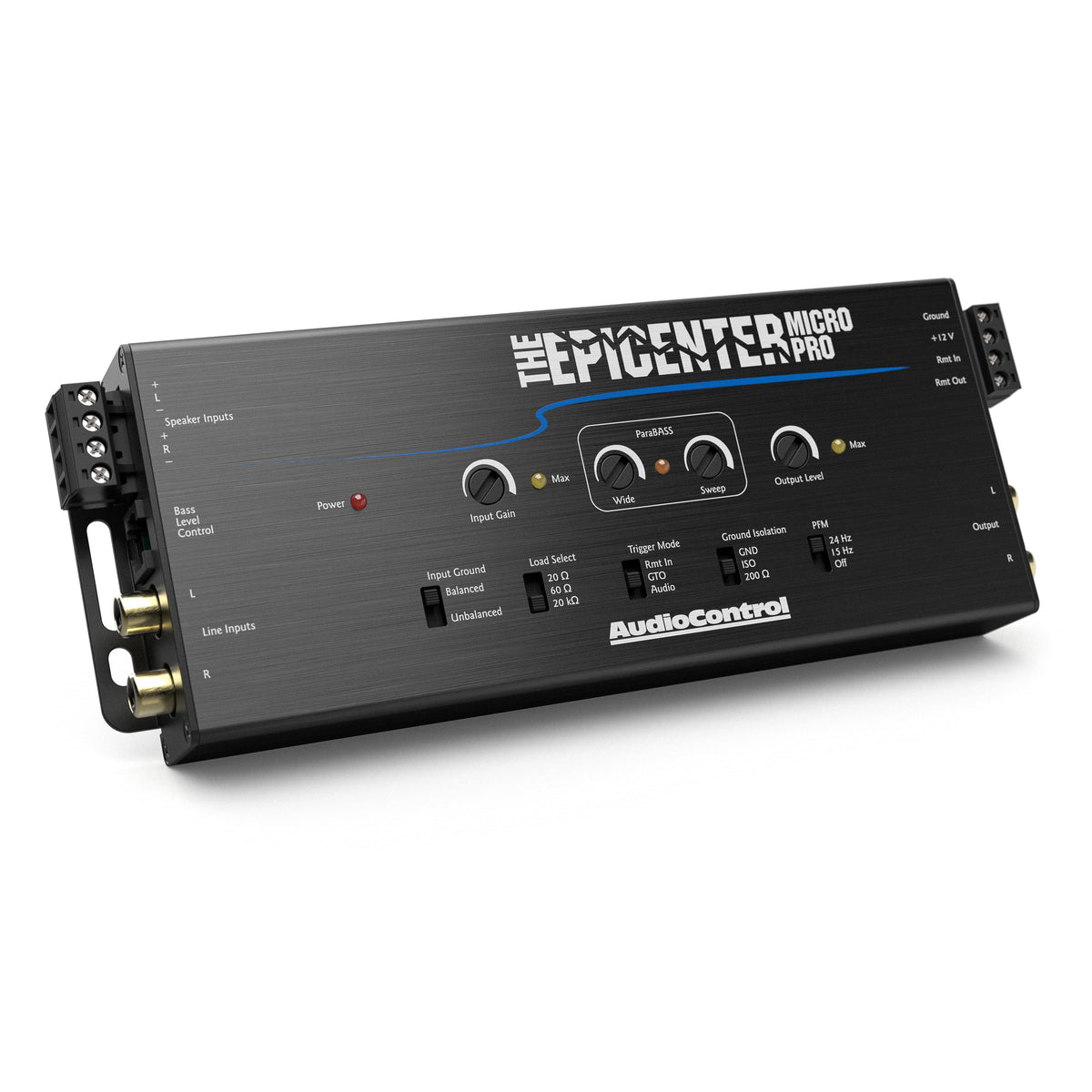

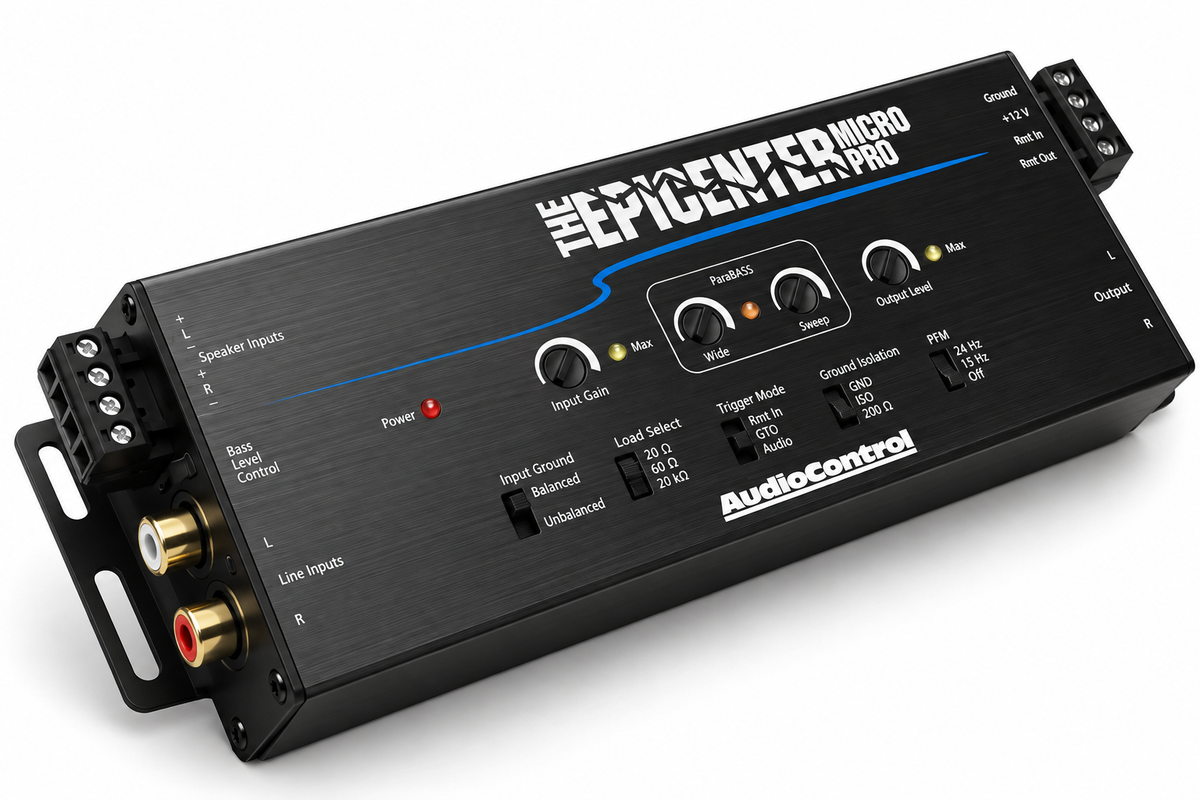

AudioControl Epicenter Micro PRO Bass Restoration Processor & Line Output Converter

Out of stock
SKU: AC-EPICENTERMICROPRO
(0)
Brand New with Manufacturer Warranty
Authorized Dealer
Free Shipping
Secure Payments
Regular price $219.00 USD

Building on the trusted bass-enhancing features of the Epicenter Micro, the Epicenter Micro PRO brings more control and tuning flexibility for those chasing extreme bass performance. It uses musical harmonics to reconstruct missing low frequencies and doubles as a high-end line output converter, offering OEM integration features like Load Matching Circuit (LMC), multiple trigger modes, ground isolation options, and selectable subsonic filters. For advanced users, it delivers up to 10V output voltage for maximum system compatibility.

Features:

Bass Enhancement:

  • Digital Bass Restoration Circuit: Transforms flat audio into rich, powerful bass by reproducing "missing" low notes
  • ParaBASS® Controls: Precision bass shaping for any music style or preference
  • PFM Subsonic Filter: Selectable protection for tighter, controlled bass

Professional Integration:

  • 10-Volt Line Driver: Maximum output for strong, clean amplifier signals
  • Balanced & Speaker-Level Inputs: Works with any factory system, eliminates interference
  • Load Selection Switch: Ensures modern factory stereo compatibility

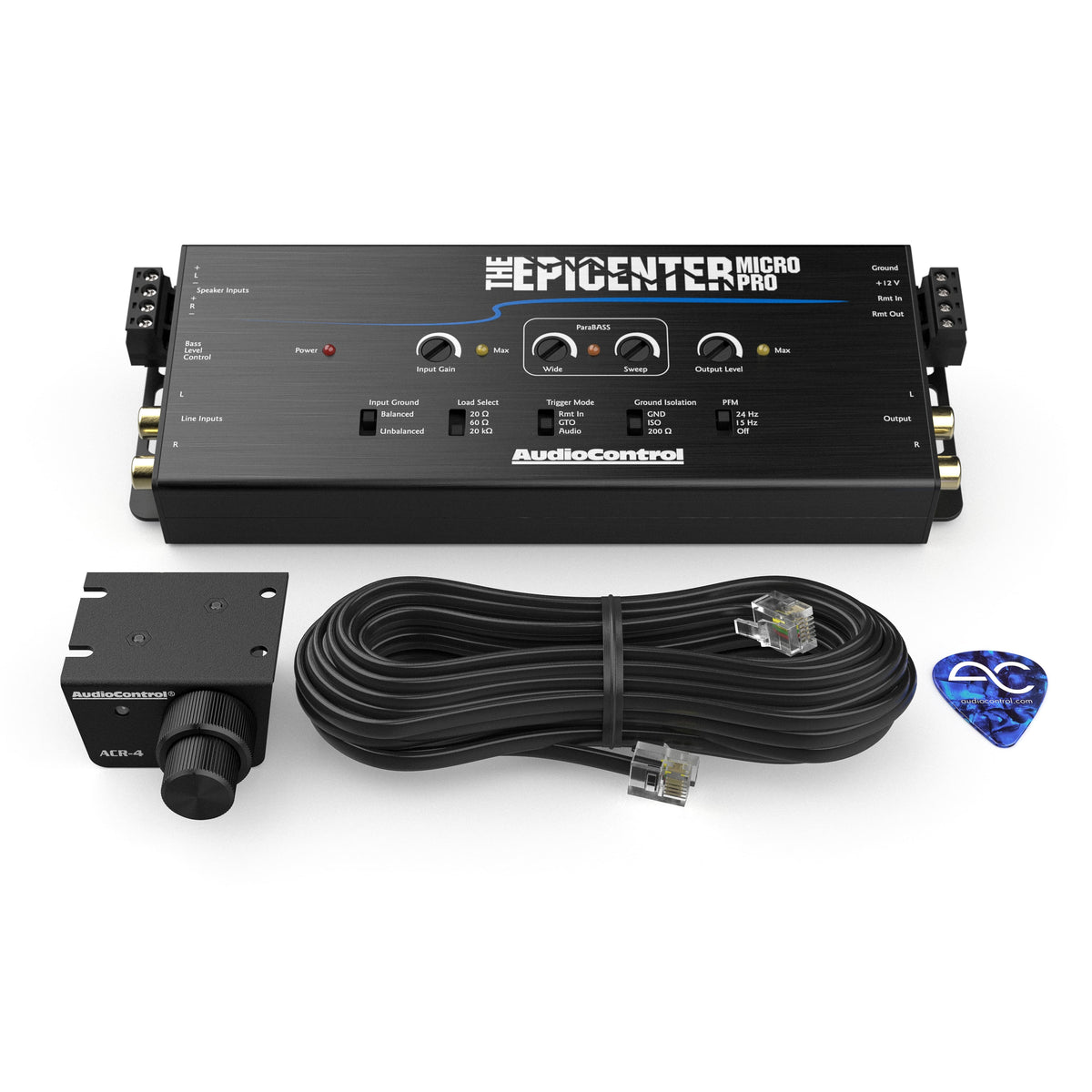

  • ACR-4 Remote Included: Driver's seat bass control

Premium Construction:

  • Conformally Coated PCB: Enhanced automotive durability
  • Epicenter Link Ready: Direct integration with EPIC Series amplifiers

 ADVANTAGES

Competitive Edge:

  • Two products in one: Bass maximizer + premium line output converter
  • Legendary Audio Control Digital Bass Restoration technology
  • Complete OEM integration solution
  • Seamless EPIC Series amplifier pairing

Specifications:

Maximum Line Level Input: 10 volts RMS

Maximum Speaker Level Input: 40 volts (400 watts) using 20 kΩ load setting

Line Input Impedance: 7 kΩ

Speaker Level Input Impedance: 20Ω, 60Ω, or 20 kΩ

Maximum Output Level: 9 volts RMS / 13 volts peak

Output Impedance: 150 ohms

Total Harmonic Distortion (THD): 0.03%

Frequency Response: 10 Hz – 22 kHz ±1dB

Signal-to-Noise Ratio: >105 dB

PFM Subsonic Filter: Selectable 24 Hz, 15 Hz, or bypass

Current Draw: 300mA

Recommended Fuse: 1 amp
