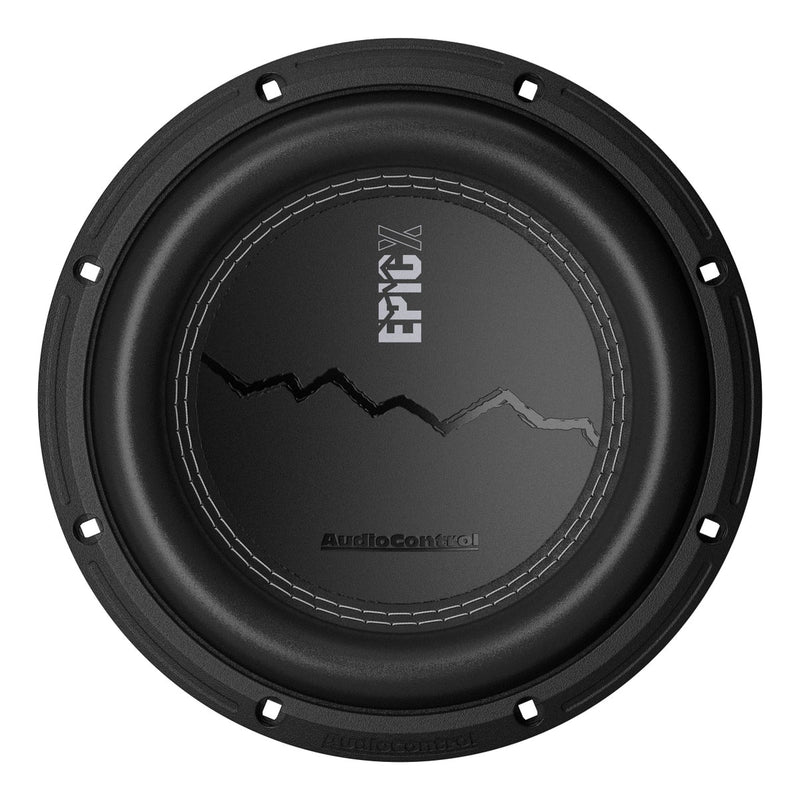

AudioControl EPICX8D2 EPICX Series Car Audio 8" Subwoofer, 400 Watt RMS/600 Watt Max, 2 Ohm, Dual Voice Coil (DVC)
The EPICX8D2 is designed to deliver clean, impactful bass in a compact form. With dual 2-ohm voice coils and 400 watts of RMS power handling, it offers flexible wiring options and consistent performance. Ideal for sealed or ported enclosures, this subwoofer is a solid choice for enhancing low-end clarity in any custom car audio system.
Features:
- Composite Foam Surround for Smooth, Controlled Bass
- High-Precision Motor Assembly Improves Efficiency and
Output - Rigid Steel Basket for Strength and Reduced Resonance
- High-Temperature, Lightweight Voice Coil
- One-Piece Dust Cap Design
- Non-Pressed Paper Cone for Added Warmth and Depth
- Large-Gauge, Quick-Release Black Nickel Terminals
- Pair with The EPICENTER® for Unmatched Bass
Specifications:
- Model: EPICX8D2
- Subwoofer Size: 8 inches
- Voice Coil Configuration: Dual Voice Coil (DVC)
- Impedance: 2 Ohm
- Power Handling: RMS Power: 400 Watts Peak Power: 600 Watts
- Cone Material: Fiber matrix, mica-coated paper cone
- Surround: High-excursion, double-stitched surround
- Cooling System: Internally designed radial cooled motor
- Basket: Heavy-duty rigid basket for reduced resonance and distortion
- Dust Cap: Dual dust cap system for enclosure compression control
- Application: Suitable for sealed or ported enclosures
| Specification | Details |
|---|---|
| Product Name | AudioControl EPICX8D2 8″ Subwoofer |
| UPC | 850038647988 |
| Model | EPICX8D2 (Dual 2 Ω voice coils; also available as D4) |
| Subwoofer Size | 8 in / 200 mm |
| Impedance | Dual Voice Coil: 2 Ω (D2); also offered in 4 Ω (D4) |
| Power Handling | 400 W RMS / 600 W Peak |
| Cone Material | Fiber matrix, mica-coated paper cone |
| Surround | Composite foam, double-stitched |
| Basket | Rigid steel basket for reduced resonance |
| Motor & Cooling | High‑precision motor assembly with internally radial cooling |
| Dust Cap | One-piece dust cap (dual dust-cap system for compression control) |
| Terminals | Large-gauge quick-release black nickel terminals |
| Frequency Response (Fs) | ~47 Hz |
| Sensitivity | ~83.5 dB @ 1 W/1 m |
| Dimensions | OD 8.5″; Cutout 6.9″; Mounting depth 4.1″; Mounting height 0.8″ |
| Recommended Enclosures | Sealed: ~0.65 ft³ (16″ W × 12″ H × 9″ D); Ported: slot-vent “ideal” (17″ W × 12″ H × 10.5″ D, tuned to ~40 Hz) |
| Application | Ideal for compact sealed or ported enclosures—delivers clean, impactful bass |
| Origin | USA |
SKU: AC-EPICX8D2V
UPC: 850038647988
