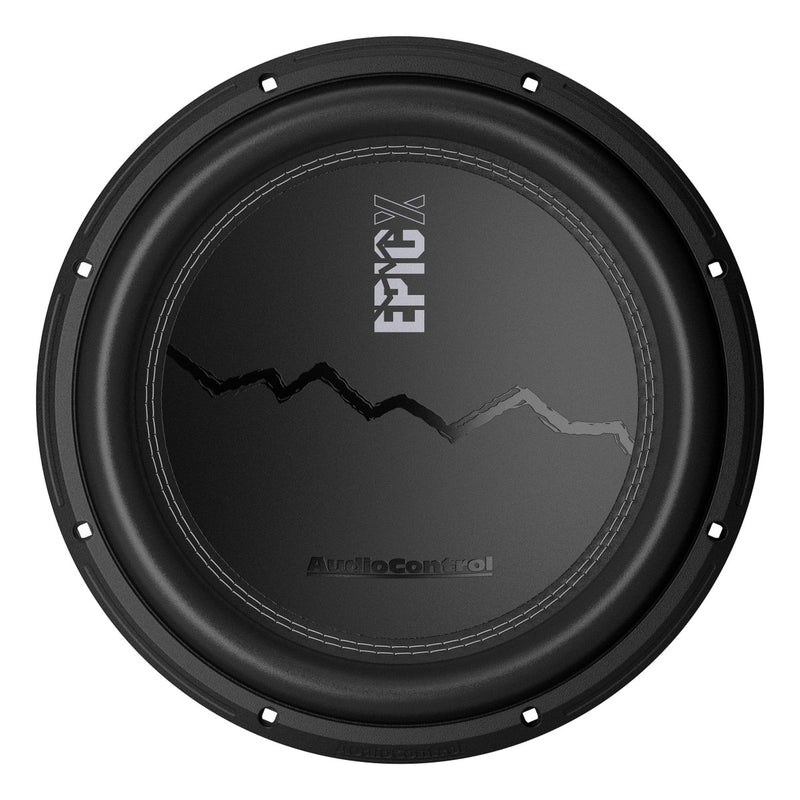

AudioControl EPICX12D4 EPICX Series Car Audio 12" Subwoofer, 500 Watt RMS/750 Watt Max, 4 Ohm, Dual Voice Coil (DVC)
The EPICX12D4 hits hard and stays clean. This 12" sub is built for deep, punchy bass that fills your ride without missing a beat. With a dual voice coil design and serious power handling, it’s perfect for custom setups that demand both volume and clarity. Whether you're cruising or competing, this sub keeps the bass deep, smooth, and on point.
Features:
- Composite Foam Surround for Smooth, Controlled Bass
- High-Precision Motor Assembly Improves Efficiency and
Output - Rigid Steel Basket for Strength and Reduced Resonance
- High-Temperature, Lightweight Voice Coil
- One-Piece Dust Cap Design
- Non-Pressed Paper Cone for Added Warmth and Depth
- Large-Gauge, Quick-Release Black Nickel Terminals
- Pair with The EPICENTER® for Unmatched Bass
Specifications:
- Size: 12"
- Power Handling: 500W RMS / 750W Max
- Impedance: 4 Ohm
- Voice Coil: Dual Voice Coil (DVC)
- Design: High-performance subwoofer for deep, clean bass
- Application: Ideal for custom car audio systems
- Mounting Depth: Estimated at 5.5" to 6.5"
- Sold As: Single Unit
| Specification | Details |
|---|---|
| Product Name | AudioControl EPICX12D4 12″ Subwoofer – EPICX Series |
| UPC | 810194210044 |
| Model | EPICX12D4 (Dual Voice Coil, 4 Ω) |
| Series | EPICX Series 12″ DVC Subwoofer (2 Ω or 4 Ω versions) |
| Power Handling | 500 W RMS / 750 W Peak |
| Speaker Size | 12 in / 300 mm |
| Impedance | Dual Voice Coil — 4 Ω |
| Voice Coil Diameter | 2.38 in (60 mm) |
| Resonant Frequency (Fs) | 30.1 Hz |
| Efficiency (Sensitivity) | 86.6 dB @ 1 W/1 m |
| Magnet Dimensions | 6.14 × 2.95 × 0.98 in (156 × 75 × 25 mm) |
| Construction | Composite foam surround; non-pressed paper cone; one‑piece dust cap; rigid steel basket; high‑precision motor with radial cooling; quick‑release black nickel terminals |
| Dimensions | - OD: 12.4 in (316 mm) - Cutout: 11.06 in (281 mm) - Mounting depth: 6 in (153.8 mm) - Mounting height: 1 in (24 mm) - Motor w/ cover: 6.4 in (162 mm) |
| Enclosure Recommendations | - Sealed (ideal): 1.25 ft³ (19″ × 14.5″ × 11″) - Ported: Ext. 23.75″ × 16.5″ × 12.5″ (2.83 ft³ ext./2 ft³ net), slot‑vent tuned to 33 Hz, port area 22.5 in² |
| In the Box | (1) EPICX12D2 or D4 Subwoofer and User Guide |
| Country of Manufacture | Designed and built in the USA |
SKU: AC-EPICX12D4
UPC: 810194210044
Free shipping is available within the 48 U.S. states. Orders placed before 11 PM ET are typically processed the next business day and arrive within 5–8 business days. Tracking information will be provided as soon as your order ships.
Need to make a change to your order? Contact us within 24 hours of purchase, and we'll be happy to help. Please note that orders already processed for shipment cannot be canceled.
1-Year Limited Warranty: As an authorized dealer, we provide a 1-year limited warranty covering manufacturer defects in materials and workmanship under normal use. The warranty does not cover physical damage, misuse, improper installation, or normal wear and tear.
Customer Support : 9:00 am to 5:00 pm
Email: info@eliteautogear.com
For technical support questions, contact us at cs@eliteautogear.com
Phone: (877)-215-8187
From Our Community
Real Installs. Real Sound.
See what enthusiasts are saying — straight from their builds
Low End You Can Feel
Bass Built for Daily Driving and Competition
Controlled Low End
Designed for tight, repeatable bass rather than one-note boom, so basslines and kick drums stay separate.
Built to Take Power
Voice coil, spider and cone materials are matched to the rated RMS so the sub handles sustained output.
Match the Enclosure
Performance depends on the box. Sealed for accuracy, ported for output. See the specs for recommended volume and tuning.
Wire It Right
Coil configuration decides your final impedance. Match it to a load your amplifier is stable at before wiring.
