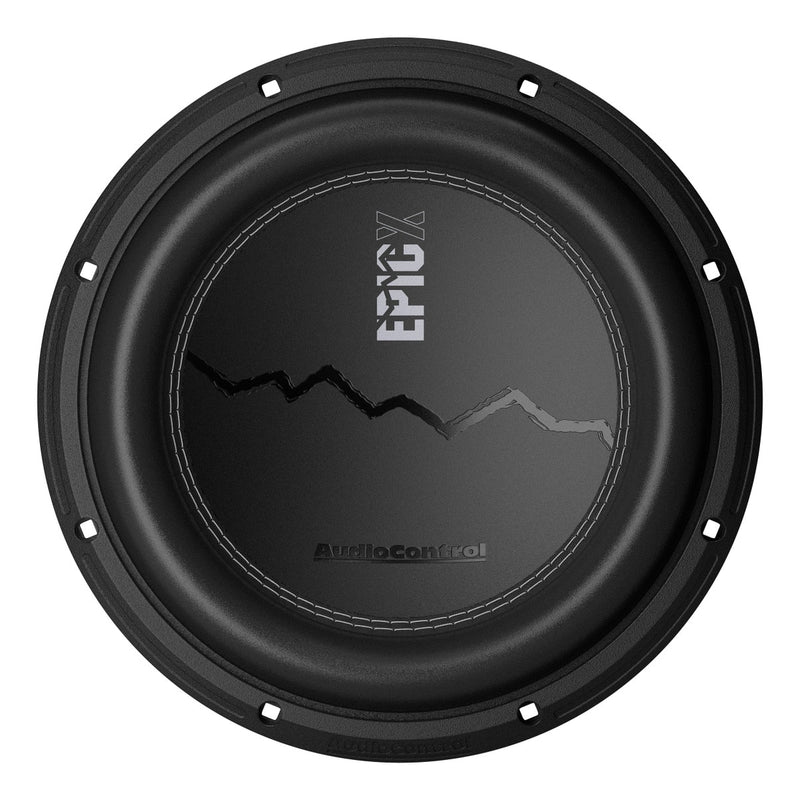

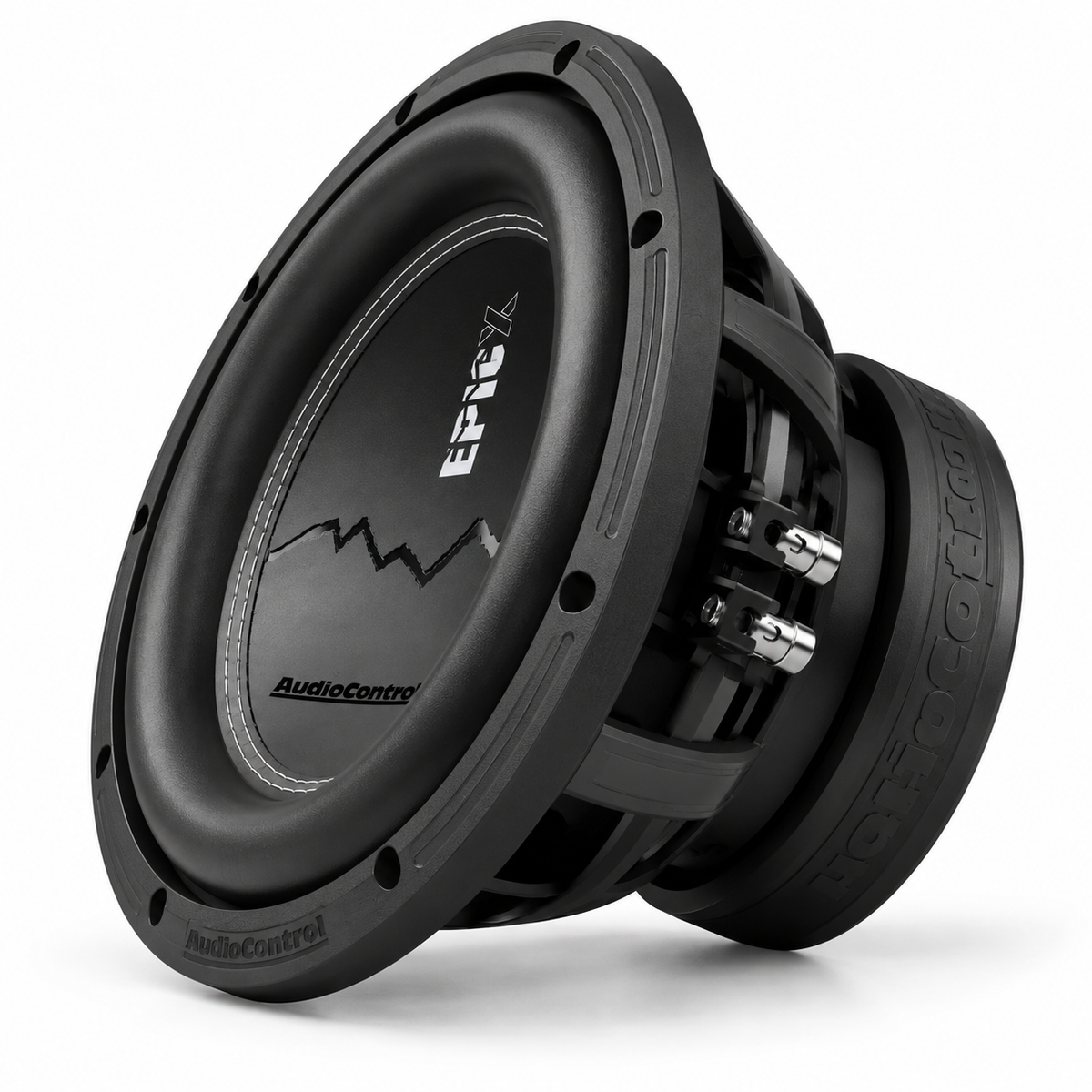

AudioControl EPICX10D4 EPICX Series Car Audio 10" Subwoofer, 500 Watt RMS/750 Watt Max, 4 Ohm, Dual Voice Coil (DVC)
Upgrade your car audio with the EPICX10D4. This 10" subwoofer delivers clean, powerful bass with a dual 4-ohm voice coil design and 500 watts of RMS power handling. Built for performance and reliability, it’s ideal for custom installations in sealed or ported enclosures.
Features:
- Composite Foam Surround for Smooth, Controlled Bass
- High-Precision Motor Assembly Improves Efficiency and
Output - Rigid Steel Basket for Strength and Reduced Resonance
- High-Temperature, Lightweight Voice Coil
- One-Piece Dust Cap Design
- Non-Pressed Paper Cone for Added Warmth and Depth
- Large-Gauge, Quick-Release Black Nickel Terminals
- Pair with The EPICENTER® for Unmatched Bass
Specs:
Model: EPICX10D4
Subwoofer Size: 10 inches
Voice Coil Configuration: Dual Voice Coil (DVC)
Impedance: 4 Ohm
Power Handling: RMS Power: 500 Watts Peak Power: 750 Watts
Design: Heavy-duty construction for durability and performance
Application: Suitable for sealed or ported enclosures
| Specification | Details |
|---|---|
| Product Name | AudioControl EPICX10D4 10″ Subwoofer (Dual 4 Ω) – EPICX Series |
| UPC | 810194210020 |
| Model | EPICX10D4 (dual 4 Ω voice coil) |
| Series | EPICX Series 10″ DVC Subwoofer |
| Power Handling | 500 W RMS / 750 W Peak |
| Speaker Size | 10 in / 250 mm |
| Impedance | Dual Voice Coil – 4 Ω (also available in a 2 Ω version) |
| Voice Coil Diameter | 2.38 in |
| Resonance Frequency (Fs) | ~39.8 Hz |
| Efficiency (Sensitivity) | 84.8 dB @ 1 W/1 m |
| Magnet Dimensions | 6.14 × 2.95 × 0.98 in (156 × 75 × 25 mm) |
| Basket Material | Heavy-duty rigid steel for reduced resonance |
| Surround | Composite foam, double-stitched |
| Cone Material | Non-pressed paper (fiber-matrix, mica-coated) |
| Dust Cap | One-piece design with compression control |
| Terminals | Large-gauge, quick-release black nickel |
| Cooling & Motor | High-precision motor assembly with radial cooling |
| Dimensions | OD: 10.5″; Cutout: 9.2″; Mounting Depth: 5.3″; Mounting Height: 1.0″; Motor Diameter (w/ cover): 6.4″ |
| Recommended Enclosures | • Sealed ideal volume: ~0.625 ft³ • Ported: 1.25 ft³ enclosure (20.5″ × 13.5″ × 11.5″) tuned to ~35 Hz |
| Box Contents | (1) EPICX10D4 Subwoofer and user guide |
| Country of Manufacture | Designed and built in the USA |
SKU: AC-EPICX10D4
UPC: 810194210020
