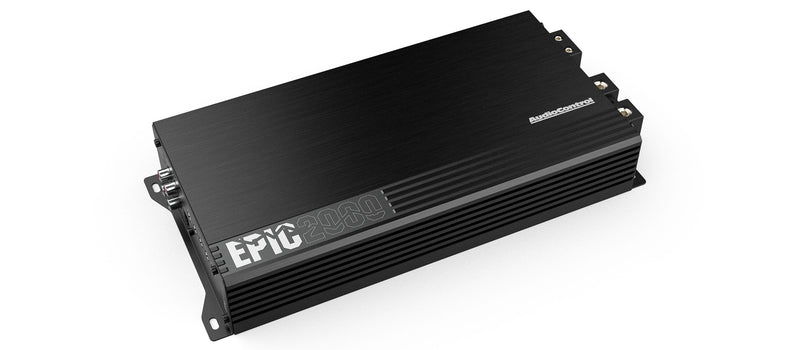

AudioControl EPIC Series Monoblock 2000 Watt Amplifier EPIC2000
The AudioControl EPIC Series Amplifier delivers powerful, heart-pounding bass in a compact, thermally efficient design. Perfectly paired with The Epicenter Bass Restoration Processor (sold separately), it enhances your bass experience to new levels. This amplifier offers exceptional sound quality and is the only AudioControl amplifier to include a bass knob for easy control.
Specifications:
Digital Class-D Amplifier: Powerful yet compact and stable down to a 1 ohm load.
0-12dB Variable Bass Boost Q: Selects the frequency to boost
Direct Wire Terminals with Hex Screws: Provide solid, reliable connections.
4-Gauge Power Terminal and 8-Gauge Speaker Terminal: Designed for maximum current flow.
91dB+ Signal-to-Noise Ratio (@ CEA Standard): Ultra-efficient idle draw (< 0.5-1A).
Smart Auto Reset Protection Circuit: Multiple protection modes are in place to prevent damage if your amplifier encounters an issue.
Output Over-Current Protection (OCP)
Input Over-Voltage Protection (OVP)
Input Under-Voltage Protection (UVP)
Output DC-Offset Protection (DCP)
Over-Temperature Protection (OTP)
THE EPICENTER LINK: Connects to EPIC (Power & Remote) to simplify the installation of The Epicenter
Features:
• Compact High-Power Class D Monoblock Amplifier
• High-Current Design – 1Ω Stable
• Smart Auto-Reset Protection Circuit
• 12 dB/octave Linkwitz-Riley Variable Low Pass Filter
• 12 dB/octave Variable Subsonic Filter
• EPICBoost™ Variable Frequency Bass Boost
• ACR-E Remote Level Control Included
• Solid Power/Speaker Terminals with Hex Screws
• Built for THE EPICENTER®
What's in the Box: EPIC2000, Wrench, Screws, ACR-E Remote Level Control and Cable, The Epicenter Link (1m Harness), Manual
| Specification | Details |
|---|---|
| Model | EPIC2000 |
| UPC | 850038647780 |
| Channels | Mono (1 channel) |
| Amplifier Class | D (Digital) |
| Power Output @ 4 Ω | 800 W RMS |
| Power Output @ 2 Ω | 1,400 W RMS |
| Power Output @ 1 Ω | 2,000 W RMS |
| Bridged Power (Strapped) | 4,000 W @ 2 Ω |
| Frequency Response | 10 Hz–190 Hz (+/−1 dB) |
| S/N Ratio | 92.9 dBA |
| THD | < 1% |
| Filters | 12 dB/octave Linkwitz-Riley LPF (40–180 Hz), Subsonic filter (off–50 Hz), EPICBoost bass boost (0–12 dB @ 30–80 Hz) |
| Input Sensitivity | 500 mV–6 V RMS |
| Fuse Requirement | 200 A power fuse |
| Terminals | Power: 0/1 AWG; Speaker: 4 AWG; Remote: 8 AWG |
| Remote Level Control | ACR‑E wired knob (included) |
| Link Port | Epicenter Link for bass processor |
| Dimensions (W × L × H) | 6.1″ × 12.56″ × 2.01″ |
| Net Weight | ~7.2 lb (~3.27 kg) |
