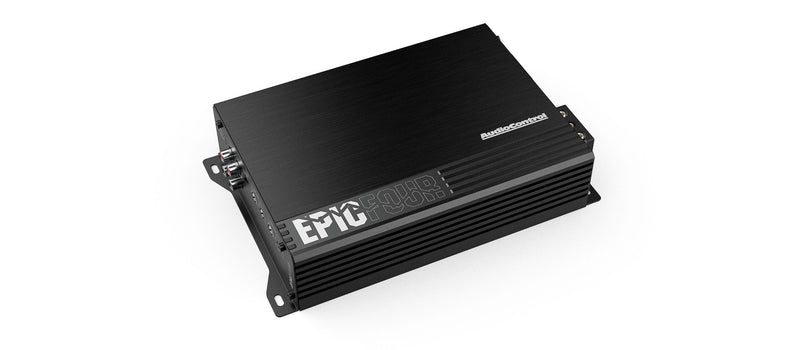

AudioControl EPIC Series 4-Channel 600 Watt Amplifier EPICFOUR
The AudioControl EPIC Series 4-Channel Amplifier delivers top-quality sound in a compact, thermally efficient design. Engineered with a high-current Class D design, it’s 2Ω stable, ensuring maximum power output while maintaining efficiency. With a smart auto-reset protection circuit and solid power/speaker terminals secured by hex screws, the EPIC Series amplifier offers reliable, exceptional sound quality in a rugged, space-saving package.
Specifications:
Digital Class-D Amplifier: Powerful yet compact, designed to handle 2 ohm loads for high output.
Direct Wire Terminals with Hex Screws: Provide solid, reliable connections.
4-Gauge Power Terminal and 8-Gauge Speaker Terminal: Designed for maximum current flow.
91dB+ Signal-to-Noise Ratio (@ CEA Standard): Ultra-efficient idle draw (< 0.5-1A).
Smart Auto Reset Protection Circuit: Multiple protection modes are in place to prevent damage if your amplifier encounters an issue.
Output Over-Current Protection (OCP)
Input Over-Voltage Protection (OVP)
Input Under-Voltage Protection (UVP)
Output DC-Offset Protection (DCP)
Over-Temperature Protection (OTP)
Features:
• Compact High-Power Class D Amplifier
• High-Current Design – 2Ω Stable
• 4 x 100 Watts @ 4 ohms
• 4 x 200 Watts @ 2 ohms
• 2 x 400 Watts @ 4 ohms Bridged
• Smart Auto-Reset Protection Circuit
• 12 dB/octave Linkwitz-Riley Variable High Pass Filters
• Solid Power/Speaker Terminals with Hex Screws
What's in the Box: EPICFOUR, Wrench, Screws, Manual
Inputs: Line-Level Inputs: 500mV – 6V RMS
Outputs: Continuous Power (RMS) @ 14.4V
4 x 100 Watts @ 4 ohms
4 x 200 Watts @ 2 ohms
2 x 400 Watts @ 4 ohms Bridged
Performance:
Frequency Response (+/- 1 dB): 10 Hz – 22 kHz
S/N Ratio: 90.1 dBa, Ref 100 Watts @ 4 ohms
Power / Ground Wire Gauge: 4 AWG
Recommended Fuse Rating: 80 Amps
High Pass Filter: 12dB/octave Linkwitz-Riley, Off, 50 Hz to 500 Hz
Speaker Terminal Wire Gauge: 8 AWG
Dimensions:
6.1″ W x 9.41″ L x 2.01″ H
6.1 lbs
