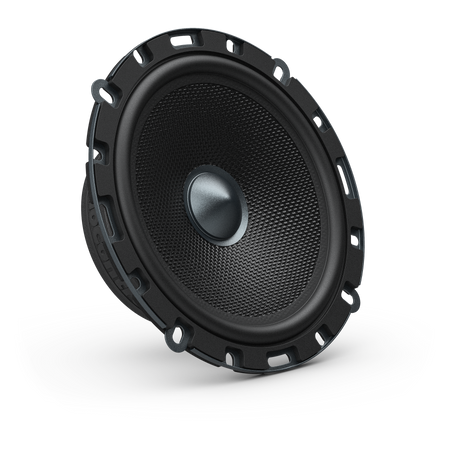

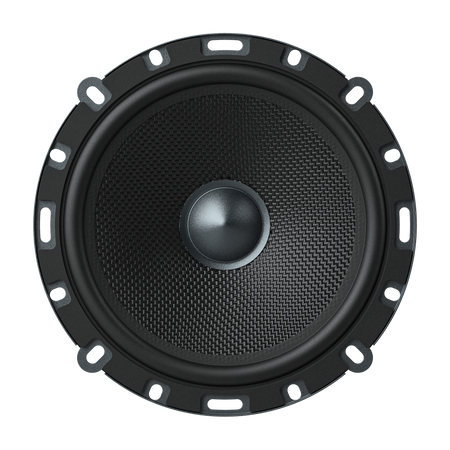

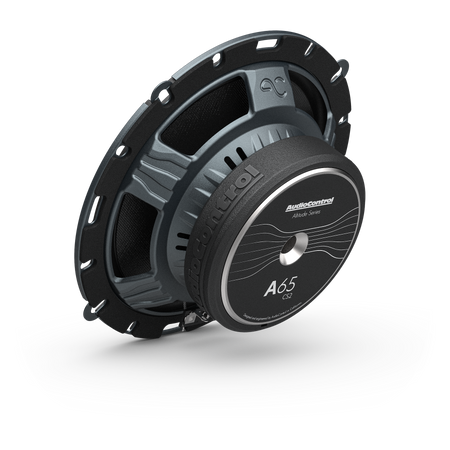

AudioControl Altitude Series car speakers deliver clear, powerful sound with accurate mids and smooth highs. Featuring a glass fiber cone, anti-phasing aluminum dust cap, butyl rubber surround, and silk dome tweeter, these speakers provide enhanced sensitivity, extended frequency response, and reliable performance. Built for drivers who want high-quality car audio with consistent clarity on every drive.
Features:
-
Wide frequency response from a dedicated woofer and tweeter design for balanced sound
-
Lightweight aluminum dust cap improves sensitivity and extends frequency range
-
Precision-molded glass fiber cone delivers warm, accurate audio reproduction
-
Durable butyl rubber surround enhances low-frequency control and performance
-
Silk dome tweeter provides smooth, detailed high-frequency output
-
Slimline steel basket allows for easy installation in tight spaces
-
Matched drivers with passive crossovers ensure efficient power handling and clean signal flow
-
Designed and engineered in the USA for dependable, high-quality performance
Power (RMS): 100 Watts
Impedance: 4 Ohms
DC Resistance (Re): 3.3 ohms
Voice Coil (Tw/Mid): 0.8 / 1.2 in (20 / 30 mm)
System Frequency Response: 65 Hz to 20,000 Hz
Sensitivity*: 86.5 dB 1W / 1 M | 89.5 dB @ 2.83 V / 1 M

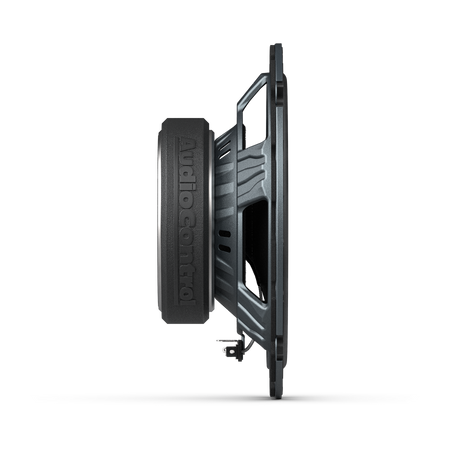

Woofer Dimensions
Overall Diameter (A): 6.53 in / 166 mm
Cut Out Diameter (B): 5.47 in / 139 mm
Mounting Depth (C): 2.04 in / 68 mm
Total Depth (D): 2.40 in / 74 mm
Tweeter Dimensions
Overall Diameter (with housing) (E): 1.67 in / 42.5 mm
Cut Out Diameter (F): 1.37 in / 35 mm
Mounting Depth (G): 0.39 in / 10 mm
Overall Depth (with housing) (H): 0.73 in / 18.5 mm

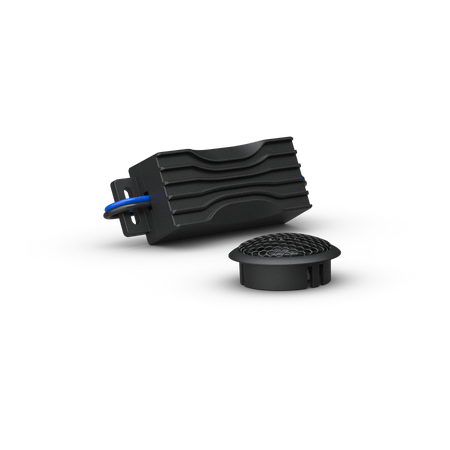

Crossover Dimensions
Length (I): 3.6 in / 92 mm
Width (J): 1.3 in / 34 mm
Height (K): 0.94 in / 24 mm

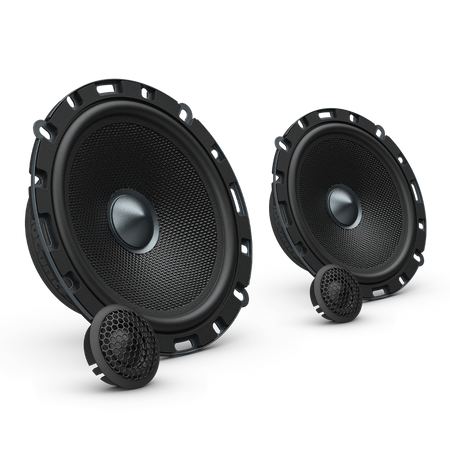

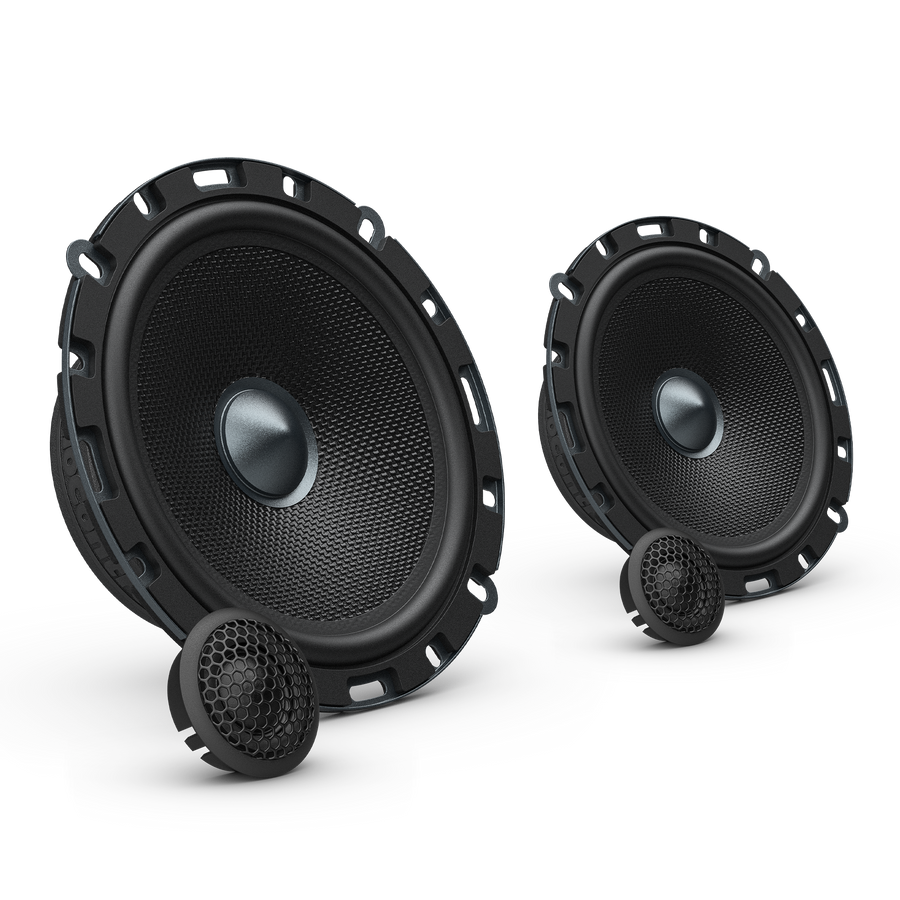

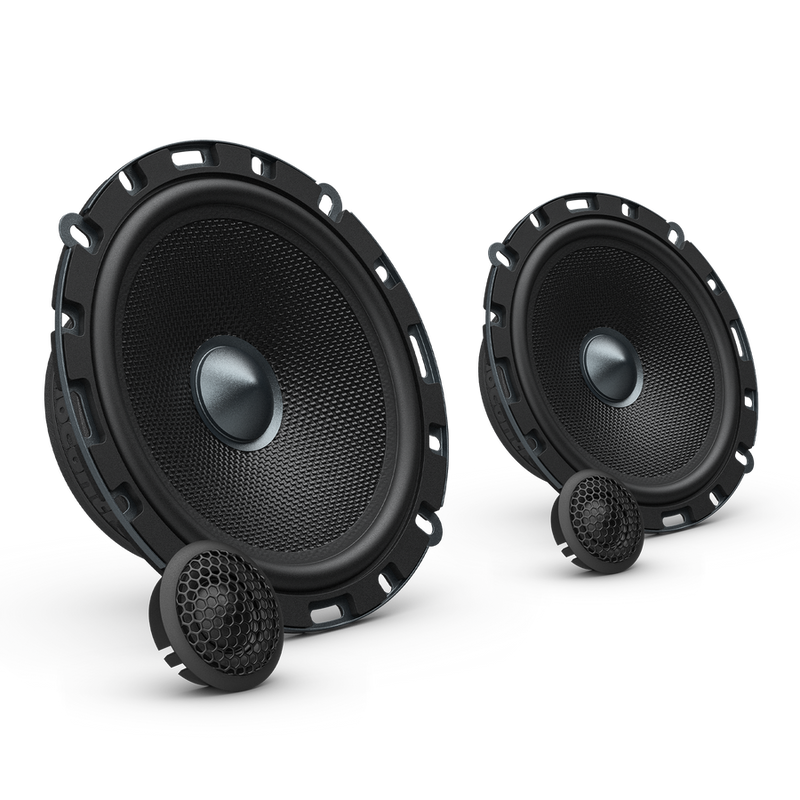

What's In the Box: (2) A65CS2 Speakers & Tweeters, Manual
SKU: AC-A65CS2
UPC: 850038647933
