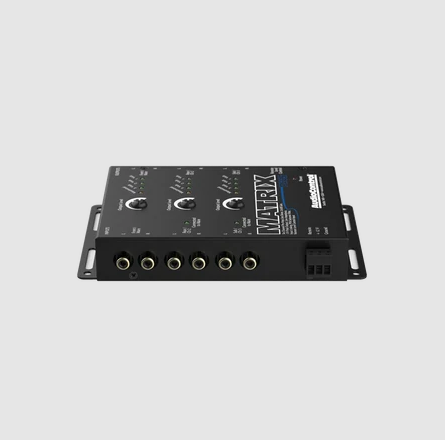

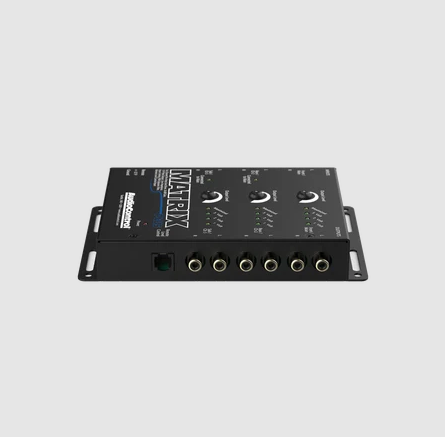

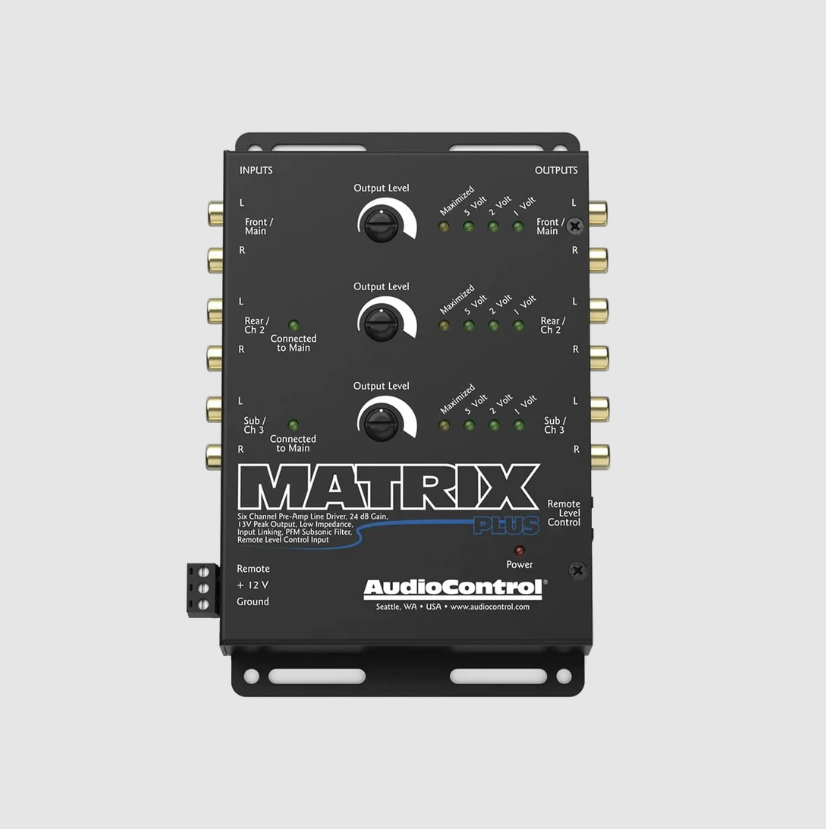

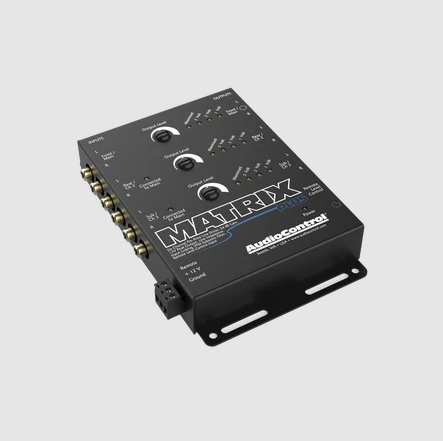

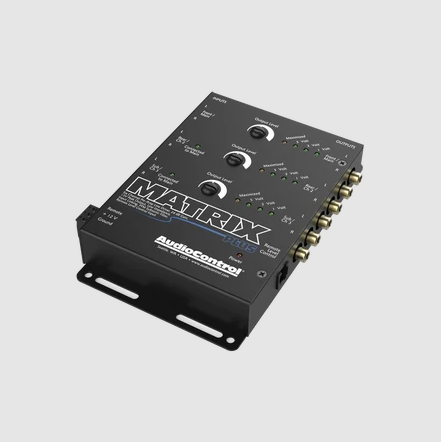

Audio Control MATRIX PLUS 6-Channel Line Driver, 9.5V RMS

When you need to maximize the signal strength and performance of your car audio system, the AudioControl MATRIX PLUS 6-Channel Line Driver provides the signal control and voltage output needed for demanding installations. Featuring 6 channels of input and output with up to 24 dB of gain, the MATRIX PLUS can increase preamp signals up to 9.5V RMS and 13V peak, helping deliver a stronger signal to your amplifiers. Balanced differential inputs, low-impedance outputs, and selectable ground isolation help maintain a clean, low-noise signal throughout the system, making the MATRIX PLUS an ideal solution for multi-amplifier and high-performance audio applications.

Designed for flexible system integration, the MATRIX PLUS features adjustable output levels from -12 dB to +24 dB, output voltage indicator LEDs, and internal input linking that allows two input channels to drive all six outputs. Its built-in 33 Hz PFM subsonic filter helps protect subwoofer systems, while the optional ACR-1 remote level control allows convenient adjustment of overall or subwoofer output levels from the front of the vehicle. With ultra-low 0.005% distortion, a 10 Hz–100 kHz frequency response, and greater than 110 dB signal-to-noise performance, the MATRIX PLUS provides the clean, powerful signal control needed for advanced car audio systems.

Key Features

• 6-Channel Line Driver – Provides 6 channels of input and output for flexible system integration
• 24 dB of Gain – Boosts low preamp signals to provide stronger voltage to connected amplifiers
• High-Voltage Output – Delivers up to 9.5V RMS and 13V peak output
• Balanced Differential Inputs – Helps reduce noise and interference along RCA signal runs
• Low-Impedance Outputs – Provides reliable signal transmission to multiple amplifiers
• Adjustable Output Level – Offers -12 dB to +24 dB of output gain for precise system matching
• Internal Input Linking – Allows two input channels to drive all six outputs for flexible SPL and multi-amplifier configurations
• PFM Subsonic Filter – Provides an 18 dB/octave filter at 33 Hz for subwoofer output protection
• Optional ACR-1 Remote Control – Allows convenient remote adjustment of preamp or subwoofer signal levels
• Selectable Ground Isolation – Helps eliminate unwanted ground-loop noise
• Output Voltage Indicators – LED indicators provide visual monitoring of output voltage
• Ultra-Low Distortion – Features just 0.005% total harmonic distortion for clean signal reproduction
• Wide Frequency Response – Covers 10 Hz–100 kHz ±1 dB
• High Signal-to-Noise Ratio – Greater than 110 dB for quiet, clean operation
• Conformally Coated PCB – Adds increased resistance to environmental conditions

Specifications

• Model: MATRIX PLUS
• Product Type: 6-Channel Line Driver
• Input Channels: 6
• Output Channels: 6
• Preamp Inputs: 3 (6 channels)
• Preamp Outputs: 3 (6 channels)
• Input Gain: 24 dB
• Input Impedance: 20 kΩ
• Maximum Output Level: 9.5V RMS / 13V Peak
• Output Gain: -12 dB to +24 dB
• Output Impedance: 50 Ω
• Total Harmonic Distortion: 0.005%
• Frequency Response: 10 Hz–100 kHz ±1 dB
• Signal-to-Noise Ratio: >110 dB
• Subsonic Filter: 33 Hz / 18 dB per octave
• Remote Control Input: Yes
• Optional Remote: ACR-1
• Power Supply: Transformer Isolated PWM
• Current Draw: 250 mA
• Recommended Fuse: 1A
• Dimensions: 4.6" W × 7.1" D × 1.2" H
• Weight: 1.3 lbs (0.6 kg)

Package Includes

• 1 × AudioControl MATRIX PLUS 6-Channel Line Driver
• 1 × Power Connector
• 1 × Owner's Manual

SKU: AC-MATRIXPLUS
UPC: 851523007904
