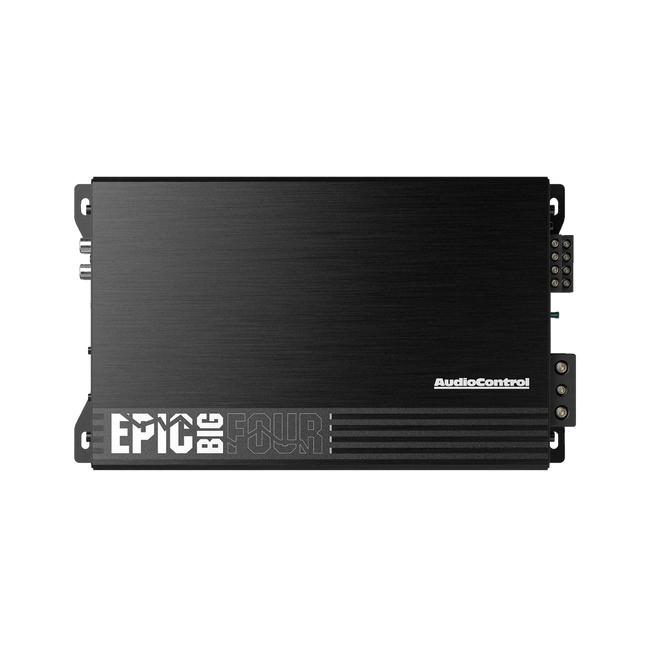

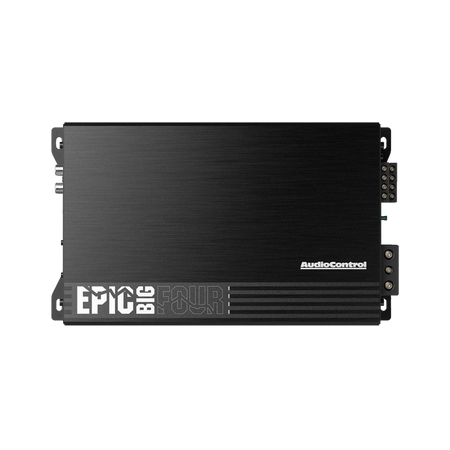

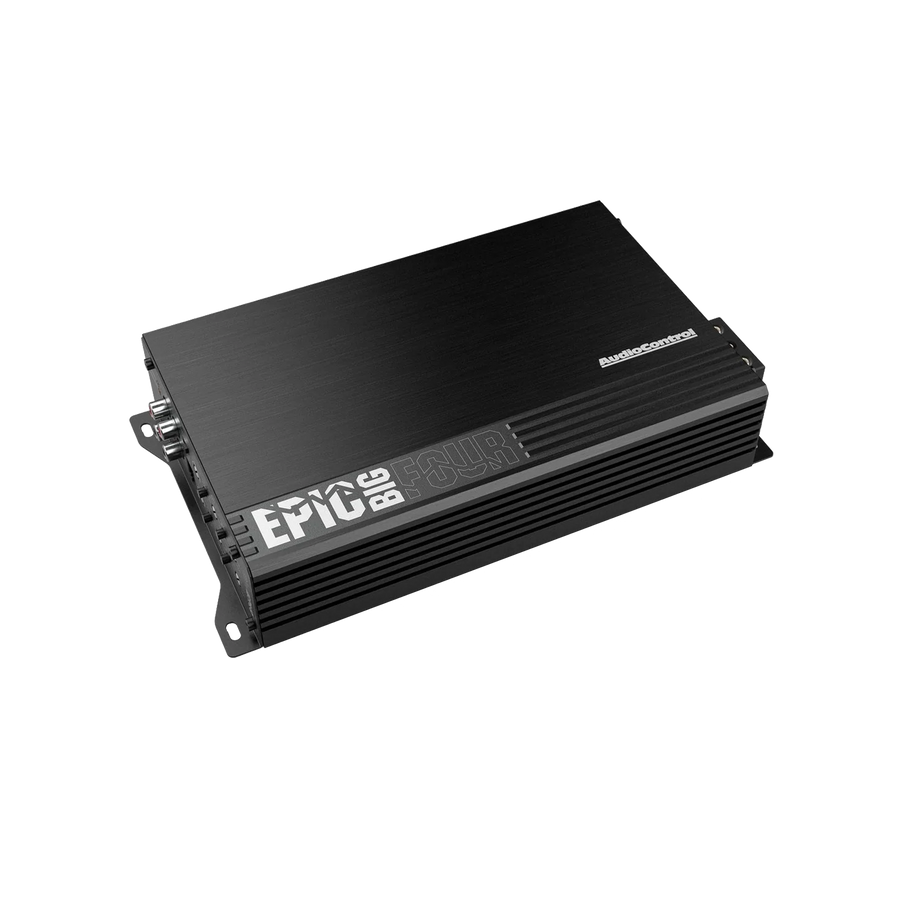

Audio Control EPICBIGFOUR EPIC Series Amplifiers 4-Channel Amplifier, 1400W RMS
Experience powerful, efficient sound with the AudioControl EPICBIGFOUR 4-Channel Amplifier. Delivering 1400W RMS, this compact Class D amp is 2-ohm stable, features smart protection circuits, and supports Epicenter bass restoration for deep, clean bass.
Features:
-
Compact, High-Power Class D Amplifier
Engineered for efficiency and performance in a space-saving design. -
High-Current, 2-Ohm Stable Architecture
Delivers consistent power output even under demanding loads. - Power Ratings: 4 x 200W @ 4 ohms | 4 x 350W @ 2 ohms | 2 x 650W @ 4 ohms (bridged)
-
Advanced Protection Circuitry
Smart auto-reset system safeguards against thermal, voltage, and current issues. -
Precision Filters
12 dB/octave Linkwitz-Riley high-pass and low-pass filters for accurate tuning. -
Durable Terminal Design
Heavy-duty power and speaker terminals secured with hex screws for reliable connections.
Specifications:
Inputs
Line-Level Inputs: 500mV – 12V RMS
Outputs (RMS @ 14.4V)
4 x 200 Watts @ 4 ohms
4 x 350 Watts @ 2 ohms
2 x 650 Watts @ 4 ohms (Bridged)
Performance
Frequency Response (±1 dB): 10 Hz – 22 kHz
Signal-to-Noise Ratio: 89 dBa (Ref: 200W @ 4 ohms)
Power/Ground Wire Gauge: 4 AWG
Speaker Terminal Wire Gauge: 8 AWG
Recommended Fuse Rating: 150 Amps
Filters
High Pass Filter: 12 dB/octave Linkwitz-Riley, Off, 50 Hz – 5000 Hz
Low Pass Filter: 12 dB/octave Linkwitz-Riley, Off, 50 Hz – 5000 Hz
In the Box
EPICBIGFOUR Amplifier
Wrench
Screws
Manual
Dimensions
6.1″ W x 10.56″ L x 2.01″ H
SKU: AC-EPICBIGFOUR
UPC: 810194210082
