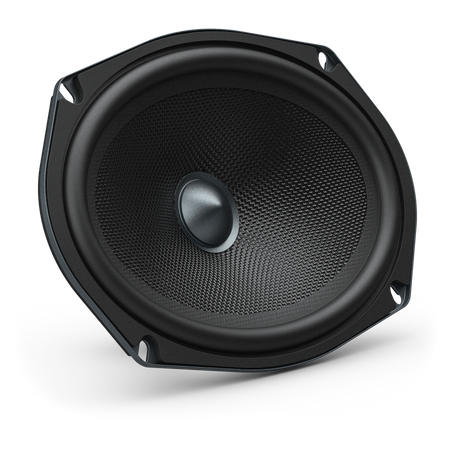

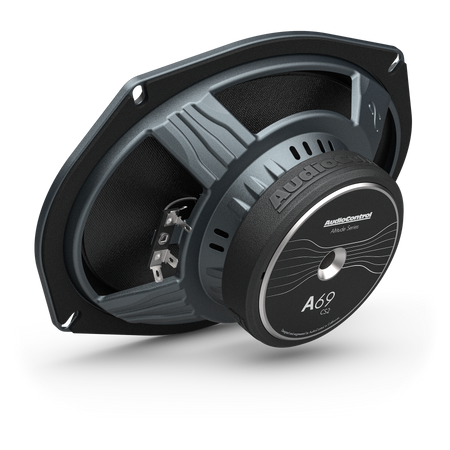

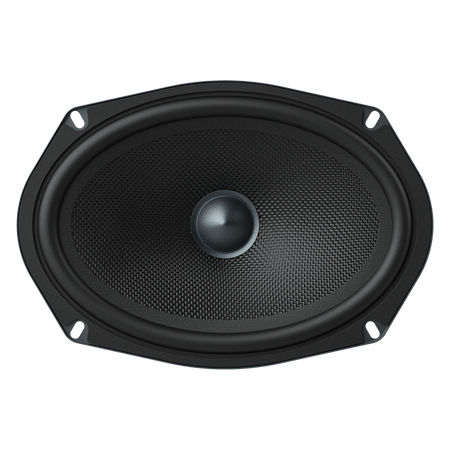

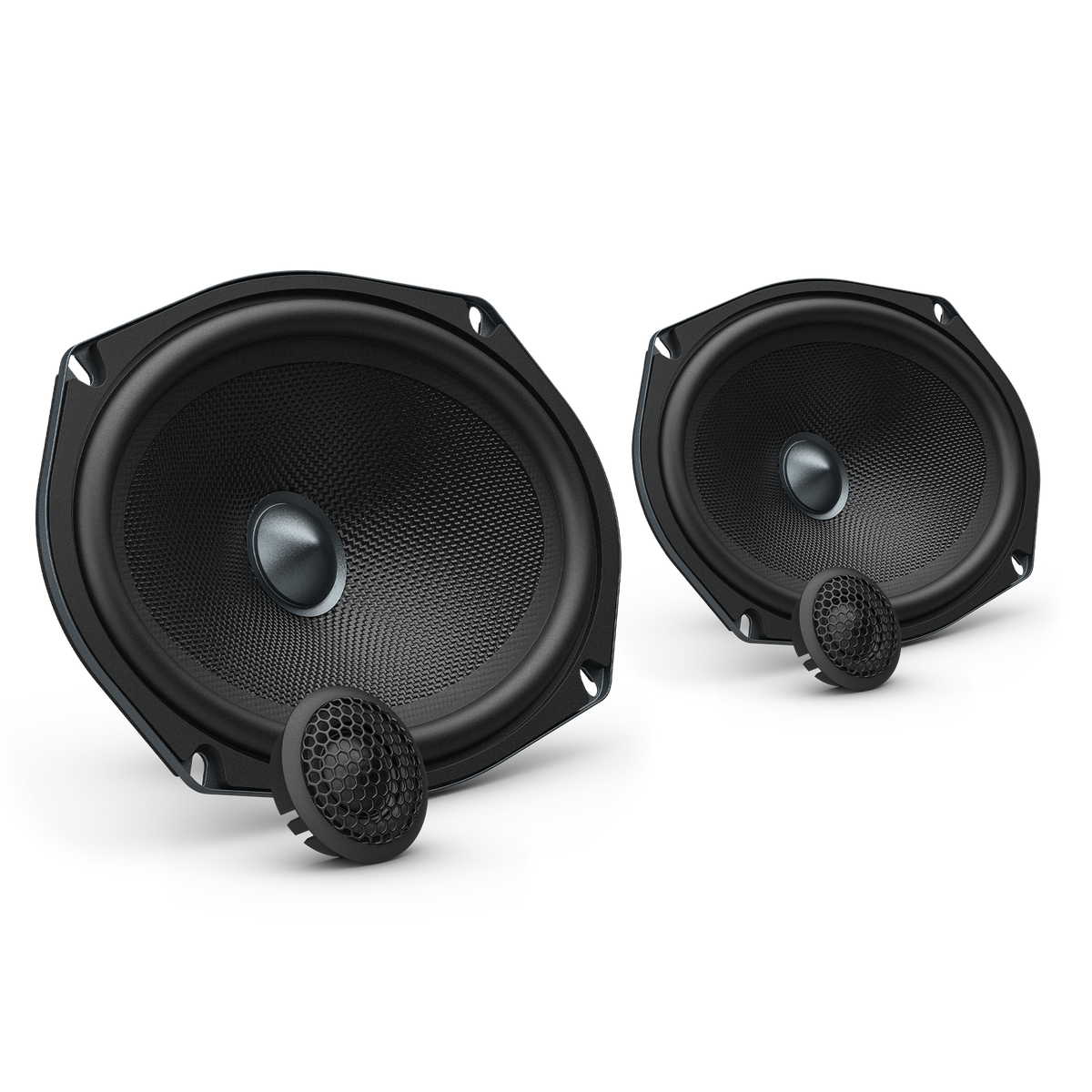

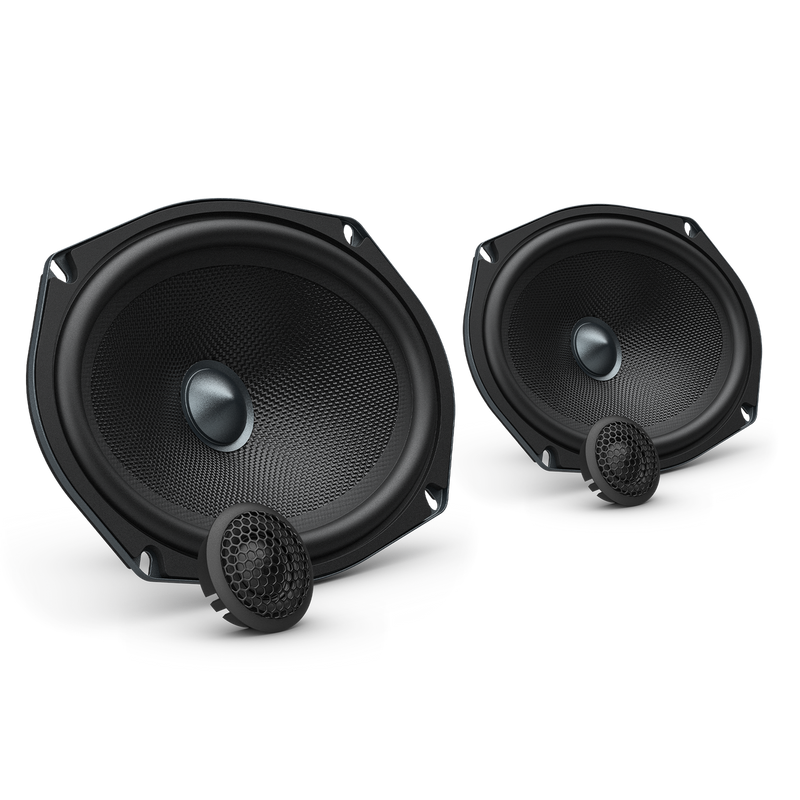

Audio Control Altitude A69CS2 6x9″ Component Speakers with 1″ Tweeters – 100W RMS, 4 Ohm
AudioControl A69CS2 Altitude Series 6x9″ Component Car Speakers deliver clear, full-range sound with rich lows and detailed highs. Featuring a precision-molded glass fiber cone, anti-phasing aluminum dust cap, butyl rubber surround, and silk dome tweeter, these 2-way component speakers provide balanced, immersive car audio. Perfect for upgrading OEM audio systems, the Altitude Series ensures high-quality sound performance on every drive.
Features:
-
Wide Frequency Response: Separate woofer and tweeter for balanced, full-range sound
-
Aluminum Dust Cap: Boosts sensitivity and extends frequency range
-
Glass Fiber Cone: Provides warm, accurate audio
-
Butyl Rubber Surround: Enhances bass performance and control
-
Silk Dome Tweeter: Smooth, detailed high frequencies
-
Slim Steel Basket: Easy, space-saving installation
-
Optimized Efficiency: Matched drivers and passive crossovers for clean signal and power delivery
-
Made in USA: Precision engineering and reliable performance
Specifications:
Power (RMS): 100 Watts
Impedance: 4 Ohms
DC Resistance (Re): 3.3 ohms
Voice Coil (Tw/Mid): 0.8 / 1.2 in (20 / 30 mm)
System Frequency Response: 55 Hz to 20,000 Hz
Sensitivity*: 86.9 dB 1W / 1 M | 89.9 dB @ 2.83 V / 1 M
Woofer Dimensions
Overall Diameter (A): 6.43 x 9.27 in / 163.5 x 235.5 mm
Cut Out Diameter (B): 5.67 x 8.23 in / 144 x 209 mm
Mounting Depth (C): 2.67 in / 68 mm
Total Depth (D): 2.91 in / 74 mm
Tweeter Dimensions
Overall Diameter (with housing) (E): 1.67 in / 42.5 mm
Cut Out Diameter (F): 1.37 in / 35 mm
Mounting Depth (G): 0.39 in / 10 mm
Overall Depth (with housing) (H): 0.73 in / 18.5 mm

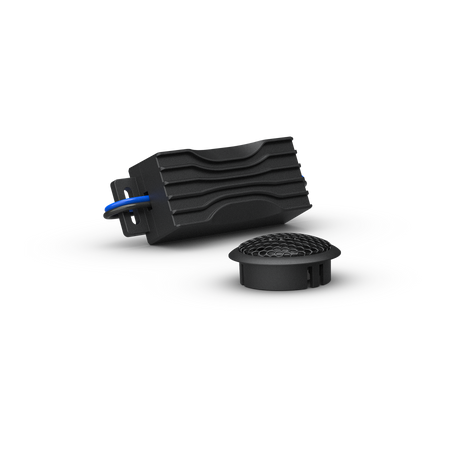

Crossover DImensions
Length (I): 3.6 in / 92 mm
Width (J): 1.3 in / 34 mm
Height (K): 0.94 in / 24 mm
What's In the Box: (2) A69CS2 Speakers & Tweeters, Manual
SKU: AC-A69CS2
UPC: 850038647957
