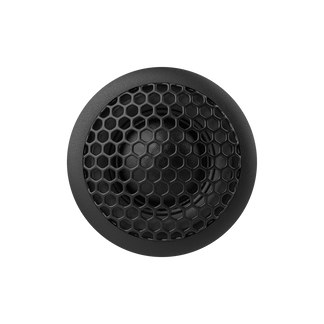

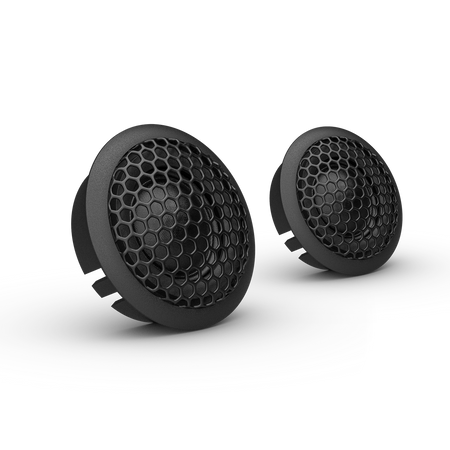

Audio Control A1 Altitude Series 1″ Component Tweeters – 50W RMS, 4 Ohm (Pair)
Engineered for clarity and depth, the A1 tweeter uses a silk dome diaphragm for smooth, accurate sound, housed in a durable high-strength polymer. The AudioControl Altitude A1 is a precision pair of component tweeters designed for easy installation and seamless system integration.
Features:
-
Silk Dome Diaphragm: Provides smooth, accurate sound reproduction with minimal distortion
- High-Strength Polymer Housing: Offers enhanced mechanical properties & durability
- Wide-Bandwidth Response: Enables seamless system integration
- Compact Design: Perfect for vehicles with limited mounting space or challenging installation locations
-
Simplified Installation: Quick-release housing, direct wiring, and universal
sizing ensure hassle-free installation - Designed and Engineered in USA: Experience the excellence of American ingenuity
Specifications:
Power (RMS): 50 Watts
Impedance: 4 Ohms
DC Resistance (Re): 3.2 ohms
Voice Coil: 0.8 in (20 mm)
System Frequency Response: 1,500 Hz to 20,000 Hz
Sensitivity*: 86.5 dB 1W / 1 M | 89.5 dB @ 2.83 V / 1 M
Dimensions (Tweeter)
Overall Diameter (with housing): 1.67 in / 42.5 mm
Cut Out Diameter: 1.37 in / 35 mm
Mounting Depth: 0.39 in / 10 mm
Overall Depth (with housing): 0.73 in / 18.5 mm

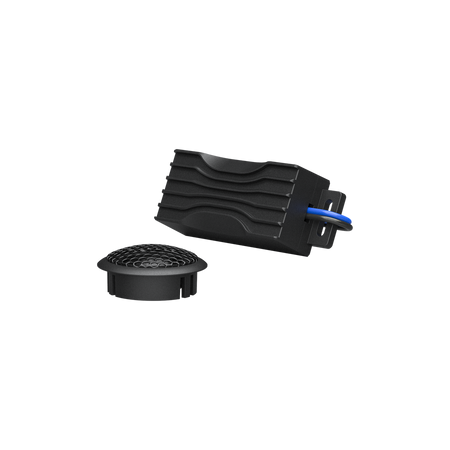

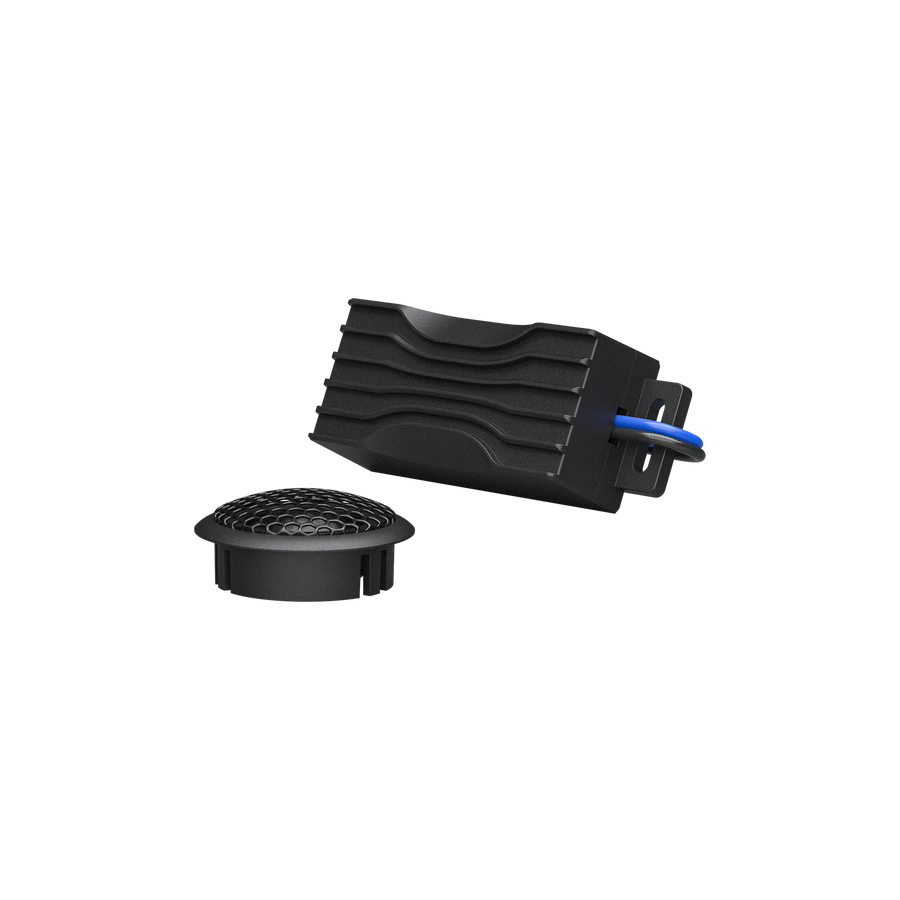

Dimensions (Crossover)
Length: 3.6 in / 92 mm
Width: 1.3 in / 34 mm
Height: 0.94 in / 24 mm
In the Box: (2) A1 1" Tweeters, Manual
SKU: AC-A1
UPC: 850038647896
