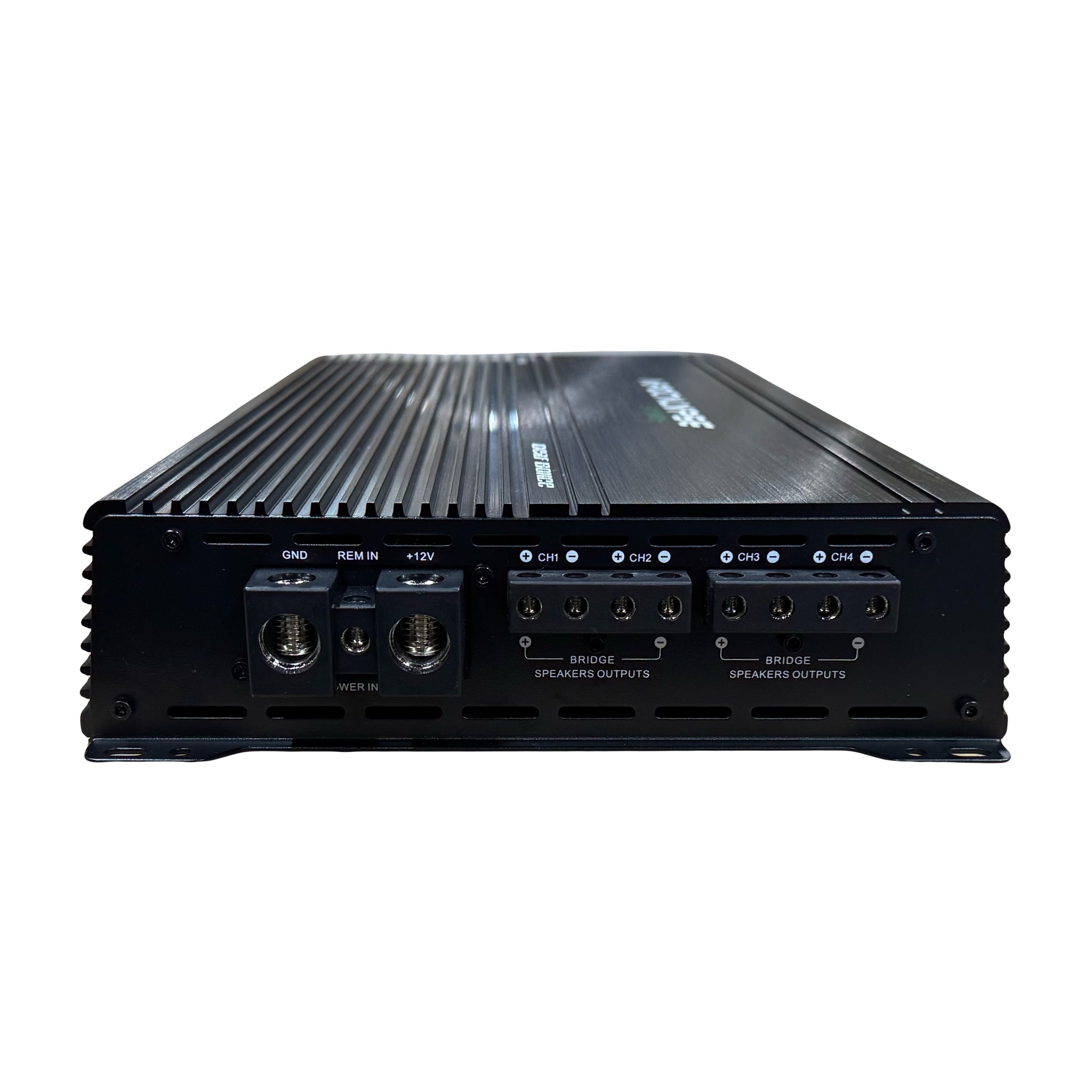

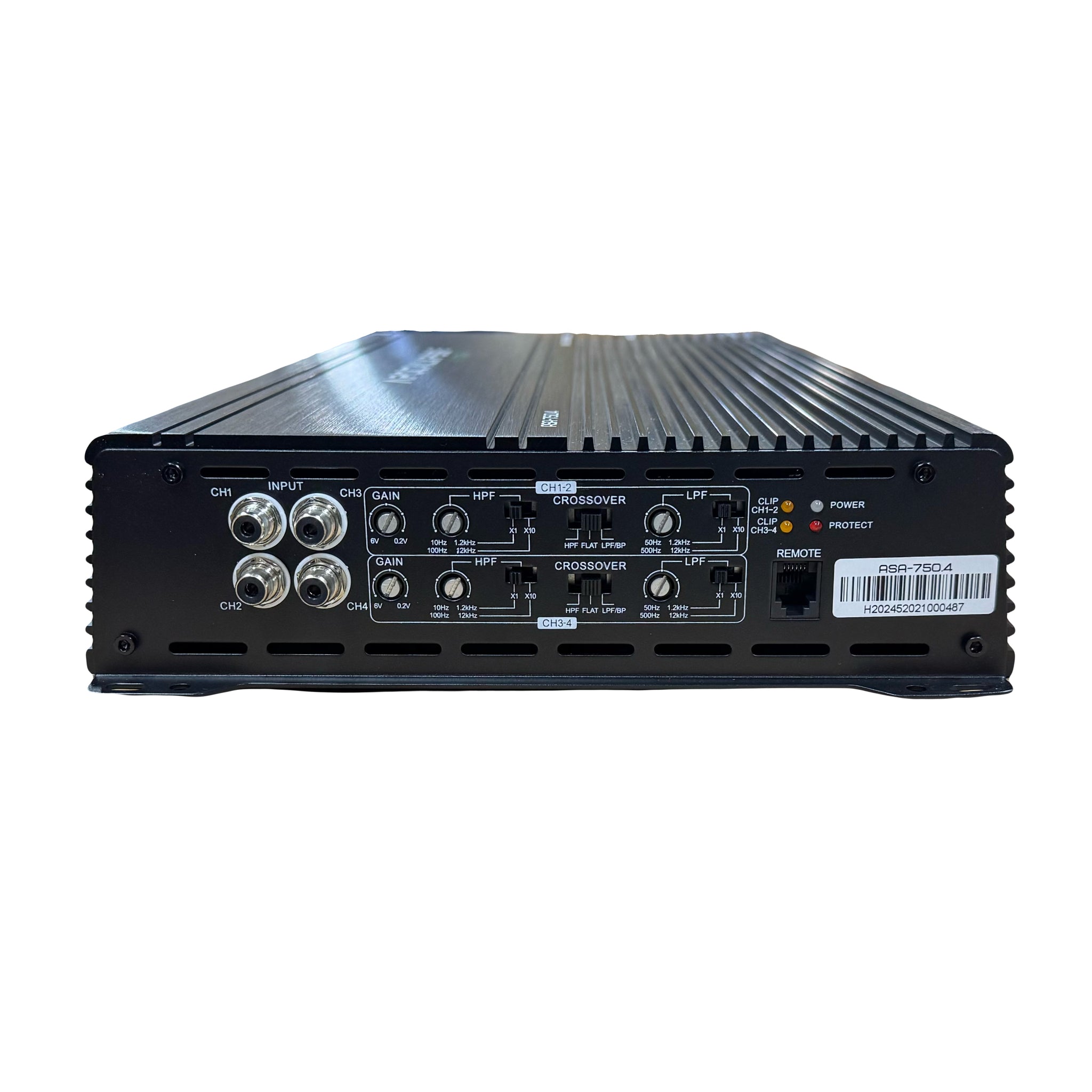

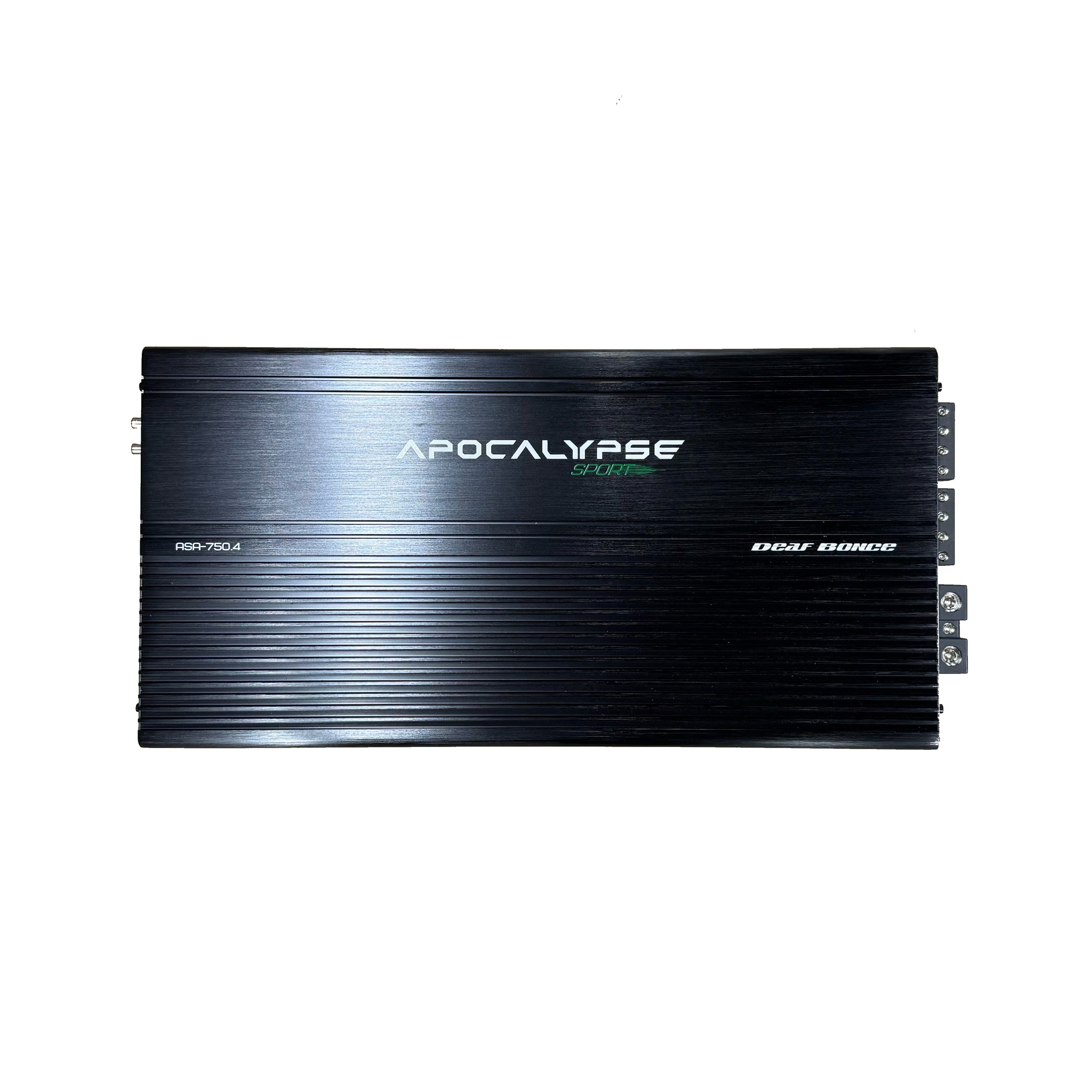

Apocalypse ASA-750.4 | 750 Watt 4-Channel Amplifier
The Apocalypse ASA-750.4 750 Watt 4-Channel Amplifier is a powerhouse designed to elevate your car audio experience. With its impressive power output, this Class D amplifier delivers 750 watts per channel at 1 Ohm, ensuring your music is loud and clear. It features a wide frequency response from 10 Hz to 20,000 Hz, allowing for detailed sound reproduction across all frequencies. The built-in low pass and high pass filters provide precise sound tuning, while the high signal-to-noise ratio ensures clean and distortion-free audio. Compact and robust, the amplifier's durable construction and versatile performance make it an excellent choice for both casual listeners and audiophiles looking to enhance their car audio systems. Whether you're upgrading your current setup or starting fresh, the Apocalypse ASA-750.4 offers the power and flexibility needed for superior sound quality.
Features:
- High Power Output: Delivers 750 watts per channel at 1 Ohm for powerful performance.
- Wide Frequency Response: Covers 10 Hz to 20,000 Hz for detailed sound reproduction.
- Built-in Filters: Includes low pass and high pass filters for precise sound tuning.
- Compact and Durable: Robust construction with dimensions of 18.9 x 9.45 x 2.5 inches for easy installation.
Specifications:
| Specification | Detail |
|---|---|
| Model | ASA‑750.4 |
| UPC | 4650185710797 |
| Class | D |
| Channels | 4 |
| Frequency Response | 10 Hz – 20 kHz |
| Power @ 1 Ω RMS (14.4 V) | 750 W x 4 |
| Power @ 2 Ω RMS (14.4 V) | 490 W x 4 |
| Power @ 4 Ω RMS (14.4 V) | 310 W x 4 |
| Bridged Power @ 2 Ω | 1,500 W x 2 |
| Bridged Power @ 4 Ω | 980 W x 2 |
| Min Load per Channel | 1 Ω |
| Min Bridged Load | 2 Ω |
| Low‑Pass Filter Range | 50 Hz–1.2 kHz / 500 Hz–12 kHz |
| High‑Pass Filter Range | 10 Hz–1.2 kHz / 100 Hz–12 kHz |
| Crossover Slope | 12 dB/octave |
| Input/Output Terminal Size | 0 Ga / 8 Ga |
| Operating Voltage | 9–16 V DC |
| Signal-to-Noise Ratio | ≥ 91 dB |
| Physical Dimensions (L×W×H) | 18.9″ × 9.45″ × 2.5″ |
