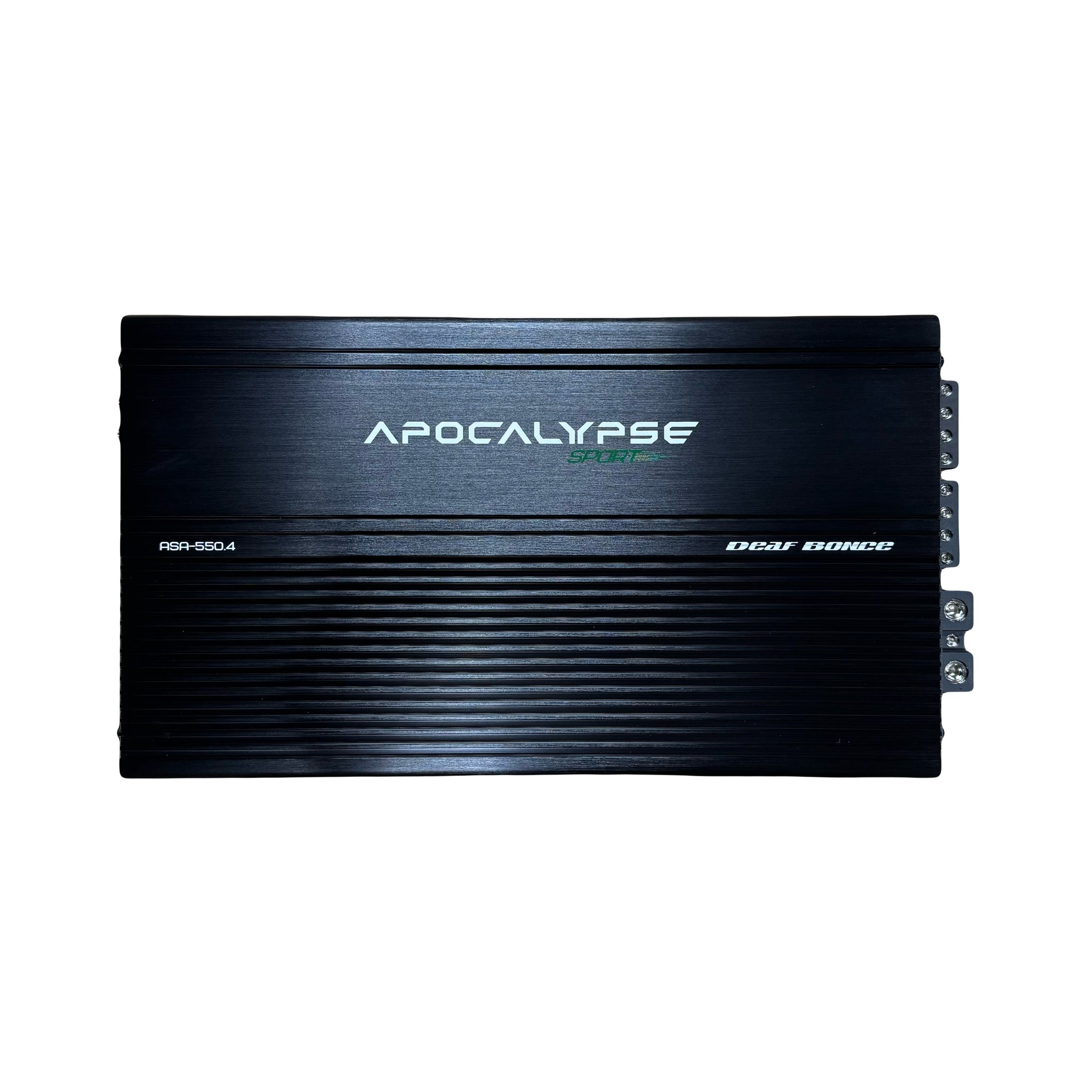

Apocalypse ASA-550.4 | 550 Watt 4-Channel Amplifier
Brand New with Manufacturer Warranty
Authorized Dealer
Free Shipping
Secure Payments
Regular price
$439.90 USD
The Apocalypse ASA-550.4 is a high-performance 4-channel amplifier designed to deliver powerful and clear audio. With a total power output of 550 watts, it ensures your music sounds great across all frequencies. This amplifier is versatile and compact, making it suitable for various audio setups and installation environments. Its adjustable filters and crossover features help fine-tune the sound to your liking, providing a high-quality listening experience with minimal distortion.
- High Efficiency: Class D design for efficient power usage and minimal heat generation.
- Bridged Power: Capable of delivering 1100W x 2 at 2 Ohms for powerful bridged connections.
- Sound Quality: Signal-to-noise ratio of ≥ 90 dB ensures minimal distortion and clear audio.
- Wide Frequency Range: Covers 10-20,000 Hz for comprehensive sound reproduction.
Specifications:
| Specification | Details |
|---|---|
| Model | ASA‑550.4 |
| Class | D |
| Channels | 4 |
| Frequency Response | 10 Hz – 20 kHz |
| 1 Ω RMS Power (14.4 V) | 550 W × 4 |
| 2 Ω RMS Power (14.4 V) | 350 W × 4 |
| 4 Ω RMS Power (14.4 V) | 225 W × 4 |
| Bridge @ 2 Ω | 1,100 W × 2 |
| Bridge @ 4 Ω | 700 W × 2 |
| Min Load (per channel) | 1 Ω |
| Min Load (bridged) | 2 Ω |

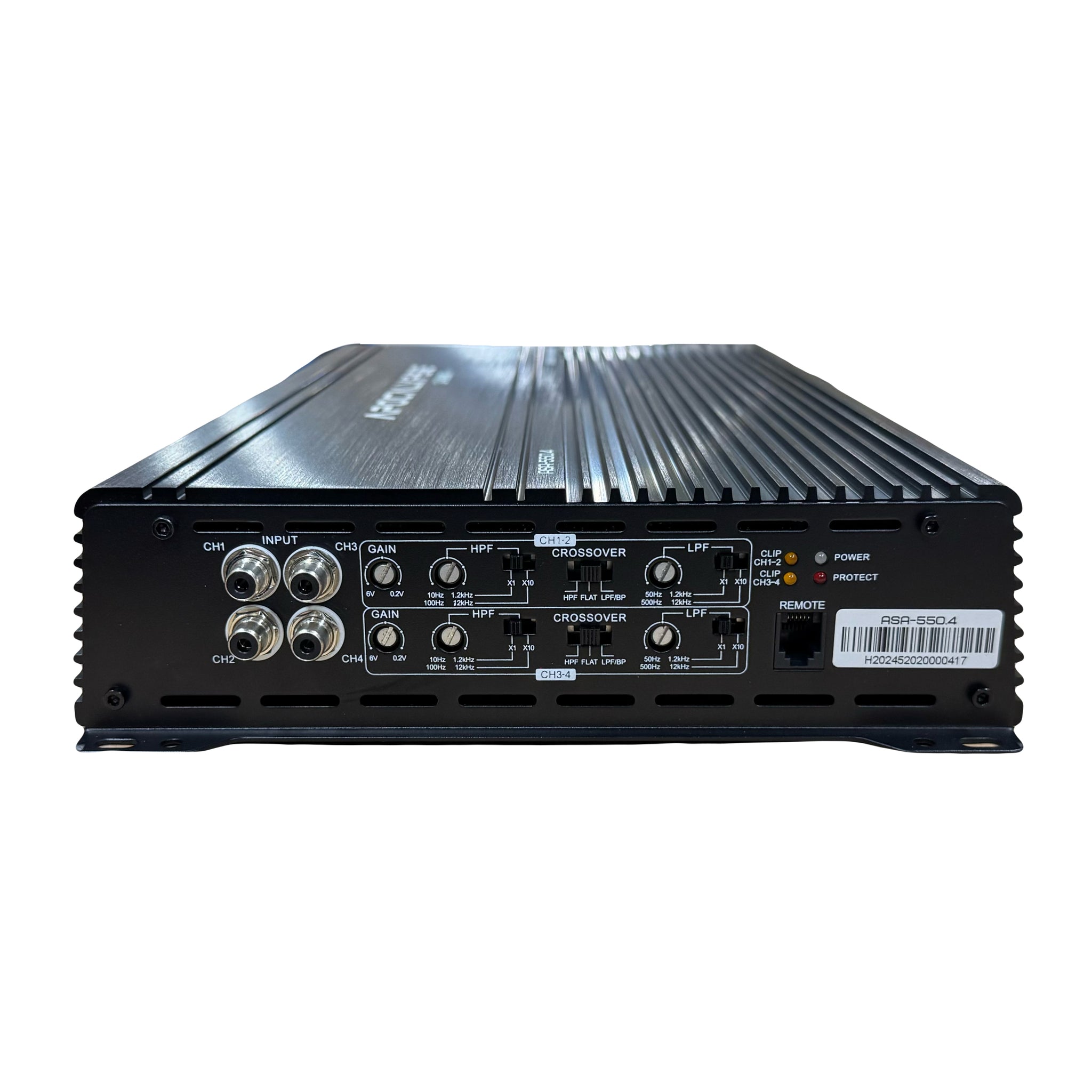

| Low-Pass Filter | 50–1,200 Hz / 500–12,000 Hz |
| High-Pass Filter | 10–1,200 Hz / 100–12,000 Hz |
| Crossover Slope | 12 dB/oct |
| Inputs | 0 Ga |
| Outputs | 8 Ga |
| Operating Voltage | 9–16 V |
| Signal-to-Noise Ratio | ≥ 90 dB |
| Dimensions (L×W×H) | 16.93″ × 9.45″ × 2.5″ |
| UPC | 4650185710827 |
