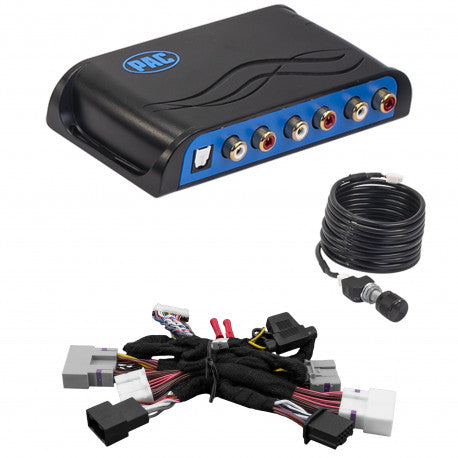

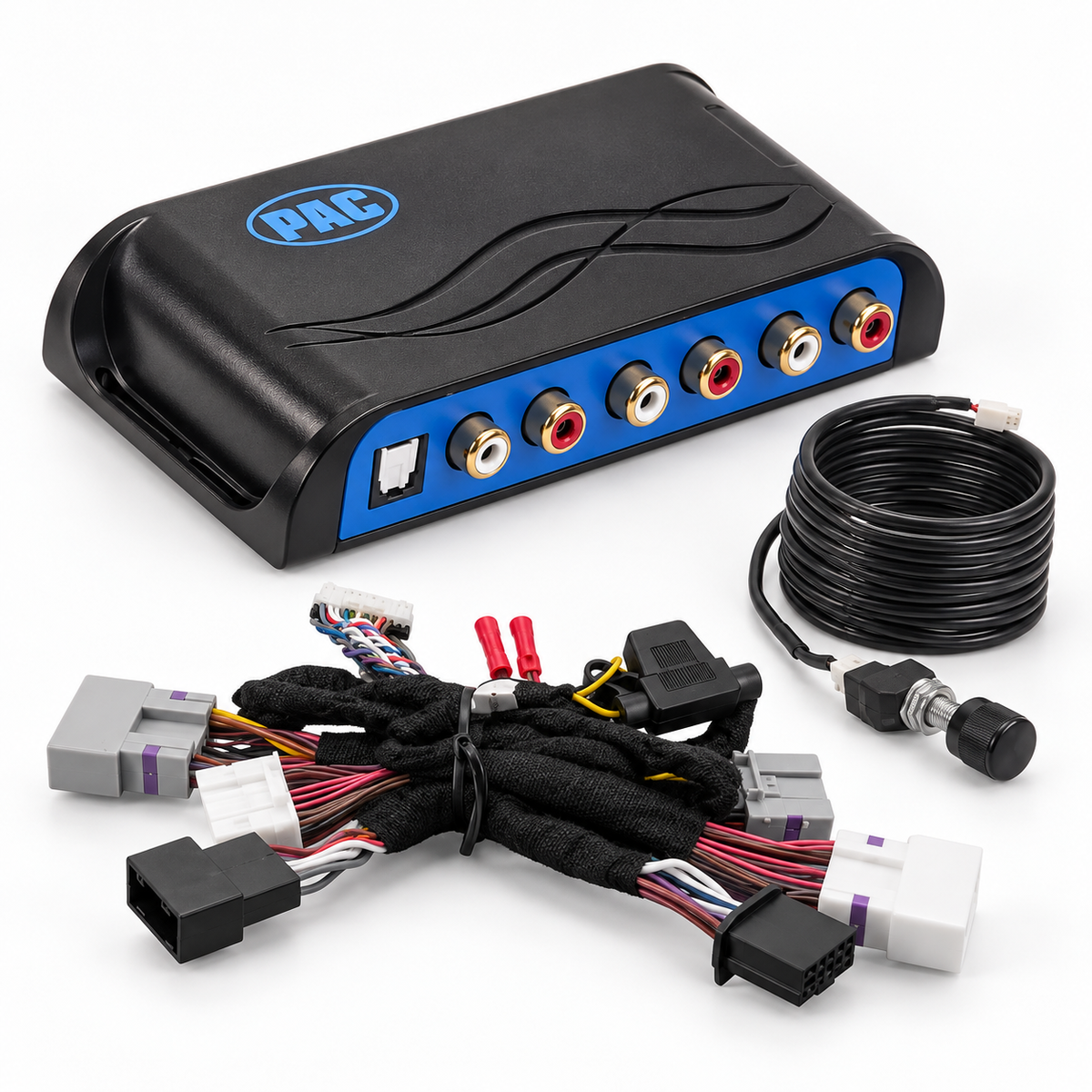

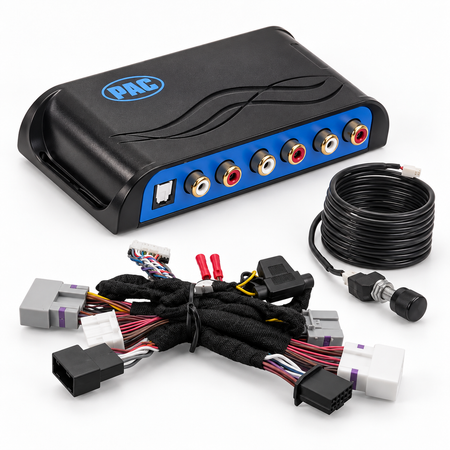

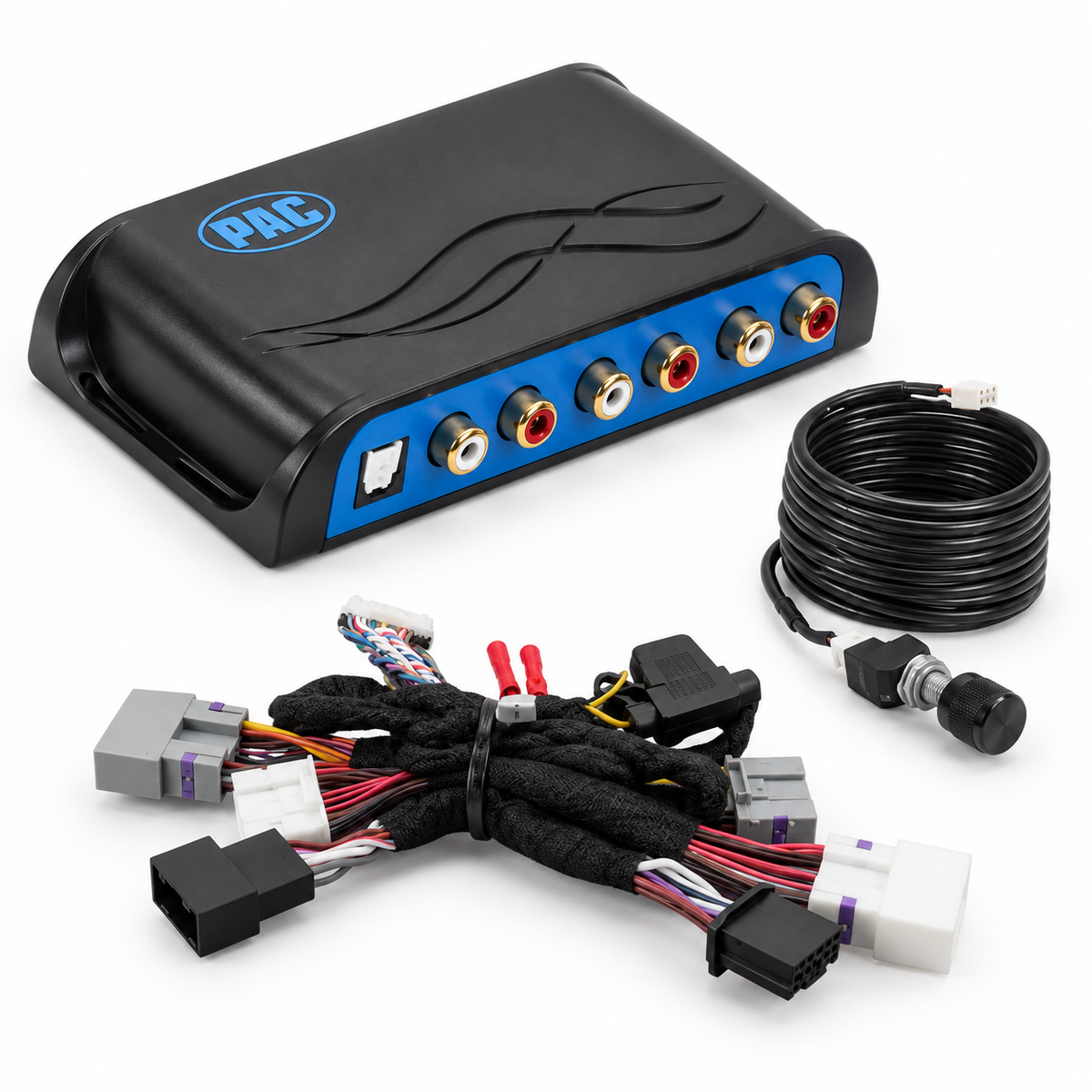

AP4-TY14 Amplifier Integration Interface for Select 2022+ Toyota Vehicles with Premium Amplified Systems
AmpPRO simplifies the installation of upgraded amplifiers in select amplified sound systems. With AmpPRO, you can improve the audio performance while keeping the original radio’s fit, finish, and features for select 2022+ Toyota Vehicles with Premium Amplified Systems Models with 30, 28, and 10 Pin Connectors
Features:
- Upgrade the entire sound system or just part of it thanks to the retention of the original amplifier
- Variable volume, fader, balance, bass, mid and treble audio settings
- Front, rear, sub preamp outputs (5 volt RMS)
- Customized OE bass, mid and treble center frequency selection
- Retains Bluetooth audio, Navigation prompts, and all warning chimes
- Plug-and-Play installation
- Sublevel controller included
- Optional TOSLINK optical output (APA-TOS1 sold separately)
What's int he Box: AmpPRO module, Harness, Bass knob, Knob harness, Manual
Vehicle Compatibility:
| Year(s) | Make | Model | ||
|---|---|---|---|---|
| 2023 | TOYOTA | COROLLA HATCHBACK | ALL TRIM LEVELS | |
| 2024 | TOYOTA | HIGHLANDER | ALL TRIM LEVELS | |
| 2024 | TOYOTA | LAND CRUISER | ALL TRIM LEVELS | |
| 2024 | TOYOTA | TACOMA | ALL TRIM LEVELS | |
| 2022-2024 | TOYOTA | TUNDRA | ALL TRIM LEVELS |
| Specification | Details |
|---|---|
| Product Name | PAC AmpPRO 4 Amplifier Integration Interface – AP4‑TY14 |
| Compatibility | Select 2022+ Toyota models: Corolla Hatchback (2023), Highlander (2024), Land Cruiser (2024), Tacoma (2024), and Tundra (2022–2024) |
| Purpose | Enables installation of upgraded amplifiers while retaining OEM features (Bluetooth, chimes, navigation prompts) |
| Audio Controls | Variable volume, fader, balance, bass, mid, treble; front, rear, sub preamp outputs (5 V RMS); custom frequency settings |
| Retained Features | Retains factory amplifier, Bluetooth audio, navigation prompts, warning chimes; includes sublevel controller |
| Installation | Plug-and-play with harness; no cutting needed; includes module, harness, bass knob, knob harness, manual |
| Optional Accessory | TOSLINK optical output available separately (APA-TOS1) |
| UPC | 609098907330 |
| Weight | Approx. 10 lbs |
| Warranty | Generally includes a 1–2 year limited warranty (vendor dependent) |
