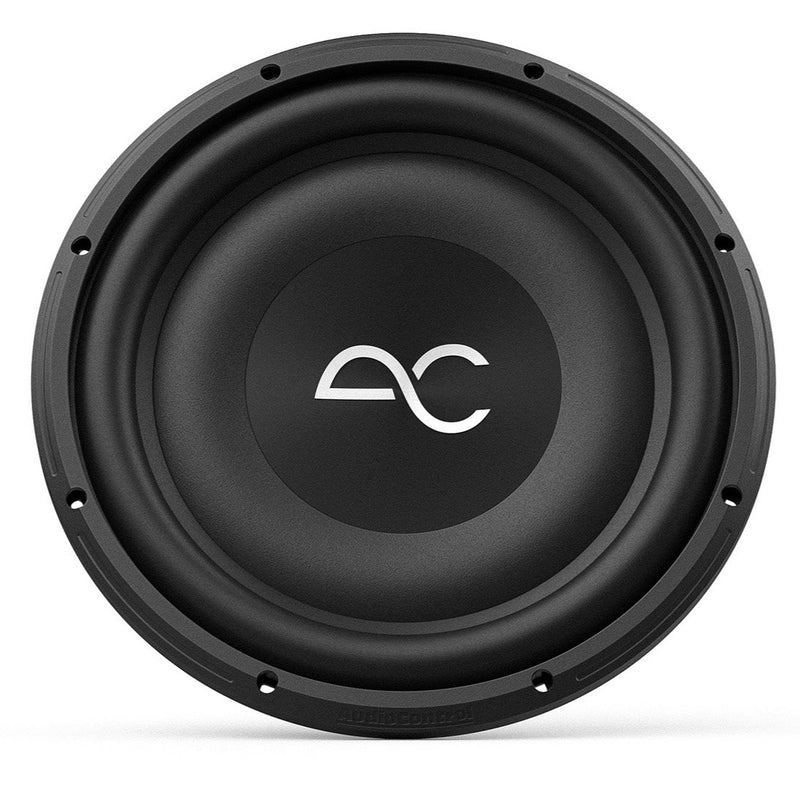

Audio Control SPC-12S4 Space Series 12-Inch Single 4-Ohm Low Profile Subwoofer

Space Series 12-Inch Single 4-Ohm Low Profile Subwoofer

Enhance your vehicle's audio system with the Space Series Subwoofers, delivering powerful bass in a sleek, slim design. These subwoofers are engineered for maximum low-frequency output in shallow spaces, ensuring deep, rich bass with weather-resistant durability.

Features:

• Low-Profile Shallow Mount Subwoofer
• Fiber Matrix Injection Molded Polypropylene Cone
• Weather-Resistant Design
• 3-Layer High Temp Voice Coil Former
• Optimal Thermal Efficiency
• Wrap-Sealed Rubber Gasket to Protect Enclosure Interior
• Removable Subwoofer Grille Included

Pairings:

• A single Space Series 4 ohm subwoofer pairs fabulously with the ACM-2.300 or ACX-300.2 amplifiers for conservative to moderate listeners. For higher output levels, consider the LC-1.800.
• LC-5.1300 or D-5.1300 amplifiers deliver rich, robust output, with channel 5 being an excellent match.
• For systems with two Space Series 4 ohm subwoofers, LC-1.800 is recommended.
• Consult an expert for configurations with three or more subwoofers.

Specifications (Thiele/Small Parameters):

• Nominal Impedance (Z): 4 ohms
• DC Resistance (Re): 3.2 ohms
• Resonance Frequency (Fs): 30.7061 Hz
• Piston Area (Sd): 0.0511 m2
• Force Factor (BL): 12.4924 T.m
• Mechanical Q Factor (Qms): 3.7494
• Electrical Q Factor (Qes): 0.5764
• Total Q Factor (Qts): 0.4996
• Sensitivity 1W/M (SPL): 87.3024
• Mechanical Compliance (Cms): 0.1844 mm/N
• Moving Mass (Mms): 145.7101 g
• Linear Excursion (Xmax): 9 mm
• Volume Acoustic Compliance (Vas): 67.1494 Ltr/2.371348 cu ft
• Reference Efficiency (NO.): 0.32% RMS
• Power (Pe): 400 Watts
• Frequency Response: 20-250 Hz
• Voice Coil Diameter: 2.5 in/63.5 mm
• Displacement: 0.0619 cu ft/1.752 Ltr

In the Box: SPC-12S2 Subwoofer, Manual

Dimensions:

• Overall Dimensions: 12.37 in/316 mm
• Cut Out Diameter: 11.10 in/282 mm
• Mounting Depth: 3.94 in/100 mm
• Mounting Height (w/o Grille): 0.71 in / 18mm
• Mounting Height (w/ Grille): 1.42 in/36mm
• Weight: 12 lbs

Ported Enclosure:

• External Dimensions: 24.00″ W × 15.00″H × 15.00″D
• Net Internal Volume: 2.02 ft3
• Total Internal Volume: 2.28 ft3
• Gross External Volume: 3.01 ft3
• Material Thickness: 0.75″
• Tuning Frequency: 40 Hz
• Port Area: 27.00 inch2
• Port Inlet: 2.00″W× 13.50″H
• Port Length: 16.25″
• F3 (Hz): 40

Sealed Enclosure:

• External Dimensions: 32″ W × 15.00″H × 7.00″D
• Net Internal Volume: 1.25 ft3
• Total Internal Volume: 1.31 ft3
• Gross External Volume: 1.94 ft3
• Material Thickness: 0.75″
• F3 (Hz): 51
• Qtc: 0.765

(Note: Enclosure size recommendations exclude driver and/or port displacement)
