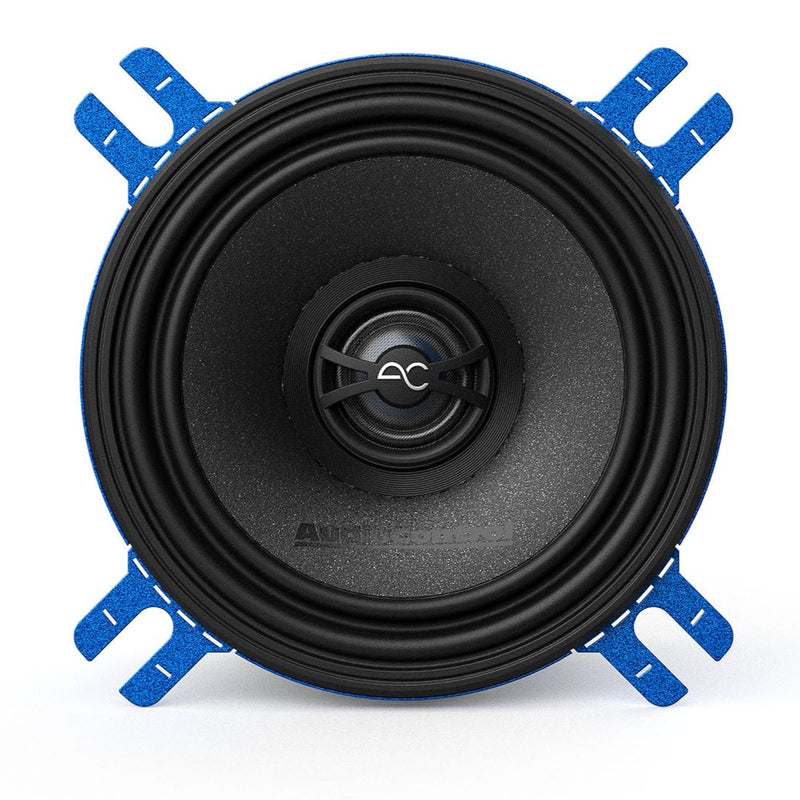

AudioControl PNW-35 PNW Series 3.5″ High-Fidelity Coaxial Speakers – 40W RMS / 80W Peak
AudioControl draws upon over 45 years of expertise in engineering top-quality audio components. Embark on an exhilarating auditory journey with AudioControl’s PNW speakers! Immerse yourself in the vibrant landscapes of the Pacific Northwest as you combine AudioControl’s legendary amplifiers with the new PNW series of speakers. Trust us, you've never experienced sound quite like this before.
The PNW line boasts an array of features:
- Edge-enhanced steel frame for added structural strength
- Black anodized voice coil former for superior heat dissipation
- Linear double-roll surround for precision cone movement
- Complex FEA-designed high-efficiency motor
- Rigid poly mica-coated cone for optimized sound reproduction
- Rear dampened hybrid silk dome tweeter for extended frequency response
- Concentric point source design for a seamless transition from midrange to tweeter
- Sonic diffuser and radiant collar for better off-axis frequency response
- High-quality mounting hardware included
Specifications:
- Crossover Type: Butterworth
- DC Resistance (Re): 1.75 ohms
- Filter Type: HP
- System Frequency (Fs) Response: 90-20k Hz
- XO Frequency: 5900 Hz
- Slope (Octave): -6 dB
- Tweeter Voice Coil Diameter: 13 mm
- Midrange Voice Coil Diameter: 25 mm
In the Box: PNW-35, Manual
Dimensions:
- Overall Diameter (w/ metal bracket): 4.44 in/ 113 mm
- Cut Out Diameter: 3.0 in/ 76.5 mm
- Mounting Depth: 1.55 in/ 39.5 mm
- Motor Diameter (w/ Cover): 2.96 in / 75.4 mm
- No Speaker Grille Applicable for PNW-35
Weight: 1 lb
SKU: AC-PNW35
UPC: 850038647445
