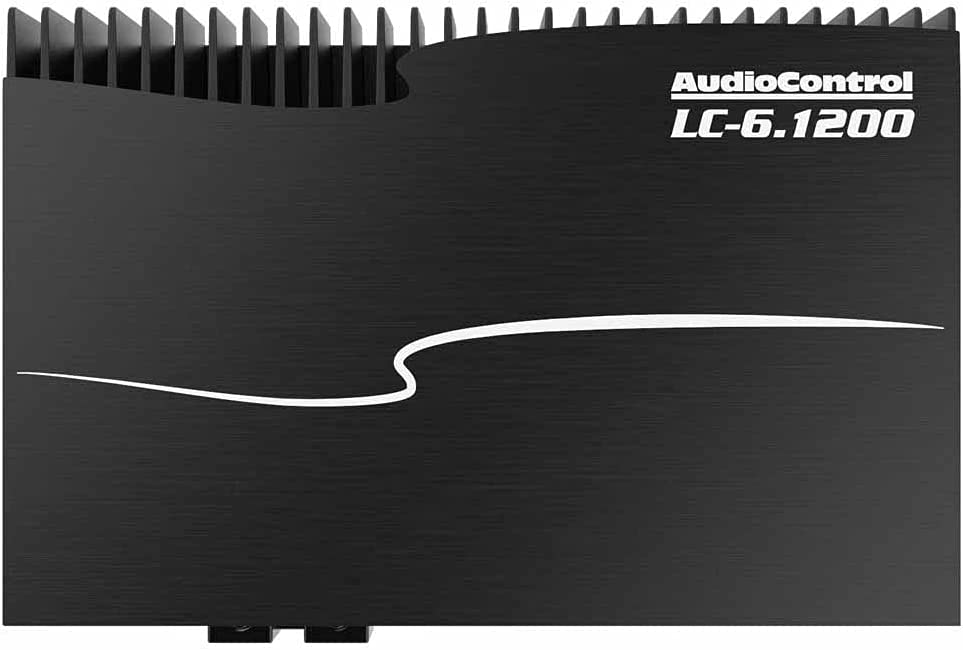

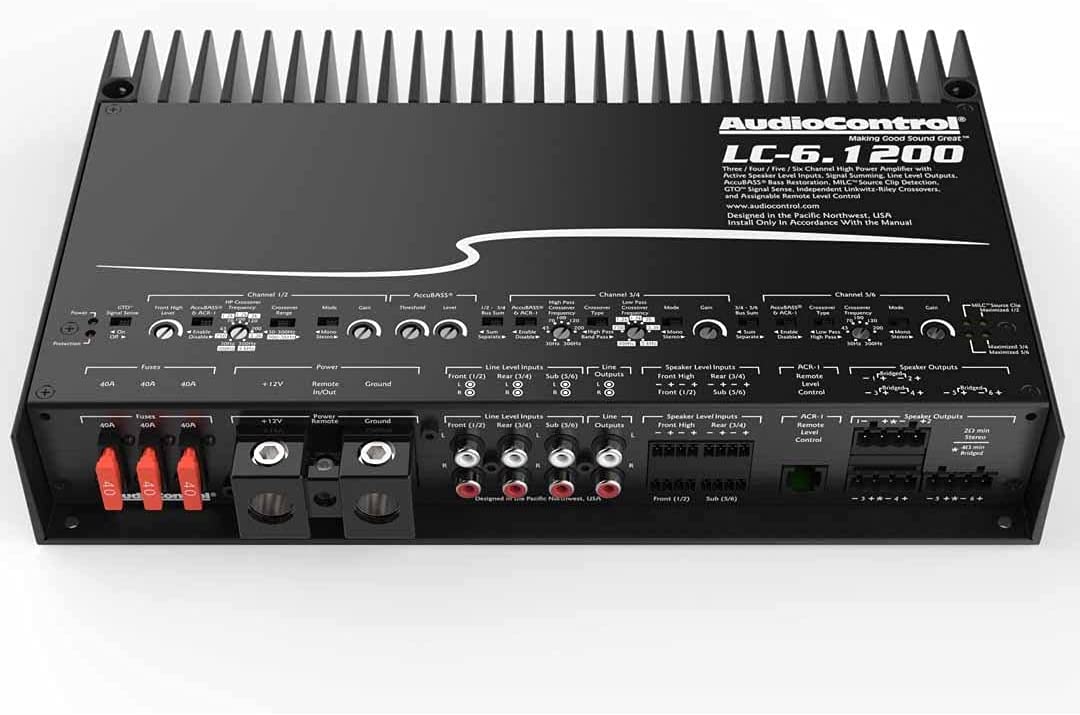

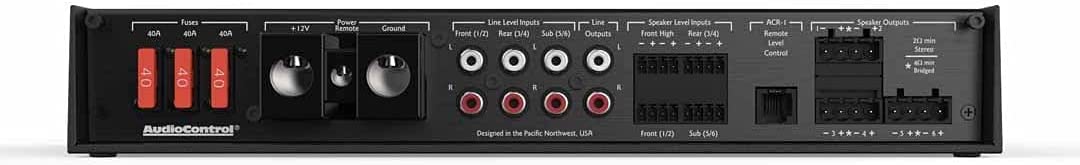

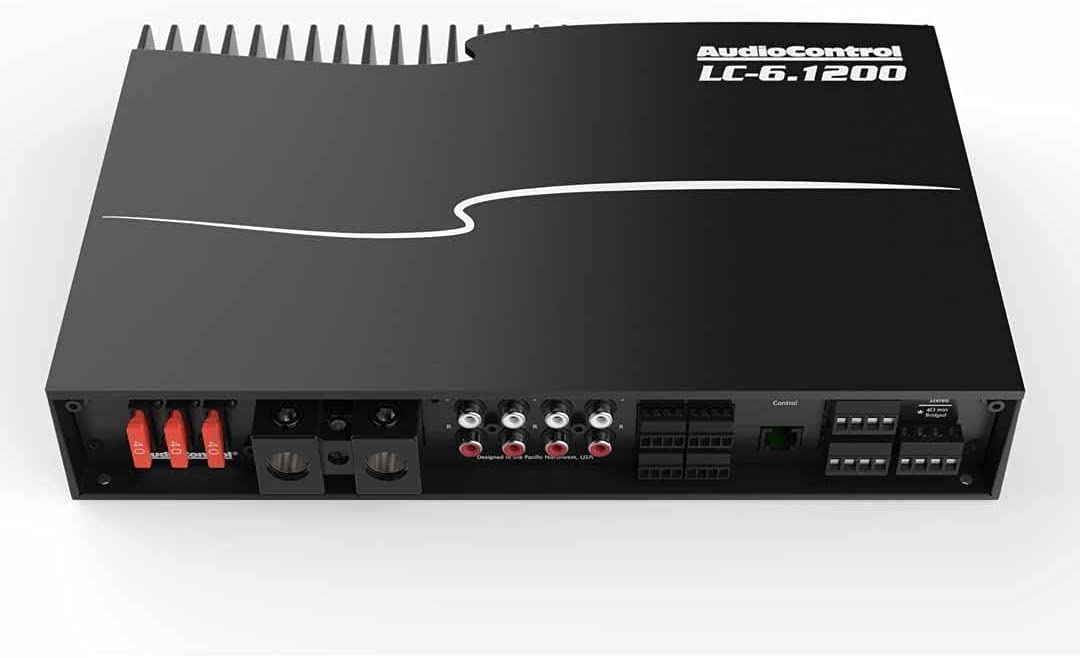

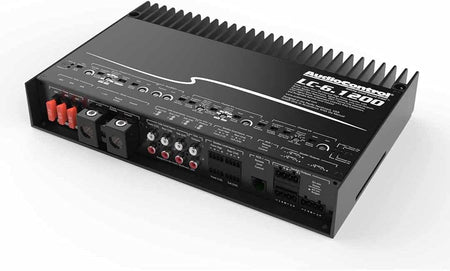

AudioControl D-6.1200 6-Channel DSP Matrix Amplifier – 1200W RMS High-Power w/ AccuBASS

The LC-6.1200 features six high-power channels that deliver up to 1200-Watts of pure audio bliss, allowing you to hear every detail of your music like never before. With Accubass technology, this amplifier ensures that your bass is always powerful and distortion-free, no matter the volume. Built to last, this amplifier features an all-aluminum chassis that is both durable and stylish. The user-friendly interface and advanced features make it easy to set up and customize your audio system. Plus, the LC-6.1200 is compatible with a variety of audio systems, ensuring that it can be integrated seamlessly into your car audio setup.

Features:

• Configurable as 6/5/4/3/2 channel amplifier
• 6 x 200 watts @ 2 ohms
• 6 x 125 watts @ 4 ohms
• 400 watts @ 4 ohms bridged
• AccuBASS® Processing
• MILCTM Maximum Input Level Control (Patent Pending)
• GTOTM Signal Sense
• 3-way Independent Linkwitz-Riley Alignment crossovers
• Summable active speaker-level inputs (8 channels) for OEM integration
• 6 preamp inputs
• 2 assignable preamp outputs
• PFM Subsonic Filter
• Optional ACR-1 assignable remote control
• Solid One-Piece Aluminum Chassis

What's in the Box: LC-6.1200, Speaker connectors, Fuses, Manual

Inputs:

Preamp Inputs: 6 balanced

Preamp Input Voltage Range: 250 mV – 8 Vrms

Speaker Level Inputs: 8

Speaker Level Input Voltage Range: 3 V – 40 Vrms

Outputs:

Rated Continuous (RMS) Power at 14.4V:

4 Ω – 125 W x 6 RMS

2 Ω – 200 W x 6 RMS

Bridged 4 Ω – 400 W RMS

Preamp Outputs: 2

Maximum Preamp Output: 8.5 V RMS

Performance:

Frequency Response: 10 Hz – 30 kHz

Signal to Noise: 102 dBa, Ref 200 W @ 2 Ohm

THD+N: < 0.1%

Minimum Power / Ground Wire Gauge: 3 AWG wire

Fuse Rating: 3 x 40 A

Crossover: 3-way Linkwitz-Riley, Adjustable From 30 Hz – 5000 Hz

Weight & Dimensions:

Dimensions: 12″W x 8.0″D x 2.1″H

Weight: 7.2lbs. (3.3kg)

UPC: 851523007201
