Building from a legacy of trusted professional audio measurement products, the DM-RTA™ brings the vital tools you rely on to one indispensable interface. Populated with every connector we could think of, and coupled with the new DM-RTA app, AudioControl’s DM-RTA helps you take your car audio, marine audio or home theater installations to new levels of perfection and control.

The DM-RTA connects to a Mac or PC via USB, or to a phone or tablet via Bluetooth using the AC-BT24 Bluetooth Streamer/Programmer (available separately).

Real time analyzer and multi-test tool features:

Test and Measure Any Signal
Balanced Line Level Inputs and Outputs
Unbalanced Line Level Inputs and Outputs
Speaker Level Inputs (handles up to 400 watts)
Microphone Input with 48V Phantom Power (microphone sold separately)
Microphone presets (for CM-20, CM-10 & C550H)
Digital and USB Outputs
Connect to PC/Mac, Phone or Tablet
Option Port for Bluetooth Connectivity
Battery Powered and Compact for Portability
DM-RTA app available in downloads for Mac/PC, or…

Inputs:

1 x Balanced (Input Impedance 3.24kΩ)
1 x Unbalanced (Input Impedance 3.24kΩ)
1 x Microphone (Input Impedance 10kΩ)
1 x Speaker Level (Input Impedance 16.24kΩ)
Max Low Level Input Voltage: 8 Vrms
Max High Level Input Voltage: 40 Vrm

Outputs:

1 x Balanced (Output Impedance: 51Ω)
1 x Unbalanced (Output Impedance: 51Ω)
1 x Coax Digital (Output Impedance: 75Ω)
1 x Toslink
1 x USB
Max Output Voltage from Signal Generator: 5 Vrms / 7 V Peak

General:

Power Supply:
Battery Life: ~5 Hours

Weight and Dimensions:

Dimensions: 8”W x 4.8”D x 2.4”H
Weight: 2.6lbs (1.2kg)

IN THE BOX: DM-RTA, USB Cable, Power Supply, Manual,

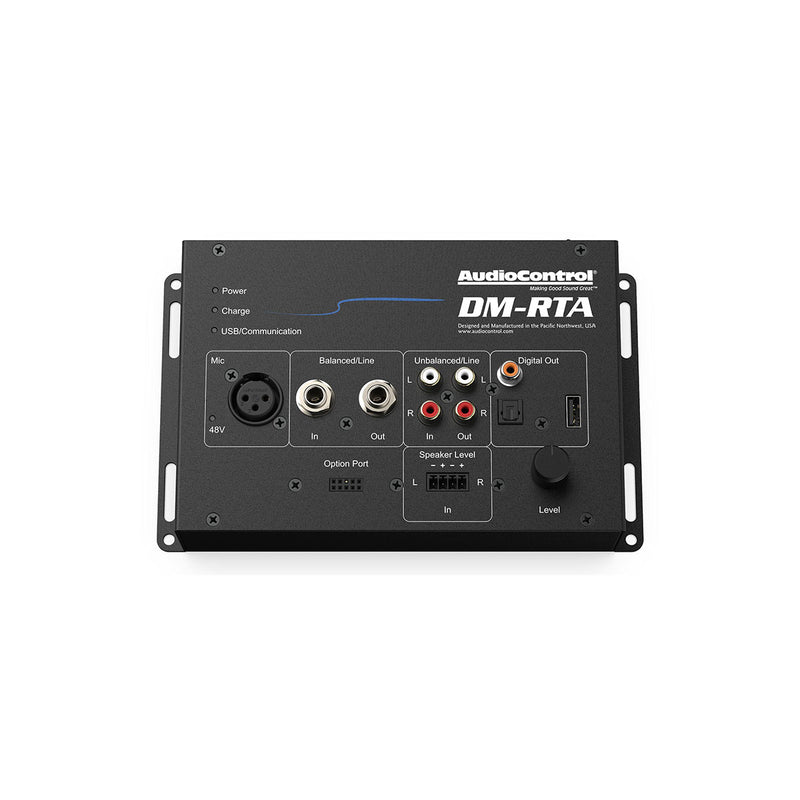

Audio Control DM-RTA Real Time Analyzer and Multi-Test Tool
