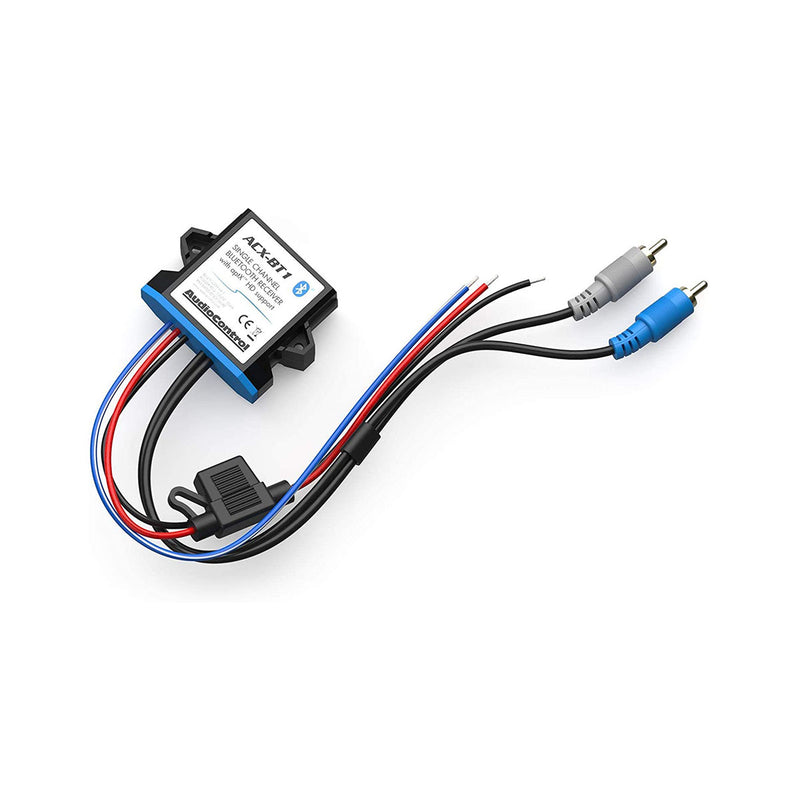

AudioControl ACX-BT1 All-Weather Bluetooth Streamer

All-Weather Bluetooth Streamer The AudioControl ACX-BT1 is the ultimate solution for giving your audio system Bluetooth connectivity. The ACX-BT1 features the latest Bluetooth 4.1 and aptX HD support delivering 24-bit clarity lower noise faster initial connection and more reliable streaming from a greater distance. The ACX-BT1 is IPX5 rated for marine and motorsports applications so it will withstand the rigors of all weather conditions including as a standalone (no head unit) solution common to side-by-sides jet skis and more. Installers will appreciate the unique remote turn-on output circuit that triggers downstream amplifier(s) only when audio is being played over the Bluetooth connection.

FEATURES:

• Bluetooth: Featuring Bluetooth version 4.1, the ACX-BT1 allows for high-definition low-latency audio streaming  from a Bluetooth enabled playback device. The interface supports aptX HD, for 24-bit/48kHz audio streaming from devices with aptX codec, and features a signal-to-noise ratio of 95dB. The ACX-BT1 has a maximum data transfer rate of up to 3 Mbps with typical rates at approximately 1.6 Mbps. Bluetooth range is up to approximately 33 feet.

  Note: The ACX-BT1 does not support Bluetooth hands-free phone calls.

• IPX5: The ACX-BT1 carries an IPX5 all-weather rating, making it ideal for both marine and powersports applications, such as in UTVs and ATVs, side-by-sides, jet skis, boats, and more.

• Remote Output: The ACX-BT1 includes a Remote Out wire that can be used to trigger an outboard amplifier when the interface starts receiving Bluetooth audio from your device.

• Mounting: The AudioControl Bluetooth interface features two mounting tabs that can be used to screw the module into place or be held with wire-ties (hardware sold separately). The included 3M adhesive backing lets you attach the module to a clean flat surface.

• Wiring: The ACX-BT1 includes built-in 17" wire harness providing the audio output along with power, ground, and remote out. The Bluetooth module draws approximately 35mA of current.

  • Red (inline 2A fuse): Attaches to vehicle +12VDC switched or ignition power.
  • Black: Chassis ground.
  • Blue: Remote turn-on output. Provides a +12VDC/20mA output.
  • RCA: Audio output.

WHAT'S IN THE BOX:

• Bluetooth receiver w/attached 17" wire harness (inline 2A mini-ATO fuse) and 3M adhesive backing
• Wire legend on box
• User Guide

UPC: 851523007928
