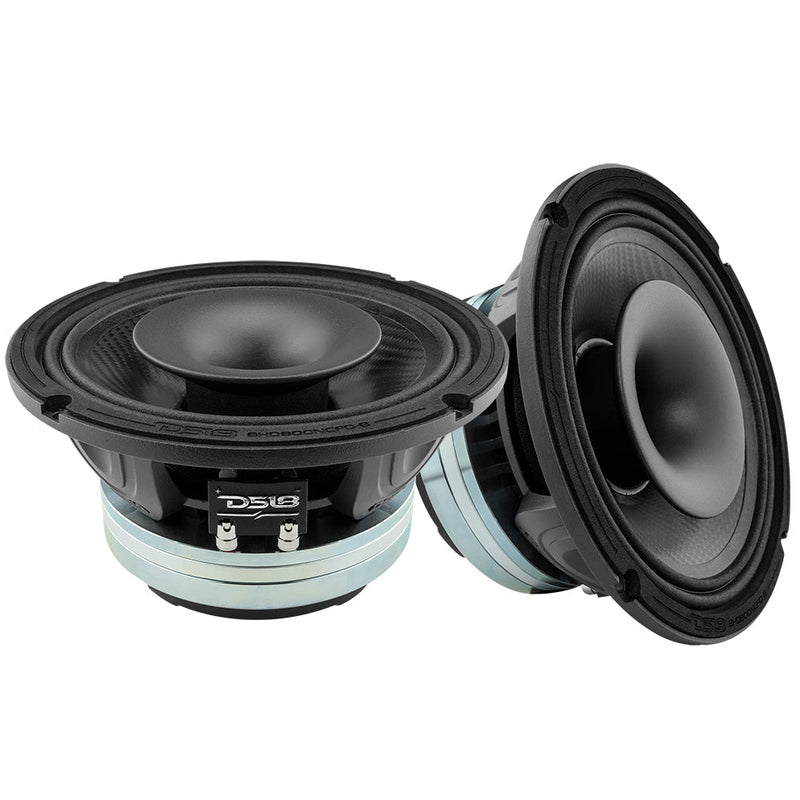

DS18 8HD800NCFD-8 8 Inch Water Proof Carbon Fiber Mid Bass and Driver Coaxial Hybrid Neodymium Magnet 8-Ohm DS18

Out of stock
SKU: DS-8HD800NCFD-8
(0)
Brand New with Manufacturer Warranty
Authorized Dealer
Free Shipping
Secure Payments
Regular price $799.95 USD

DS18 8HD800NCFD-8 – 8” Water-Resistant Carbon Fiber Mid-Bass with Built-in Coaxial Hybrid Driver (800W)

The 8HD800NCFD-8 combines an 8" mid-bass speaker with a built-in compression driver for full-range, high-powered sound. With 800W max power, 105dB sensitivity, and a wide 40Hz–20kHz frequency response, it delivers loud, clear audio.

Built with water-resistant carbon fiber cones, it's perfect for motorcycles, boats, and vehicles. Four terminals allow flexible wiring, and its rugged design ensures durability in any environment.

Features:

  • 8" Hybrid Mid-Bass w/Coaxial Driver
  • RMS Power: 400 Watts(800 Watts Peak)
  • Impedance: 8 Ohm(W) 8 Ohm(D)
  • Neodymium Magnet
  • Water Resistant Carbon Fiber Cone
  • 105dB

Specifications:

SKU
8HD800NCFD-
Nominal Diameter
8" / 203mm
Nominal Impedance (Woofer / Driver)
8 / 8 Ohms
RMS Power Handling (Combined)
400W
MAX Power Handling (Combined)
800W
Sensitivity (1w/1m) (Combined)
105dB
Frequency Response (Combined)
40Hz-20KHz
Number of Ways
2
Sold in Pair or Single
Singles
Grill Included
No

Woofer Specifications:

RMS Power Handling
250W
MAX Power Handling
500W
Sensitivity (1w/1m)
96.5dB
Frequency Response
40Hz-10KHz
Recommended Band-Pass Crossover
80Hz-900Hz
Voice Coil Diameter
2.6" / 66mm
Voice Coil Former Material
KAPTON
Winding Material
CCAW
Cone Material
Water Resistant Carbon Fiber
Surround Material
Treated Cloth
Basket Material
Die Cast Aluminum
Basket Color/Finish
Black Sandblasted
Magnet Material
Neodymium
Magnet Size
145x8mm

Thiele & Small Parameters:

Equivalent Volume - Vas
7L / 0.247ft3
Excursion (one way) - Xmax
3.5mm
Free Air Resonance - Fs
105Hz
Mechanical Factor - Qms
22.78
Electrical Factor - Qes
0.4
Total Factor - Qts
0.4
Mechanical Mass - Mms
22.26g
Mechanical Compliance - Cms
0.10mm/N
BL Factor - BL
14.5
Voice Coil Inductance - Le
0.12mH
Cone Area - Sd
219.04cm2
DC Resistance - Re
5.2 ohms
Mechanical Mass w/o air - Mmd
24.32g

Driver Specifications:

AES Power handling
150W
Program Power Handling
300W
Sensitivity (1w/1m)
100.5dB
Frequency Response
315Hz-20KHz
Recommended Hi Pass Crossover
900Hz
Voice Coil Diameter
3" / 76.2mm
Voice Coil Former Material
KAPTON
Winding Material
CCA
Diaphragm Material
Titanium with Polymer Edge
Magnet Material
Neodymium
Horn Diameter
4.13" / 105mm

Speaker Measurement:

Overall Diameter
8.24" / 209.5mm
Overall Depth
5" / 127.8mm
Front Mount Baffle Cutout
7.2" / 183mm
Mounting Depth
4.63" / 117.8mm
Motor Diameter
5.7" / 145mm
