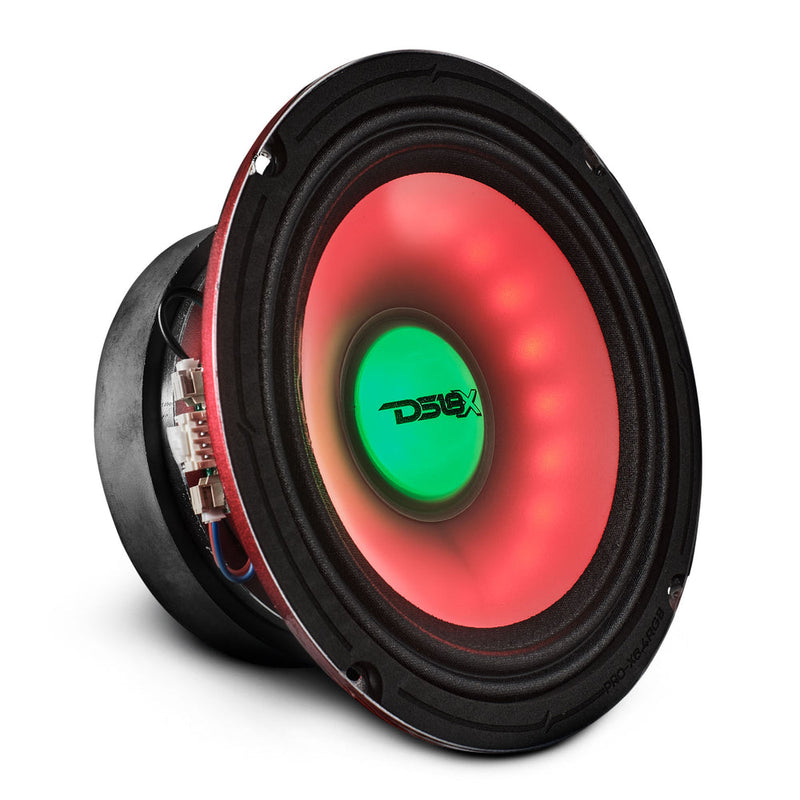

6.5" Mid-Range Loudspeaker with Dual RGB LED For Cone & Dustcap 250 Watts 4-Ohm

Out of stock
SKU: DS-PRO-X6.4RGB
(0)
Brand New with Manufacturer Warranty
Authorized Dealer
Free Shipping
Secure Payments
Regular price $69.95 USD

6.5" Mid-Range Loudspeaker With Dual RGB LED For Cone & Dustcap

Get LOUD with DS18’s PRO-X6.4RGB, a 6.5-inch loudspeaker engineered for excellence. This loudspeaker combines high-power audio with a striking visual flair, making it the perfect upgrade for competitive and casual systems. The PRO-X6.4RGB handles up to 250W RMS and peaks at 500W, guaranteeing distortion-free sound even at high volumes. Its wide frequency response from 100Hz to 8kHz captures rich mid-range tones, while the exceptional sensitivity of 94dB guarantees loud, detailed audio with minimal power input. The 1.5-inch voice coil with Kapton former and CCAW winding enhances durability and precision, while the glossy red steel basket ensures structural integrity. Its rugged ferrite magnet weighing 30 oz boosts reliability, making it perfect for any setup.

What sets the PRO-X6.4RGB apart is its customizable LED lighting system, offering both dual and single-color modes suitable for wet or dry environments. The PRO-X6.4RGB has a translucent polypropylene cone and dustcap integrated with RGB LEDs for dynamic lighting effects that can transform any show build from runner up to first place. This feature allows you to tailor your setup's aesthetics to your liking. This speaker is perfect for every enthusiast. Its compact design with a 4-ohm impedance and 3" mounting depth ensures effortless integration into various setups.

Specifications:

Nominal Diameter: 6.5" / 165.1mm
Nominal Impedance: 4 ohm
RMS Power Handing: 250w
MAX Power Handing: 500w
Sensitivity (1w/1m): 94dB
Frequency Response: 100Hz-8KHz
Recommended HI Pass Crossover: 120 Hz
Sold in Pair or Single: Single
Grill Included: No
Water Resistant: IP65 rating

Motor:

Voice Coil Diameter: 1.5" / 38.6mm
Voice Coil Former Material: Kapton
Winding Material: CCAW
Cone Material: Translucid PP with RGB LED
Bullet Material: N/A
Dustcap Material: Translucid PP with RGB LED
Surround Material: Cloth
Basket Material: Steel
Basket Color/Finish: Glossy Red
Magnet Material: Ferrite
Magnet Weight: 30 Oz
Displacement Volume: 0.034L / 0.0012ft3

Thiele & Small Parameters:

Equivalent Volume Vas: 4.4L / 0.15ft3
Excursion (one way) Xmax: 6mm
Free Air Resonance Fs: 100Hz
Mechanical Factor Qms: 7.34
Electrical Factor Qes: 0.74
Total Factor Qts: 0.67
Mechanical Mass Mms: 13.4g
Mechanical Compliance Cms: 0.16mm/N
BL Factor BL: 6.48
Voice Coil Inductance Le: 4.22mH
Cone Area Sd: 138.93 cm2
DC Resistance Re: 3.4 ohms
Mechanical Mass w/o air Mmd: 10.2g

Measurement:

Overall Diameter: 6.64" / 169mm
Overall Depth: 3.3" / 84.6mm
Front Mount Baffle Cutout: 5.7" / 145mm
Mounting Depth: 3" / 78mm
Motor Diameter: 4.7" / 120mm
