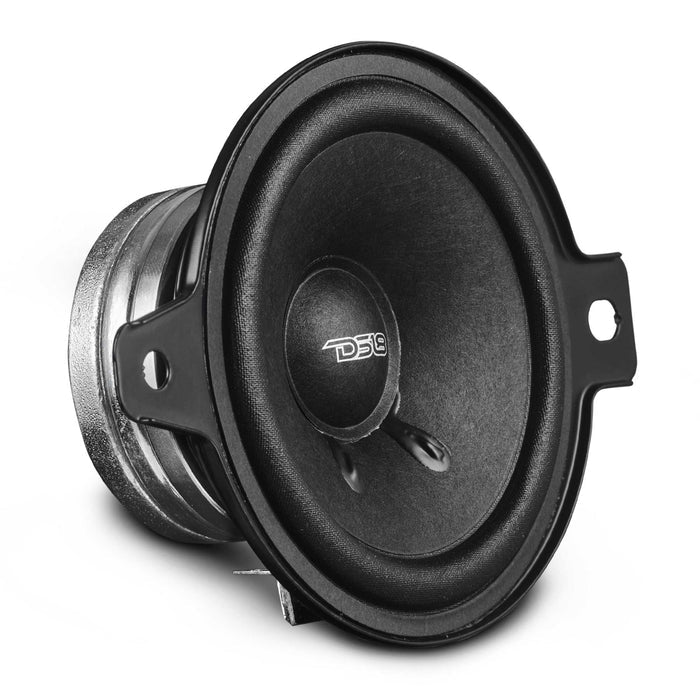

DS18 3" OEM Dashboard Loudspeaker 4-Ohm with Neodymium Magnet
3” OEM Dashboard Loudspeaker With Neodymium Magnet
Upgrading is simple with DS18’s 3D160NO-4, a 3" dashboard loudspeaker designed to fit seamlessly into OEM dashboards, for a precise upgrade without the need for modifications. Crafted with a high-performance neodymium magnet, the 3D160NO-4 utilizes powerful magnetic fields to ensure crisp and clear sound reproduction.
DS18’s 3D160NO-4 is engineered for perfect audio experiences. Its durable paper cone and cloth surround enhance sound clarity while ensuring long-lasting durability, even under the most challenging automotive conditions. With a remarkable RMS power handling of 80W / MAX power handling of 160W and impressive sensitivity of 93dB, this speaker offers high output with minimal power input, delivering dynamic and distortion-free audio.
Covering an extensive frequency range from 150Hz to 20KHz, this wide frequency car speaker promises balanced highs and mids that will transform your driving soundtrack. The KSV former (4-ohm) voice coil with CCAW winding optimizes performance, while the direct-to-cone lead connection ensures efficient energy transmission for superior sound quality.
DS18’s 3D160NO-4 is not only lightweight and compact but also incredibly easy to install with its regular spade terminal. Upgrade today and enjoy a premium audio experience that’s both powerful and precise.
Features:
- 3" Loudspeaker
- O.E.M. Dashboard Location
- RMS Power: 80 Watts(160 W Max)
- 4 Ohm
- Neodymium Magnet ~ 93dB
- Pair
Specifications:
SKU: 3D160N0-4
Nominal Diameter: 3" / 76.2mm
Nominal Impedance: 4 Ohms
RMS Power Handling: 80W
MAX Power Handling: 160W
Sensitivity (1w/1m): 93dB
Frequency Response: 150Hz-20KHz
Recommended HI Pass Crossover: 200Hz
Sold in Pair or Single: Pair
Grill Included: No
Features:
Cone Shape: Curvilinear
Speaker Terminals: Regular Spade
Motor:
Voice Coil Diameter: 0.8" / 20.4mm
Voice Coil Former Material: KSV
Winding Material: CCAW
Cone Material: Paper
Dust Cap Material: Paper
Surround Material: Cloth
Spider Diameter: 2.16" / 55mm
Leads Connection Type: Direct to Cone
Basket Material: Steel
Basket Color/Finish: Black
Magnet Material: Neodymium
Thiele & Small Parameters:
Equivalent Volume Vas: 0.95L / 0.033ft3
Free Air Resonance Fs: 164Hz
Mechanical Factor Qms: 4.8
Electrical Factor Qes: 0.61
Total Factor Qts: 0.54
Mechanical Mass Mms: 1.97g
Mechanical Compliance Cms: 0.48mm/N
BL Factor BL: 3.46
Voice Coil Inductance Le: 0.02mH
Cone Area Sd: 37.39Cm2
DC Resistance Re: 3.6 Ohms
Mechanical Mass w/o air Mmd: 1.8g
Measurement:
Overall Diameter: 3.46" / 88mm
Overall Depth: 1.75" / 44.5mm
Front Mount Baffle Cutout: 3" / 77mm
Mounting Depth: 1.6" / 40.7mm
Motor Diameter: 2" / 53mm
