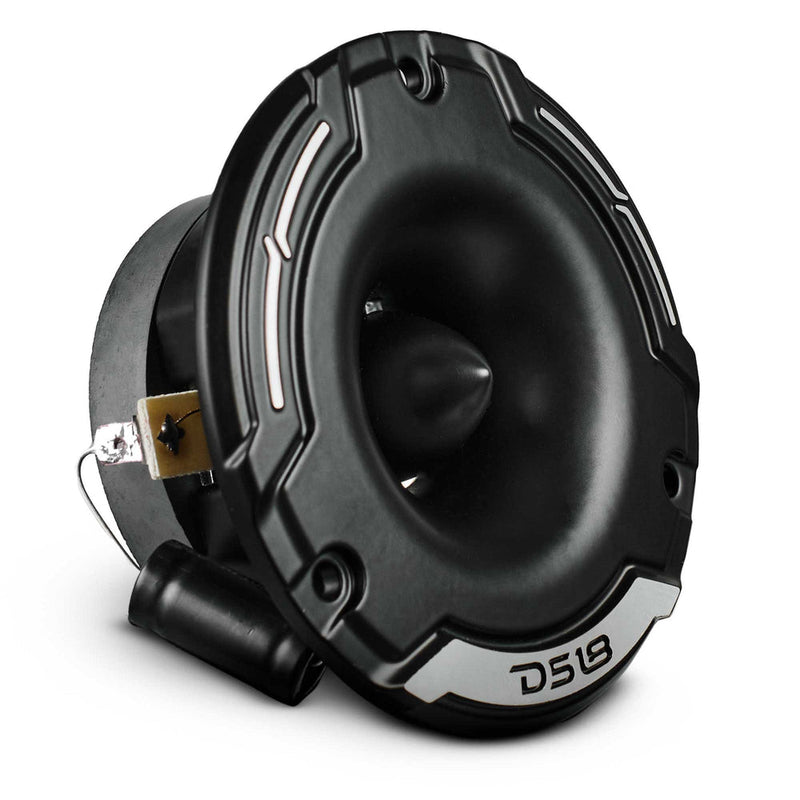

3.8" Super Bullet Compression Tweeter 4 Ohm 1" Aluminum Voice Coil
3.8" Super Bullet Compression Tweeter With 1" Aluminum Voice Coil
Take your audio experience to the next level with DS18’s PRO-TWZ1, a 3.8-inch super bullet compression tweeter designed to dominate. Delivering razor-sharp, crystal-clear treble: the PRO-TWZ1 is sure to captivate both casuals and competitors alike. Featuring an impressive 105dB sensitivity, the PRO-TWZ1 makes sure every high note cuts through noise effortlessly. Power-packed with a peak handling capacity of 200W, program power handling of 100W, and AES power handling of 50W: this high-performance tweeter is primed to handle intense audio demands without compromising on quality. The built-in bass blocker (tuned at 4.7uf) safeguards against low-frequency interference, ensuring that your highs are pristine. Its compact aluminum construction and straightforward installation make it a perfect fit for any custom car audio system, delivering dynamic frequencies from 3.15kHz to 20kHz with an aluminum diaphragm and Kapton former voice coil designed to work in perfect harmony.
Features:
- 3.8" Super Bullet Tweeter
- MAX Power: 200 Watts
- RMS Power: 100 Watts
- Impedance: 4 Ohm ~ 105dB
- Ferrite Magnet
- Pair
Specifications:
Nominal Diameter: 3.8" / 96mm
Nominal Impedance: 4 ohms
AES Power Handling: 50W
Program Power Handling: 100W
Peak Power Handling: 200W
Sensitivity (1w/1m): 105 db
Frequency Response: 3.15K-20Khz
Recommended Hi Pass Crossover: 4KHz
Sold In Pair or Single: Pair
Body / Features:
Filter (Bass Blocker): 4.7uf
Body Material: Aluminum
Body Color / Finish: Black
Faceplate Color / Finish: Black / Machined
Bullet Material: Aluminum
Motor:
Voice Coil Diameter: 1" / 25.4mm
Voice Coil Former Material: Kapton
Winding Material: CCAW
Diaphragm Material: Aluminum
Magnet Material: Ferrite
Magnet Weight: 6.5 Oz
Measurement:
Overall Diameter: 3.78" / 96mm
Overall Depth: 1.8" / 45.8mm
Front Mount Baffle Cutout: 2.76" / 70mm
Mounting Depth: 1.55" / 39.3mm
Motor Diameter: 2.76" / 70mm
| Feature | Specification |
|---|---|
| UPC | 810097265912 |
| Model | PRO‑TWZ1 |
| Configuration | 3.8″ Super bullet compression tweeter (pair) |
| Nominal Impedance | 4 Ω |
| AES Power Handling | 50 W |
| Program Power Handling | 100 W |
| Peak Power Handling | 200 W |
| Sensitivity (1 W/1 m) | 105 dB |
| Frequency Response | 3.15 kHz–20 kHz |
| Recommended High‑Pass Crossover | ≥ 4 kHz |
| Body Material & Finish | Black aluminum bullet + machined faceplate |
| Built‑in Bass Blocker | 4.7 µF capacitor |
| Voice Coil Diameter & Former | 1″ Kapton former with CCAW winding |
| Diaphragm Material | Aluminum |
| Magnet Material & Weight | Ferrite, 6.5 oz |
| Dimensions (Ø × depth) | 3.78″ × 1.8″ (96 mm × 45.8 mm) |
| Mounting Cutout Ø / Depth | Ø 2.76″ (70 mm) / 1.55″ (39.3 mm) |
| Included Items | Pair of tweeters, built-in bass blockers |
