DS18 3.5” 2-Way Full-Range Coaxial Speaker 4 Ohm
Massive Power & Clarity
Superior Performance
Advanced Technology
Premium Quality
YOU MIGHT ALSO NEED

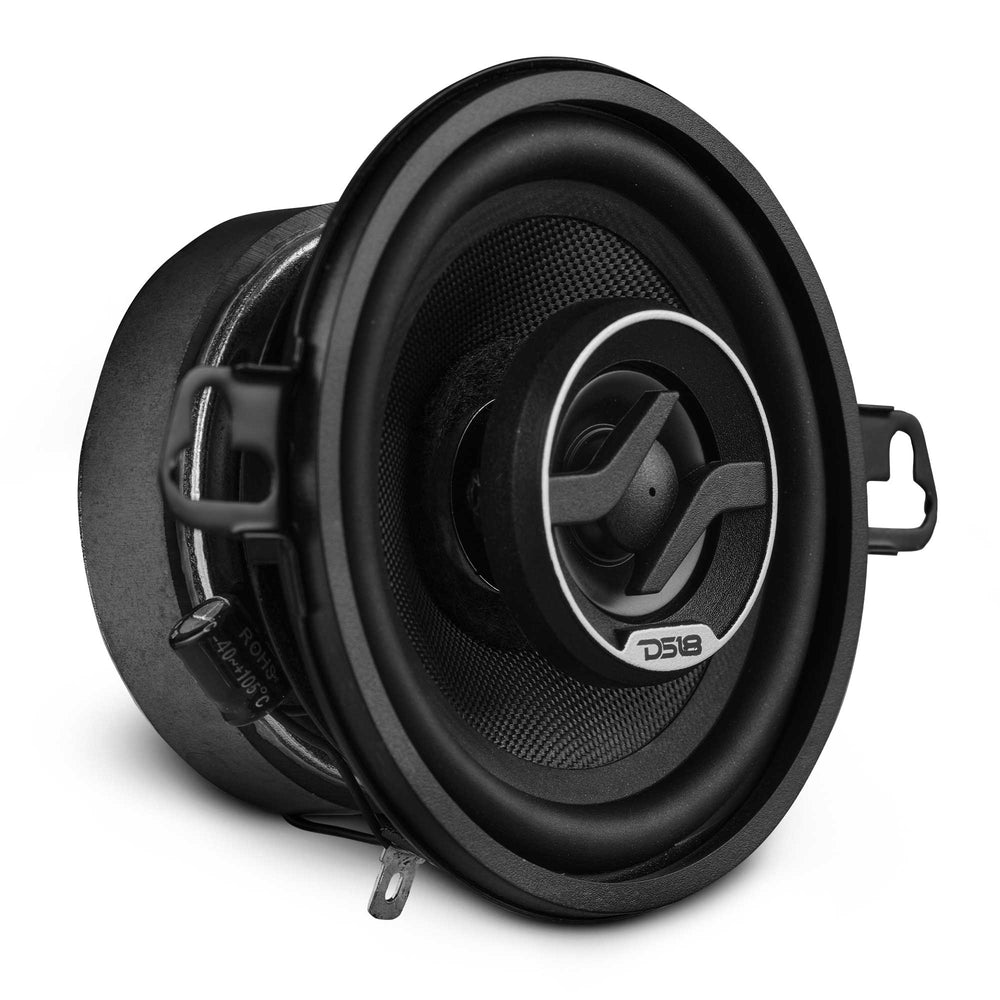

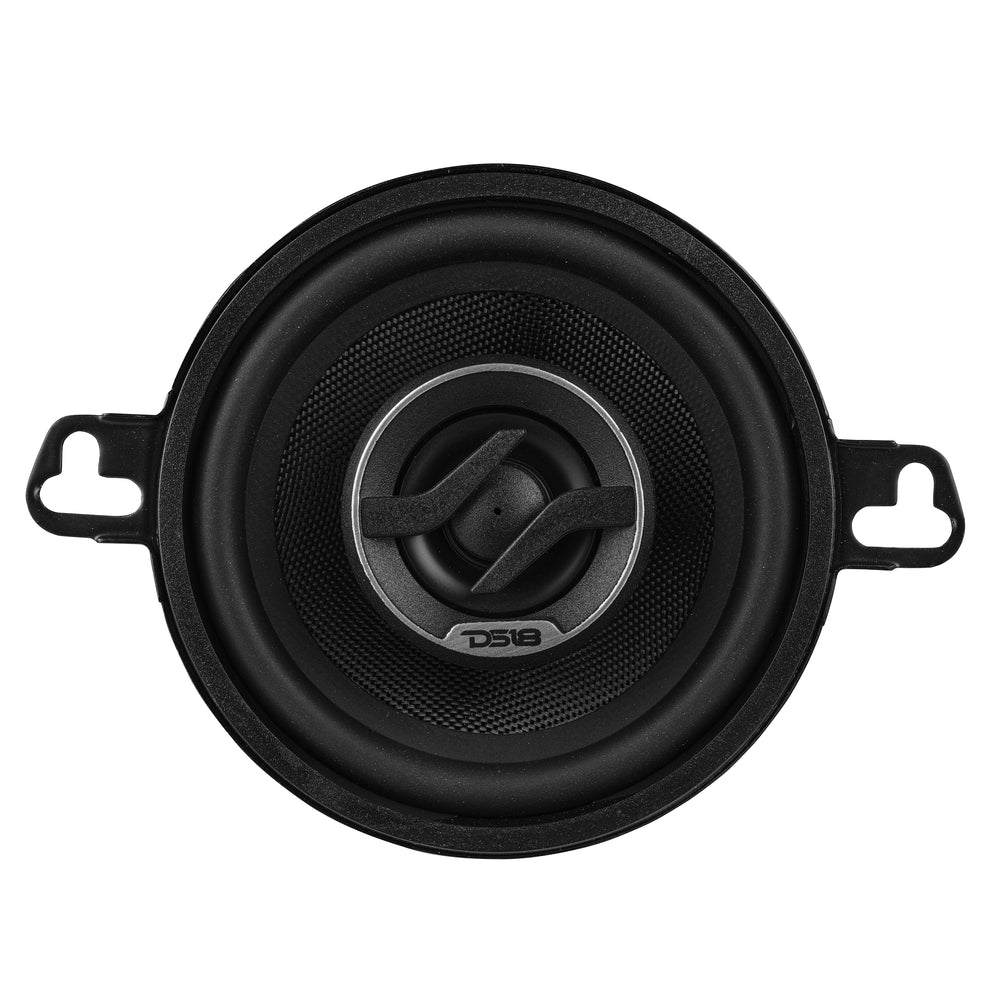

3.5” 2-Way Full-Range Coaxial Speaker
Upgrade your car’s audio with DS18’s ZXI-3542, a powerful 2-ohm 3.5-inch coaxial speaker designed for crystal-clear sound and effortless installation. This compact yet high-performance speaker delivers rich, balanced audio that will transform any custom setup.
Built for superior sound quality, the glass fiber woofer cone produces clear, natural mids, while the 1” neodymium tweeter ensures crisp, high-frequency details. With 40W RMS and 120W Max power handling, the ZXI-3542 delivers distortion-free, dynamic audio, making your music sound fuller and more vibrant.
Designed for seamless fitment, this speaker easily replaces most OEM factory-installed speakers, eliminating the hassle of complex modifications. The barium ferrite magnet enhances bass response, while the rubber surround and steel basket add durability and vibration control, ensuring long-lasting performance even in demanding conditions.
Perfect for car audio enthusiasts looking for a quick, high-quality upgrade, the DS18 ZXI-3542 combines cutting-edge design with powerful acoustics. Elevate your in-car listening experience with a speaker that delivers both clarity and durability—because your music deserves the best.
Features:
- 3.5" 2-Way Coaxial
- MAX Power: 120 Watts
- RMS Power: 40 Watts
- Impedance: 4 Ohm
- Barium Ferrite & Neodymium Magnets
- Pair ~ 87dB
Specifications:
SKU: ZXI-3542
Nominal Diameter: 3.5" / 89mm
Nominal Impedance: 4 Ohm
RMS Power Handling: 40W
MAX Power Handling: 120W
Sensitivity (1w/1m): 87dB
Frequency Response: 80Hz-20kHz
Recommended HI Pass Crossover: 120Hz
Number of Ways: 2-Way
Sold in Pair or Single: Pair
Grill Included: No
Woofer Specifications:
Voice Coil Diameter: 0.8" / 20.4mm
Voice Coil Former Material: ASV
Winding Material: EISV
Cone Material: Glass fiber
Surround Material: Rubber
Basket Material: Steel
Basket Color/Finish: Black
Magnet Material: Barium Ferrite
Magnet Weight: 172g
Thiele & Small Parameters:
Equivalent Volume Vas: 2.4L / 0.0849ft3
Excursion (one way) Xmax: 1.2mm
Free Air Resonance Fs: 106Hz
Mechanical Factor Qms: 4.39
Electrical Factor Qes: 1.034
Total Factor Qts: 0.836
Mechanical Mass Mms: 3.8g
Mechanical Compliance Cms: 1.225mm/N
BL Factor BL: 3.4
Voice Coil Inductance Le: 105.5uH
Cone Area Sd: 38cm2
DC Resistance Re: 3.7 ohm
Mechanical Mass w/o air Mmd: 2.6g
Tweeter Specifications:
Nominal Diameter: 1" / 25.4mm
Voice Coil Diameter: 0.52" / 13mm
Voice Coil Former Material: KSV
Winding Material: CCAW
Diaphragm Material: PEI
Magnet Material: Neodymium
Magnet Weight: 1.8g
Speaker Measurements:
Overall Diameter (Without Grill): 3.44" / 87.3mm
Overall Depth (Without Grill): 2.21" / 56.2mm
Front Mount Baffle Cutout: 3" / 77mm
Mounting Depth: 1.74" / 44.3mm
Motor Diameter: 2.56" / 65mm
Gross Single Unit Weight: 0.387KG
Single Unit Box Dimensions W x L x H: 240*120*70mm
Quantity of Units in Master Carton: 20
Master Carton Dimensions W x L x H: 500*365*260mm
| Parameter | Value |
|---|---|
| SKU / Model | ZXI‑3542 |
| UPC | 810097266230 |
| Speaker Size | 3.5" (89 mm) |
| Configuration | 2‑Way Coaxial |
| Nominal Impedance | 4 Ω |
| RMS Power Handling | 40 W |
| Peak Power Handling | 120 W |
| Sensitivity (1 W/1 m) | 87 dB |
| Frequency Response | 80 Hz – 20 kHz |
| Recommended Hi‑Pass Crossover | 120 Hz |
| Woofer Cone | Glass fiber |
| Tweeter Type | 1" Neodymium PEI dome |
| Magnet Type | Barium Ferrite & Neodymium |
| Mounting Depth | 44.3 mm (1.74") |
| Cut‑Out Diameter | 77 mm (3.0") |
| Sold | As a pair |
