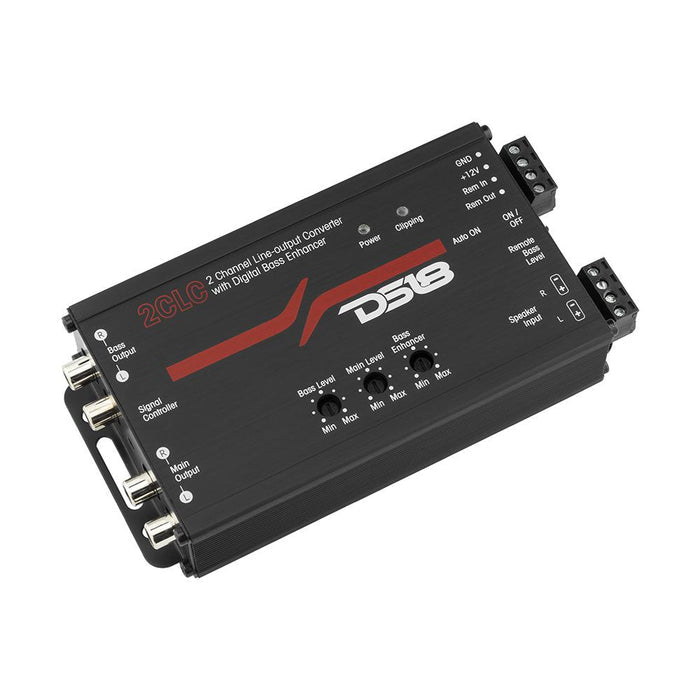

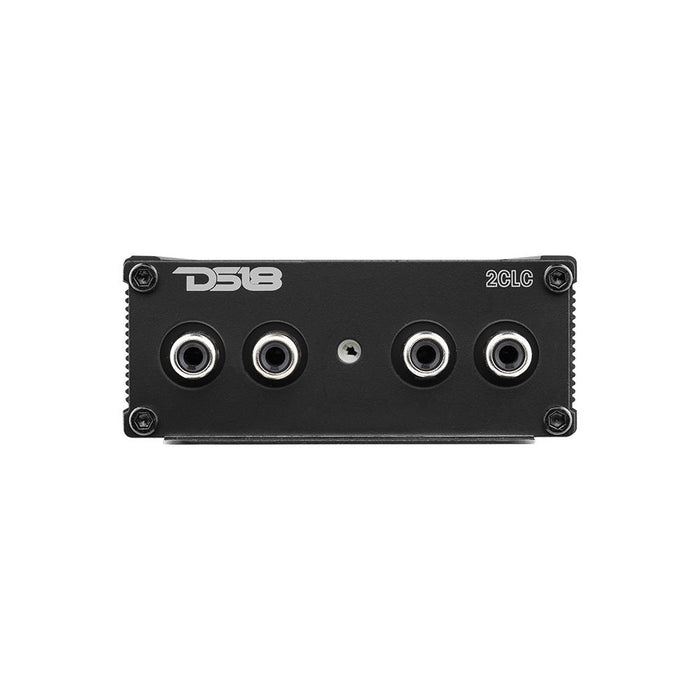

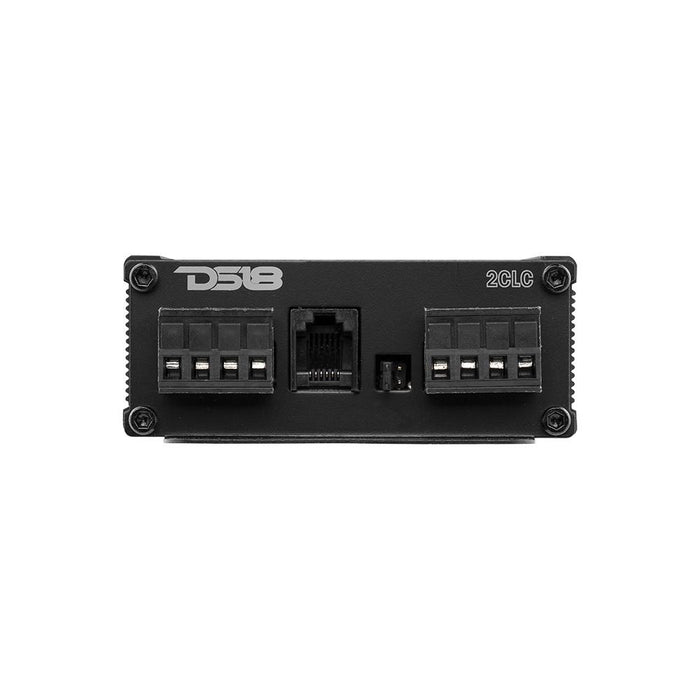

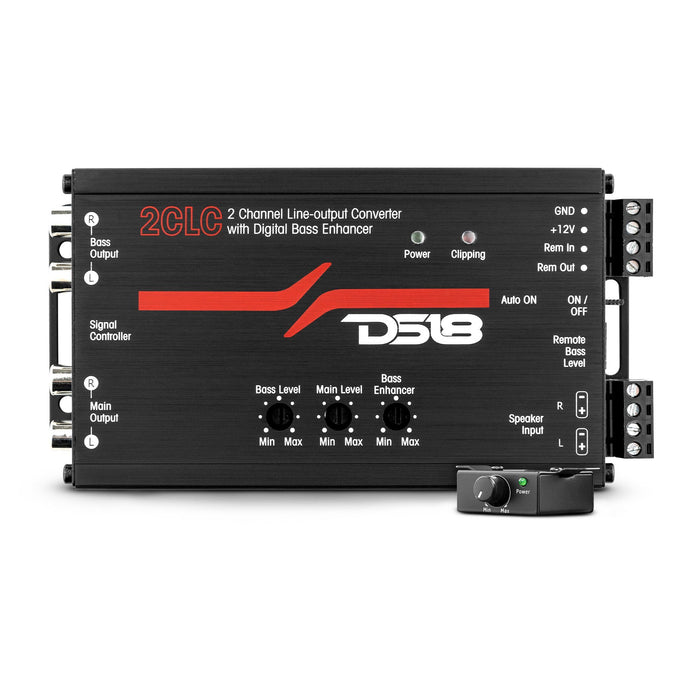

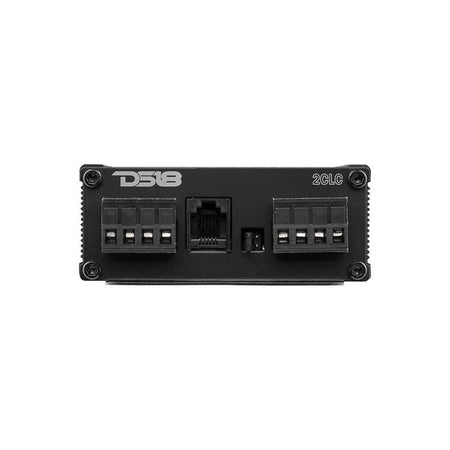

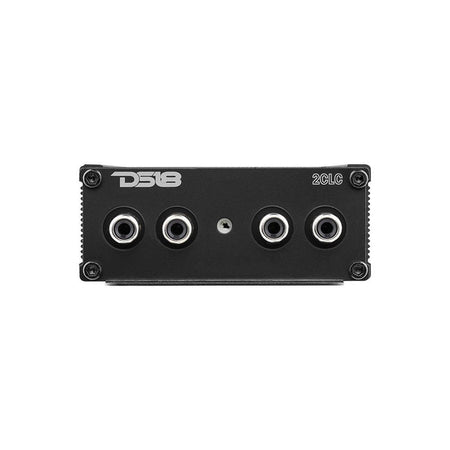

DS18 2CLC 2-Channel Line Output Converter W/ Digital Bass Enhancer DS18

In stock
SKU: DS-2CLC
(0)
Brand New with Manufacturer Warranty
Authorized Dealer
Free Shipping
Secure Payments
Regular price $107.95 USD

The DS18 2CLC is a 2-channel line output converter with a built-in digital bass enhancer, designed to upgrade factory car audio systems without replacing the head unit. It converts factory signals for use with external subwoofers and amplifiers, delivering powerful, clean bass. With adjustable knobs for main level, bass, and enhancement, users can fine-tune their sound easily. Installation is simple thanks to the selectable auto ON feature and included dash remote for real-time control. LED indicators for power and clipping keep you informed, making the 2CLC a must-have for bass enthusiasts seeking a deeper audio experience.

Features:

  • Line Output Converter
  • 2 Channel
  • Digital Bass Enhancer
  • Main and Bass Output
  • Clipping Indicator
  • Bass Knob Control

Specifications:

UPC: 810005187954

SKU
2CLC
Maximum Speaker Level Input
400 watts per channel
Maximum Preamp Output
9V rms
Dash Level Remote Control
+0dB / - 19 dB
Frequency Response
10Hz-100kHz; + 1dB
Total Harmonic Distortion
0.01%
Signal To Noise Ratio
>110dB
Input Impedance
20K Ohms
Output Impedance
150 Ohms
Power Draw
150mA
Recommended Fuse Rating
1 Amp


Features:

Speaker Level Input
2 channels
Bass Enhancer
with adjustable control of bass roll-off
Selectable Auto ON
signal sensing or remote in
Remote Output
Up to 150mA
Dual Amplifier Outputs
Main / Bass output
Level Matching Controls
Main / Bass output level knob

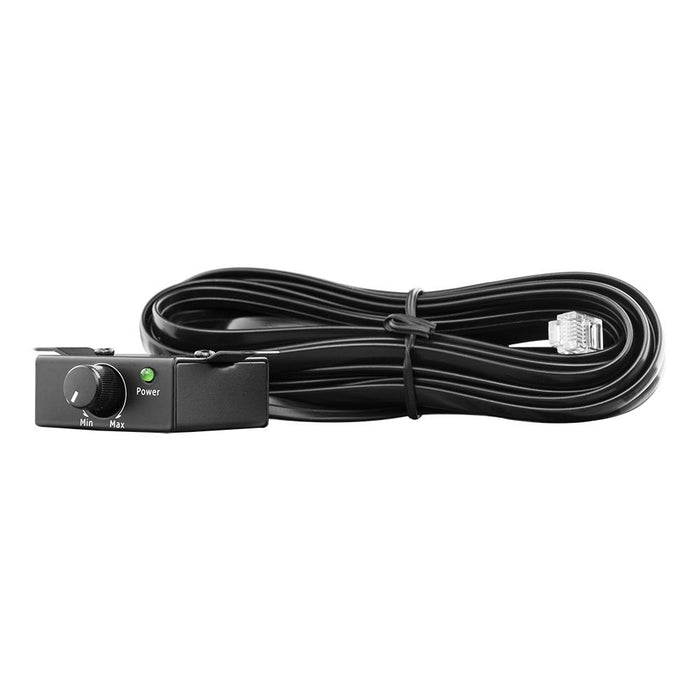

Dash Remote Level Control
included
Led Indicators
Power / Clip


Measurement:

Overall Length
6.18" / 157mm
Overall Width
3.22" / 82mm
Overall Height
1.25" / 32mm
Heatsink Length
5.39" / 137mm
Gross Single Unit Weight
11oz
Shipping Measurement L x W x H (Inches)
8.25 x 7 x 1.87
Weight (lb)
1.5
M/C Measurement L x W x H (Inches)
17.5 x 14.75 x 10.25
M/C Weight (lb)
28
M/C Qty
20 Pcs
