12" Loaded Subwoofer Ported Rugged Armored Enclosure With ZXI12.2D 1000 Watts Rms

Out of stock
SKU: DS-ZXI112LD.RG
(0)
Brand New with Manufacturer Warranty
Authorized Dealer
Free Shipping
Secure Payments
Regular price $449.99 USD

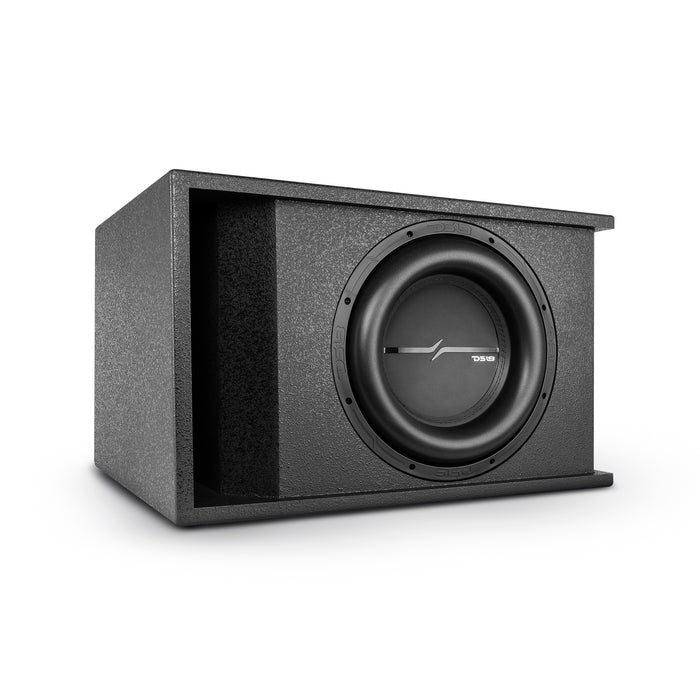

Low-Tuned Ported Rugged Enclosure With Single ZXI12.2D Subwoofer Included

Immerse yourself in powerful booming bass with DS18’s ZXI-112LD.RG!
The ZXI-112LD.RG is a precisely engineered enclosure, built to maximize the potential of it’s included subwoofer, the ZXI-12.2D. This front ported enclosure, with port dimensions of 1.96" x 13" x 23.2" (50 x 330 x 590 mm), ensures optimal air flow, minimizing distortion and maximizing the bass. Crafted from ¾” MDF and finished with rugged black bed liner, DS18’s ZXI-112LD.RG guarantees structural integrity and reduces resonance for powerful output.
At the heart of this beast lies the ZXI-12.2D, a single 12" subwoofer that embodies DS18’s perfect harmony between precision engineering and raw power. With a dual-ohm configuration, the ZXI-12.2D has an impedance of 2+2-OHM, and is ready to handle a thunderous 1000W of RMS power, and a staggering 2000W of MAX power handling. The ZXI-12.2D boasts an impressive sensitivity of 92 dB, ensuring every nuance of your favorite tracks is reproduced with impeccable clarity and detail. The ZXI12.2D allows you to experience the full spectrum of low frequency response, this masterpiece delivers a frequency response range from 15Hz to 600Hz. With these subwoofers you’ll feel every note of all your favorite songs, immersing you in the audio like never before.
As you install the ZXI-112LD.RG in your vehicle, its dimensions of 14.5" (368mm) in height, 23.15" (588mm) in width, and 17.72" (450mm) in depth seamlessly blend into your car's interior, ensuring a clean and unobtrusive installation.

SPECS

SKU
ZXI-112LD.RG
Speaker Type / Size
Single 12" Subwoofer (ZXI12.2D)
Total Impedance
1 ohm
Total RMS Power Handling
1000 W
Total MAX Power Handling
2000 W
Sensitivity (1w/1m)
92dB
Frequency Response
15-600 Hz
Recommended Lo Pass Crossover
60 HZ


SPEAKER SPECIFICATIONS

Voice Coil Diameter
3" / 76.5mm
Voice Coil Former Material
Black Aluminum
Winding Material
CCAW
Cone Material
Non Pressed Paper
Dust Cap Material
PPI
Surround Material
Foam
Basket Material
Aluminum
Magnet Material
Ferrite
Magnet Weight
224 Oz (4X56Oz)


BOX SPECIFICATIONS

Internal Volume
79L / 2.8ft3
Port Tune
29Hz
Load Configuration
Parallel (Dual 2ohm)
Box Type
Front Ported
Box Material
3/4" / 19mm MDF
Finish Material
Black bed liner Paint
-3Db Dropping Point
24Hz


MEASUREMENT

Height
14.5" / 368mm
Width
23.15" / 588mm
Depth 1
17.72" / 450mm
Depth 2
19.7" / 500mm
Port Dimensions (W/H/Length)
1.96" x 13" x 23.2"
